Diagram Set SD360 (Starting System)
Diagram Set SD360 (Starting System)

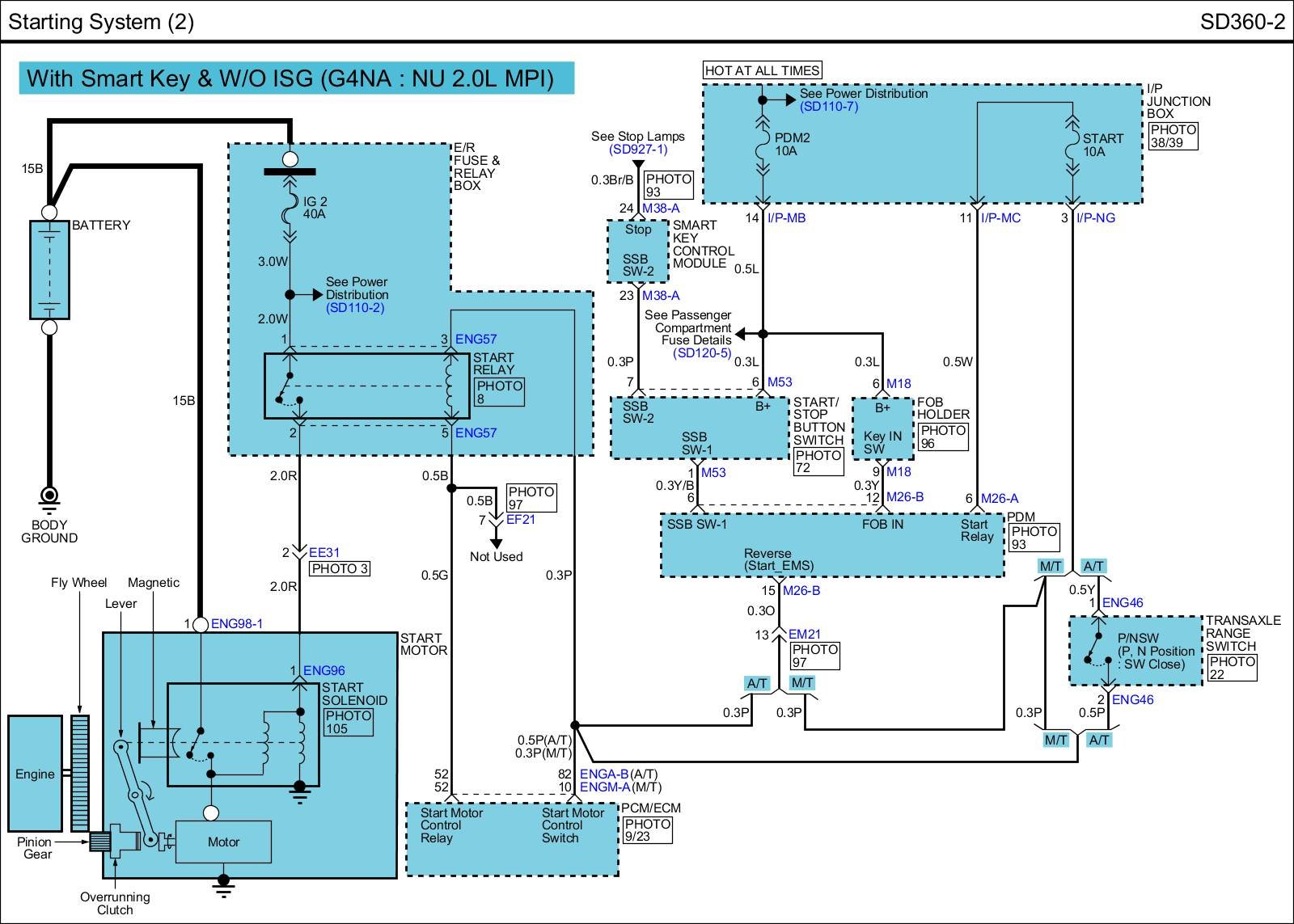

SD360-2 Starting System (2):

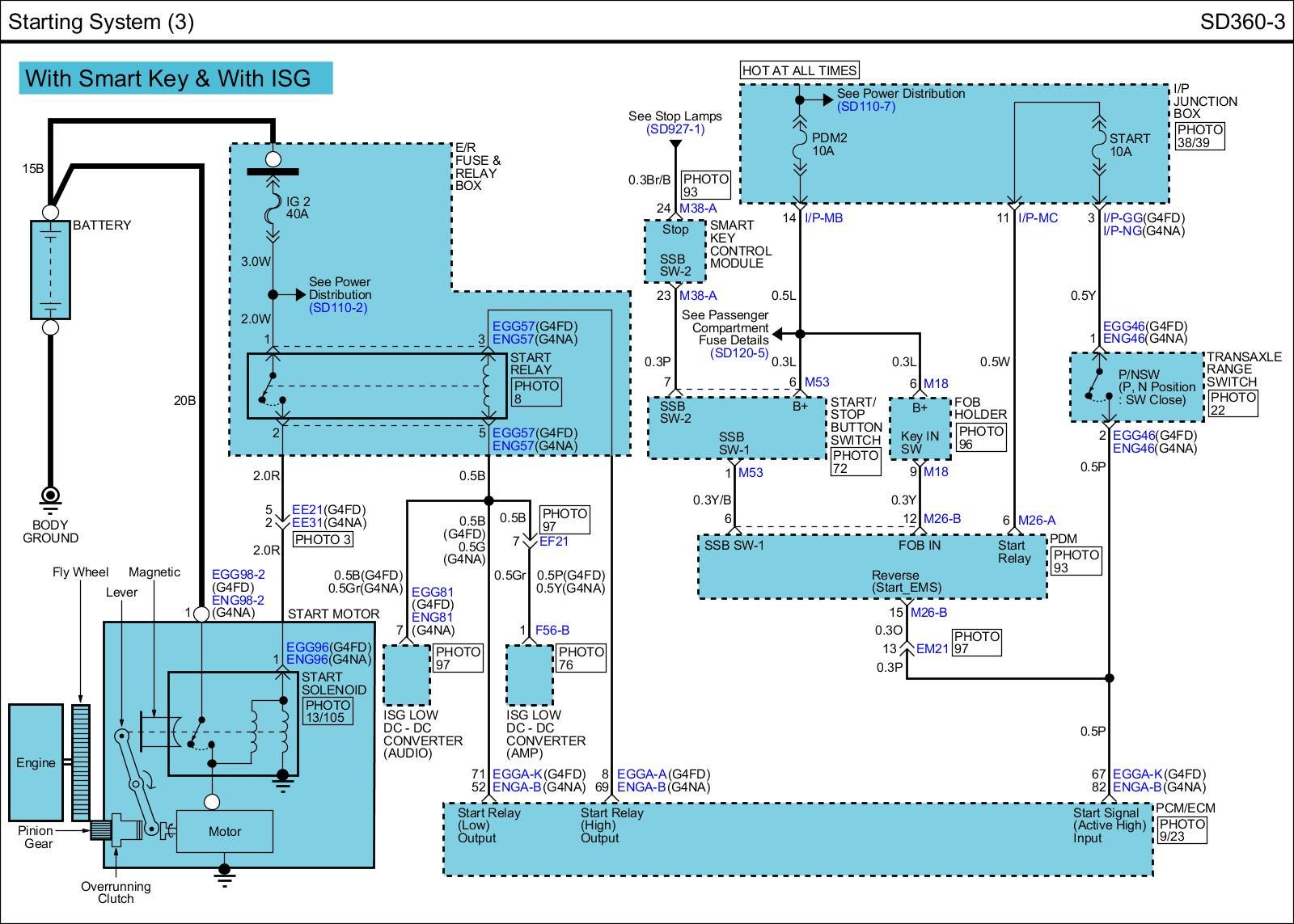

SD360-3 Starting System (3):

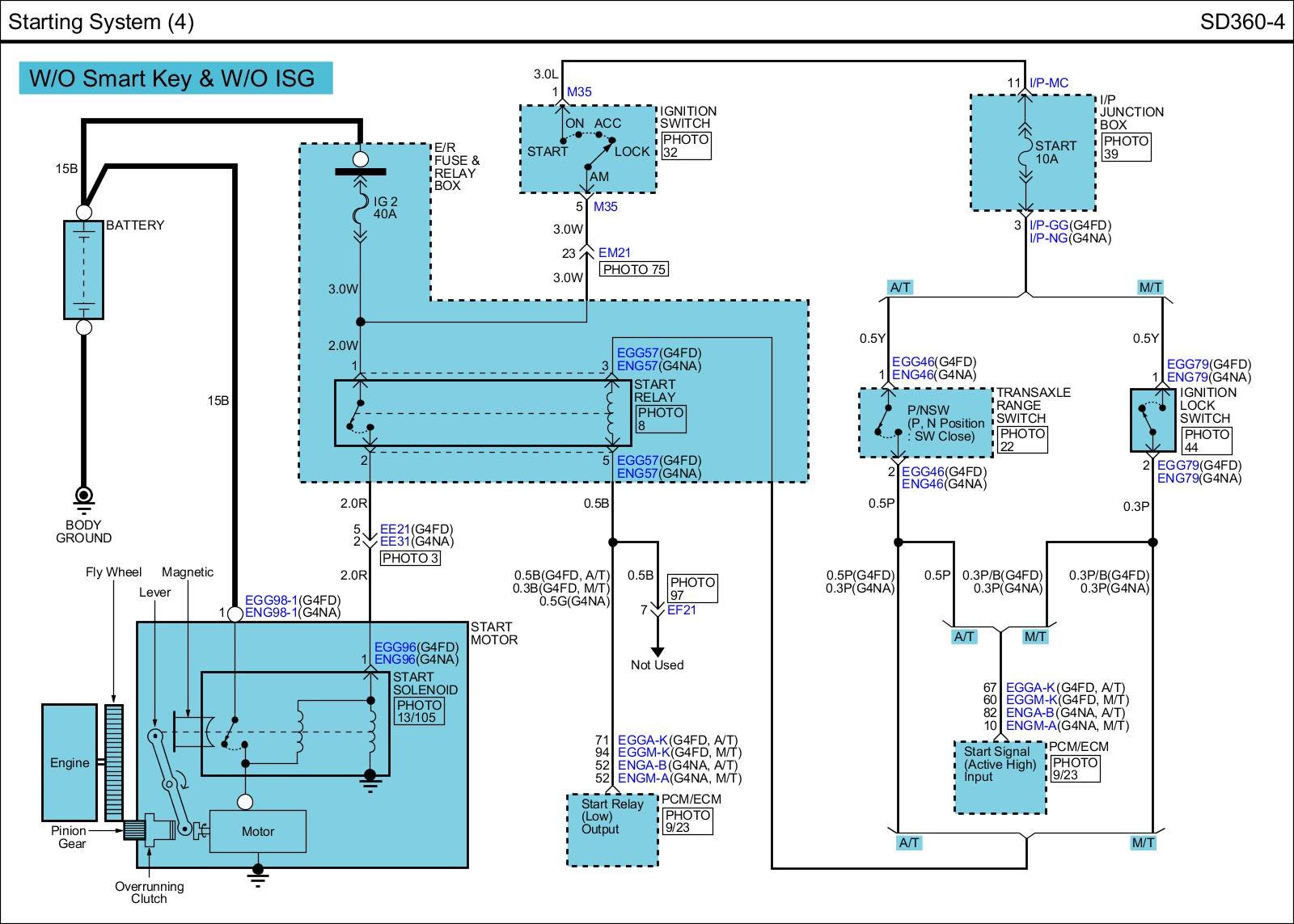

SD360-4 Starting System (4):

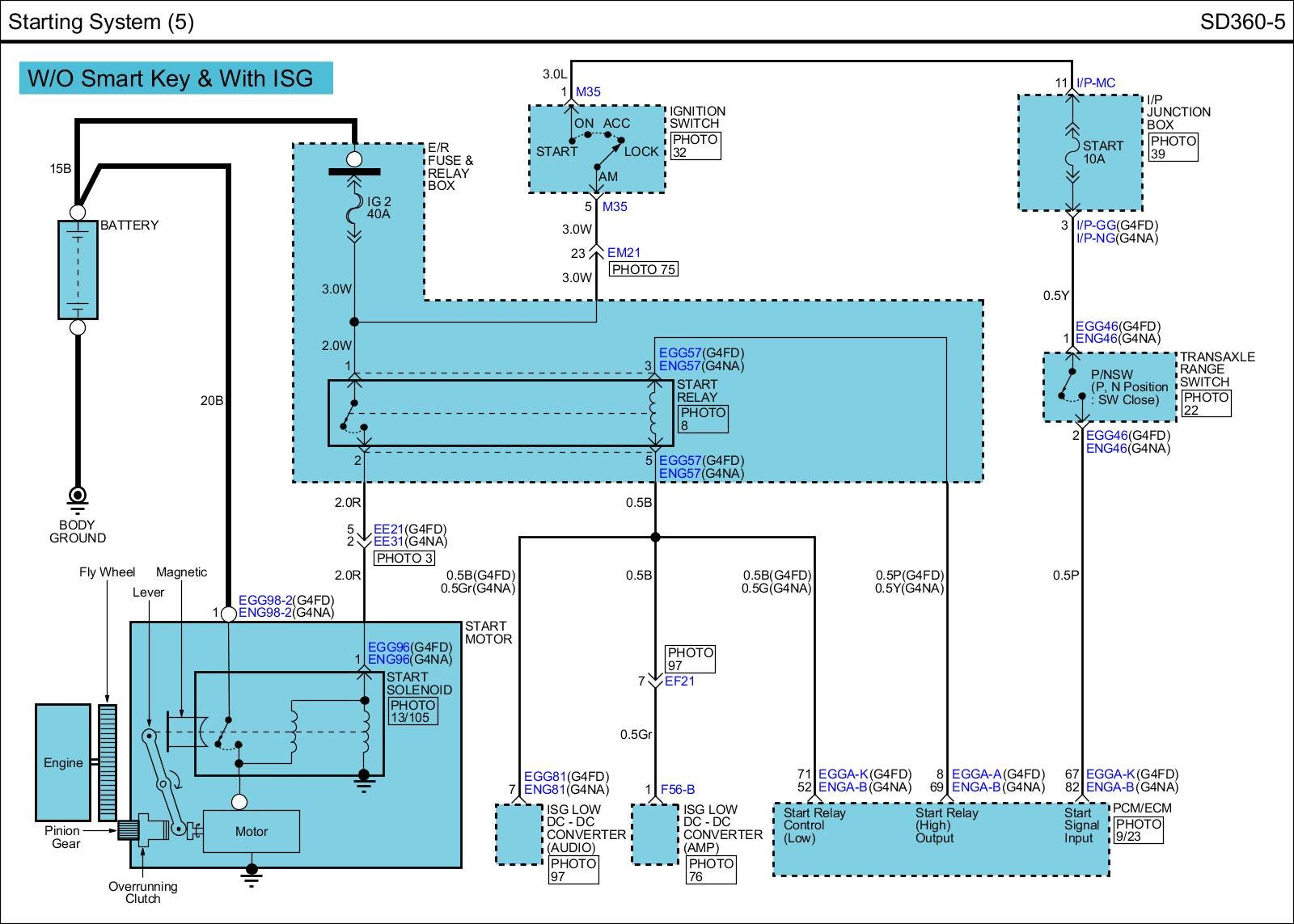

SD360-5 Starting System (5):
