Home >> Kia >> 2012 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Circuit Diagram

Circuit Diagram

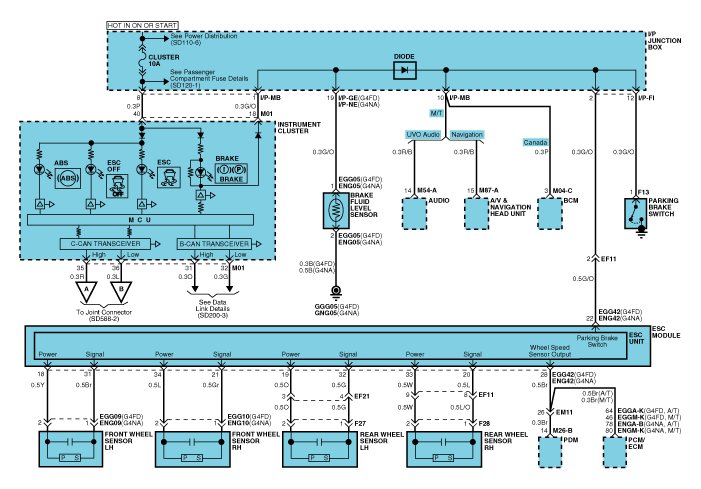

Circuit Diagram - ESC (1)

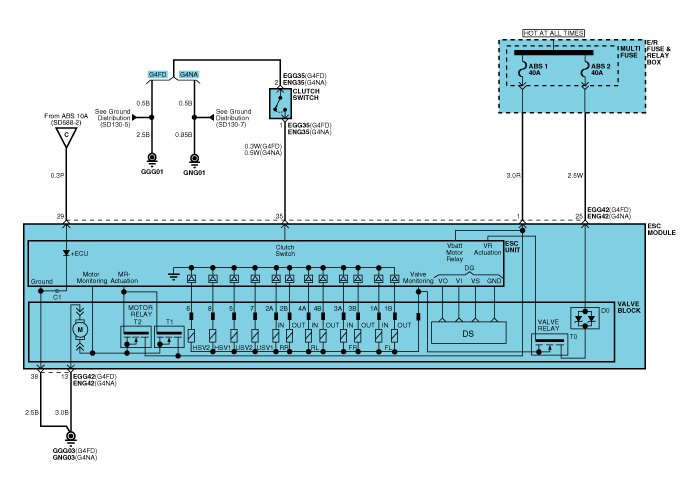

Circuit Diagram - ESC (2)

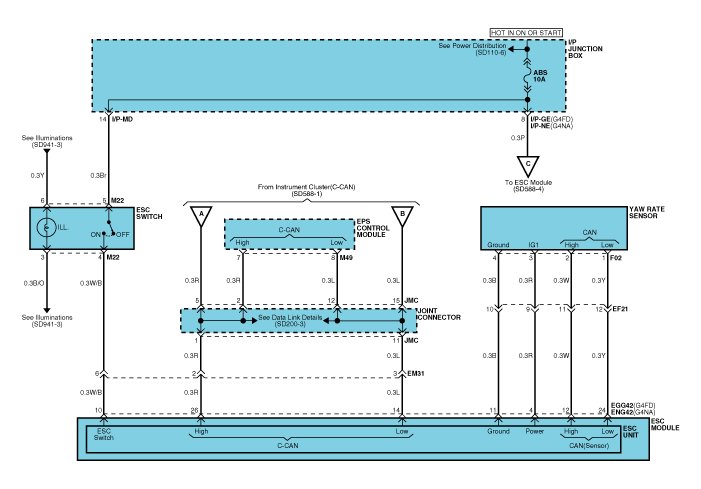

Circuit Diagram - ESC (3)

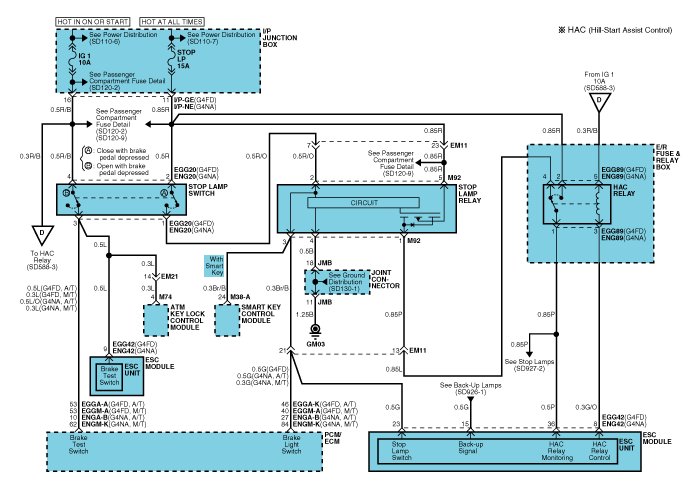

Circuit Diagram - ESC (4)

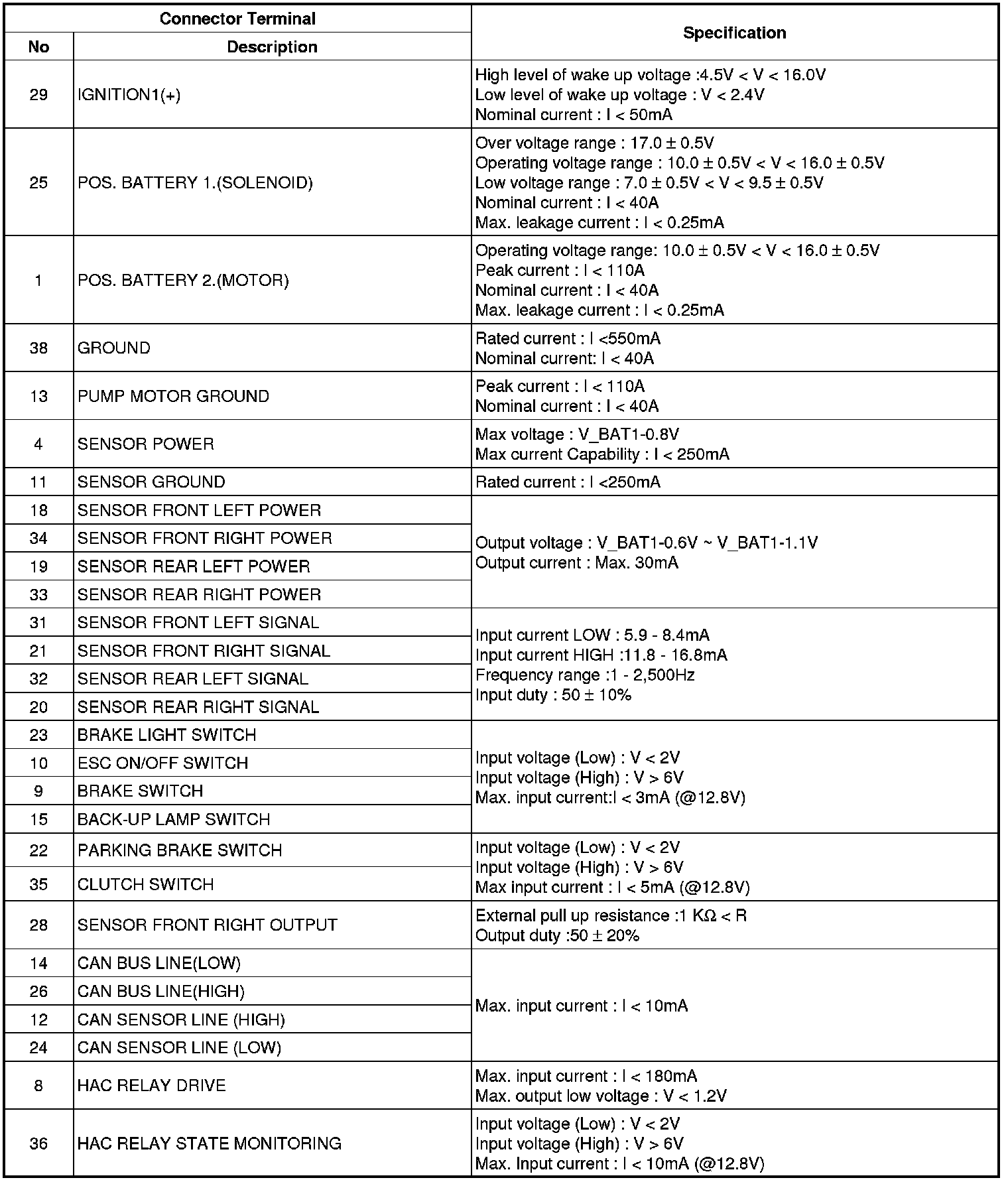

ESC Connector Input/Output
