Home >> Kia >> 2012 >> Soul L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Service and Repair >> Components And Components Location

Components And Components Location

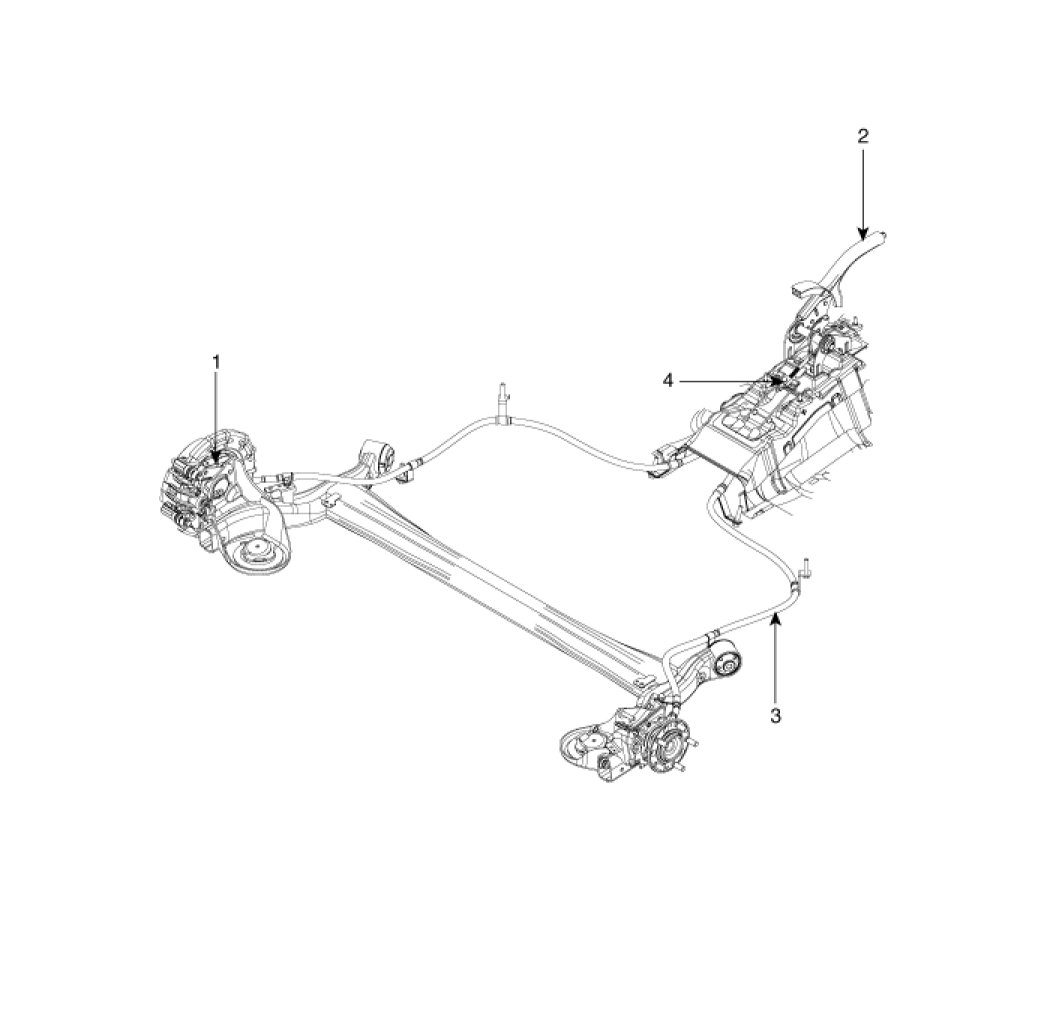

Component Location










Component

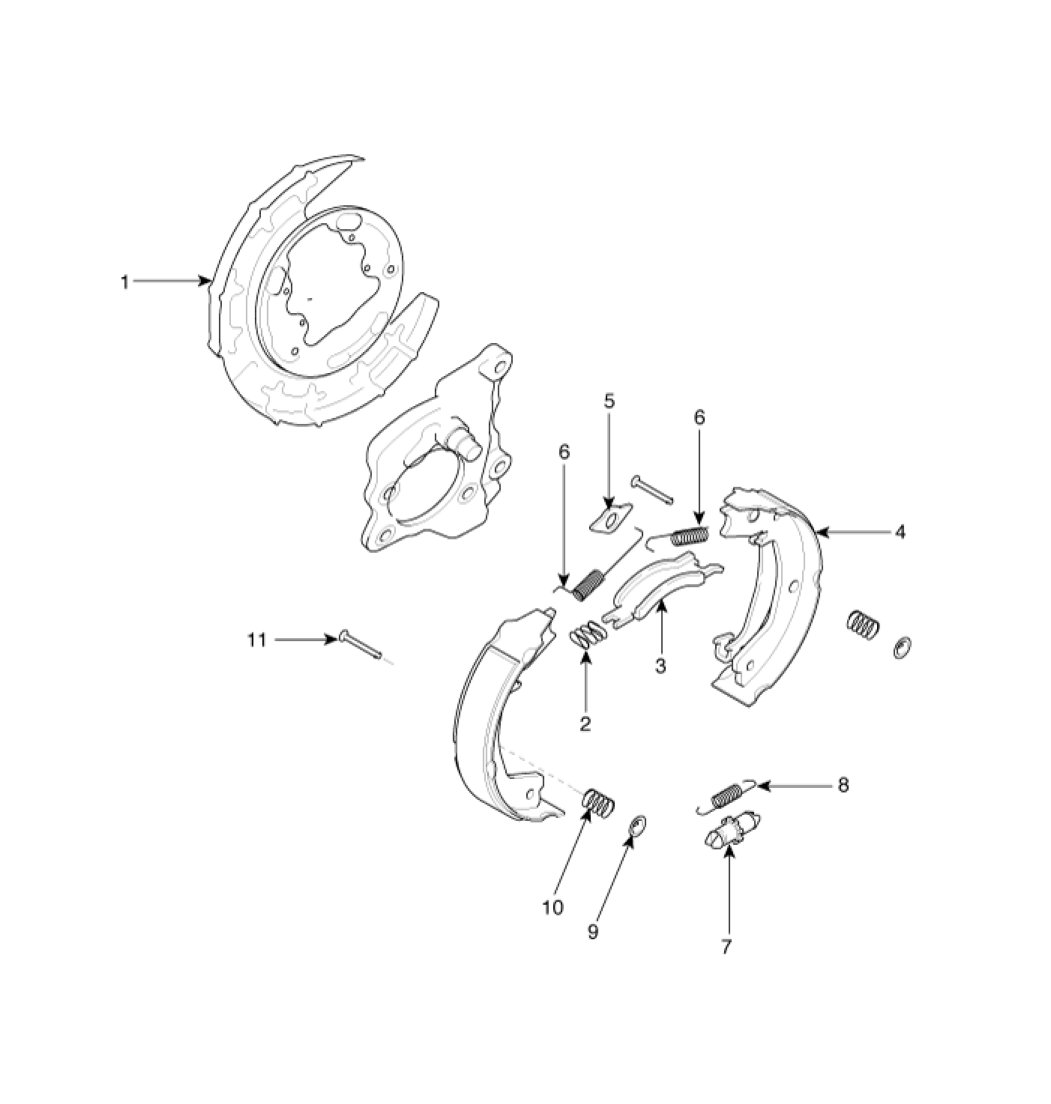

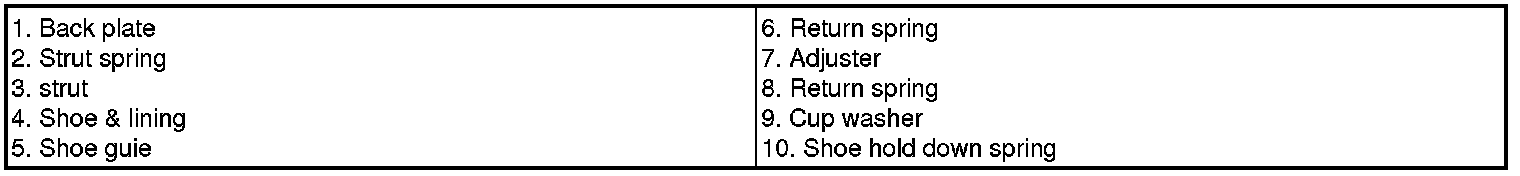

Disc Brake Type

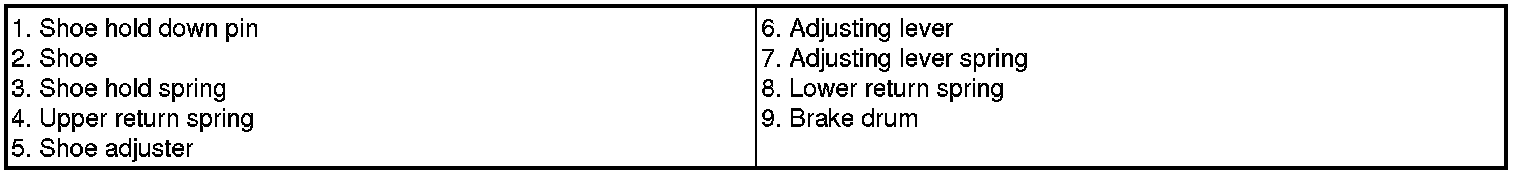

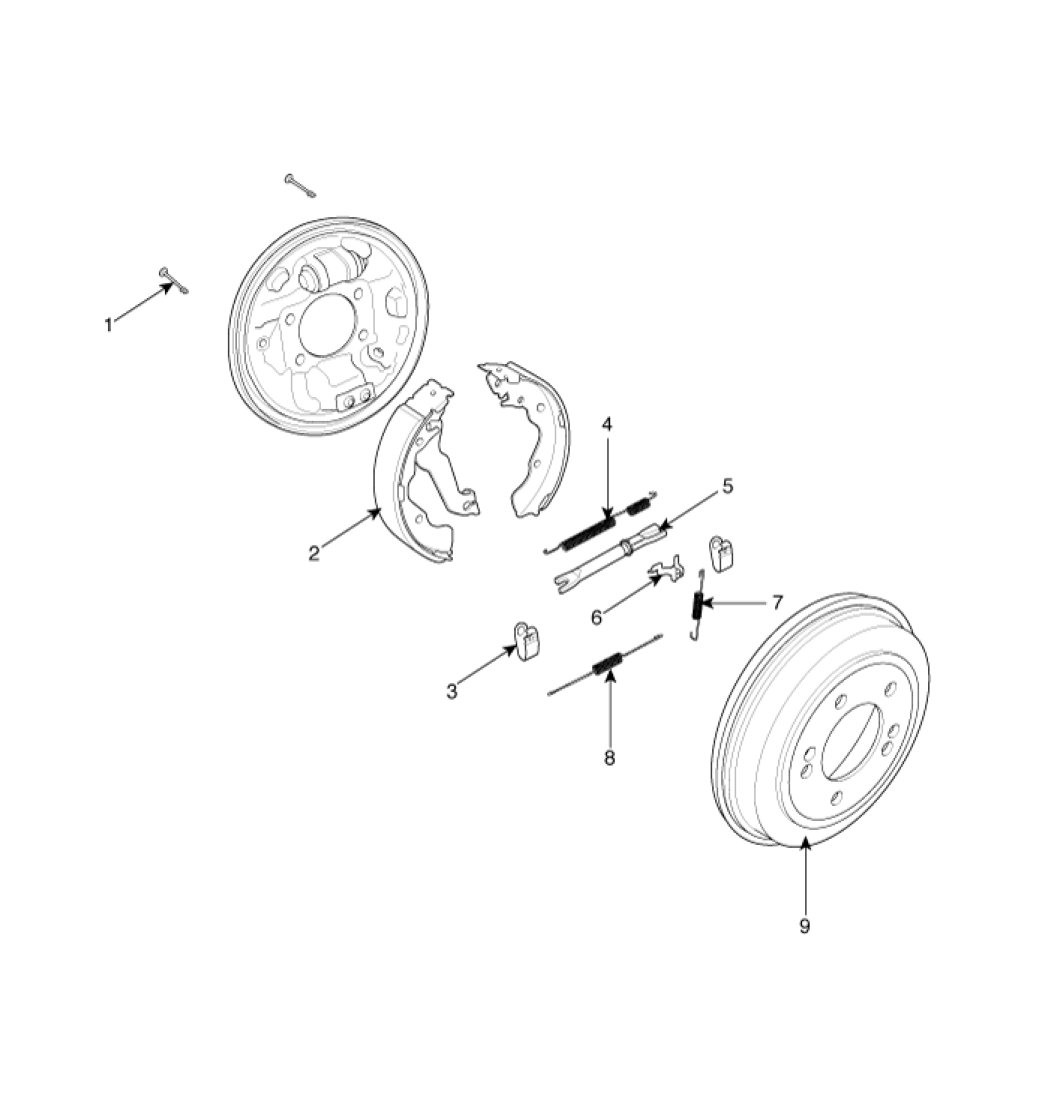

Drum Brake Type
