Keyless Starting System: Specifications





Specification

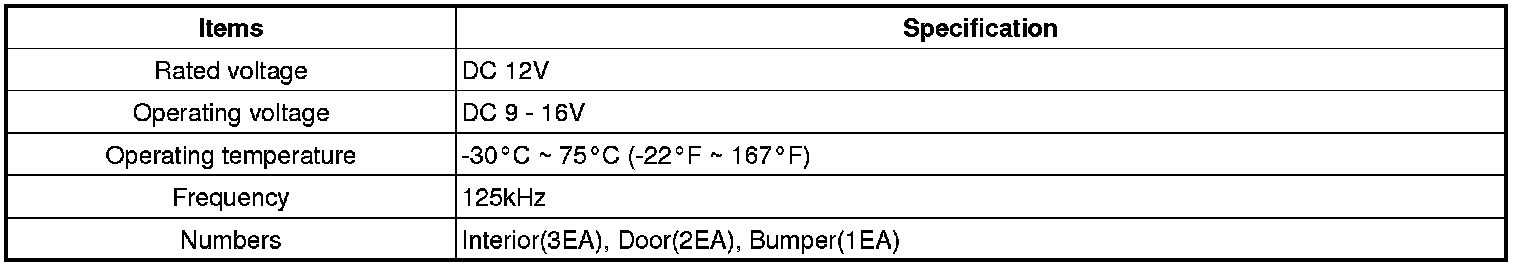

IPM (Smart Key Unit)





RF Receiver

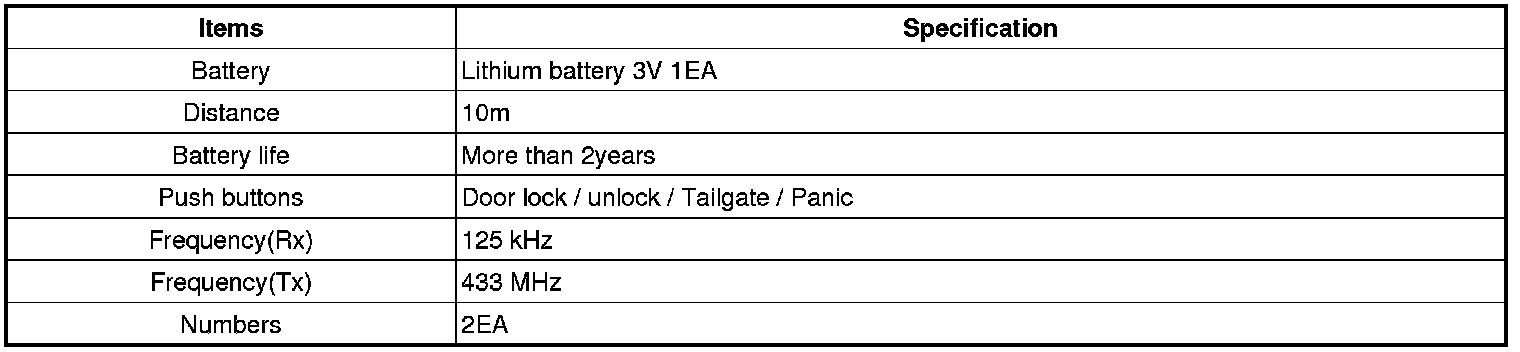

Smart Key FOB

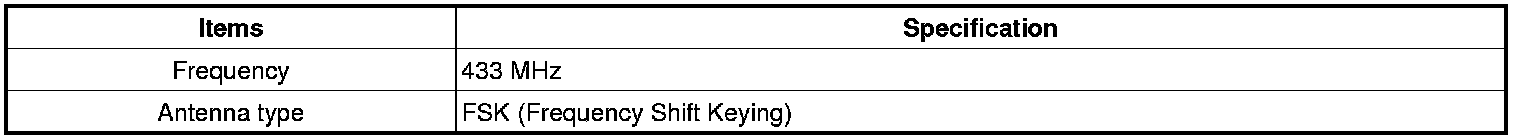

Antenna
