Repair Procedures
Replacement
Cluster Fascia Replacement
NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Tilt the steering column down.

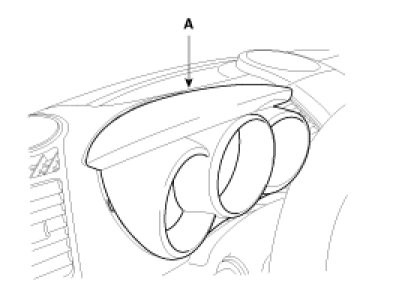

2. Remove the cluster fascia panel (A).

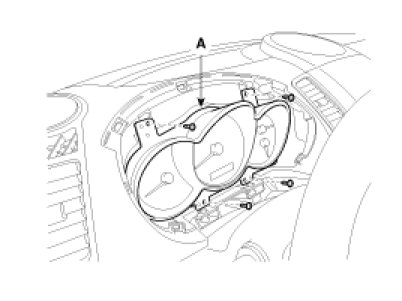

3. After loosening the mounting screws, remove the cluster fascia (A).
4. Disconnect the connector (A).
5. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
Center Fascia Panel Replacement
[Manual Type]
CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Using a screwdriver or remover, remove the center speaker grill (A).
2. Put the SST (09840-1E100) into the space between the center fascia panel (A) and crash pad.
NOTE:
- Be care not to damage the center facia and crash pad.
- Put the SST into the area as indicated by the arrows.
- To prevent the scratch, apply protective tapes to the center fascia panel and its related parts.
3. Separate the center fascia panel (A) from the crash pad by pulling the SST (09840-1E100).
4. Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
[Navigation Type]
CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Using a screwdriver or remover, remove the center speaker grill (A).
2. Put the SST (09840-1E100) into the space between the center fascia panel (A) and crash pad.
NOTE:
- Be care not to damage the center facia and crash pad.
- Put the SST into the area as indicated by the arrows.
- To prevent the scratch, apply protective tapes to the center fascia panel and its related parts.
3. Separate the center fascia panel (A) from the crash pad by pulling the SST (09840-1E100).
4. Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
Lower Panel Replacement

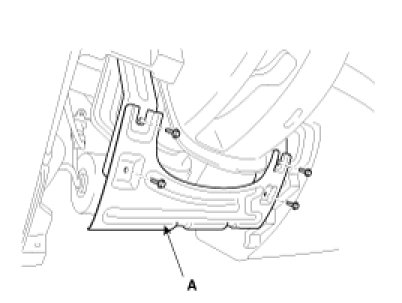

1. After loosening the crash pad lower panel mounting screws, remove the lower panel (A).

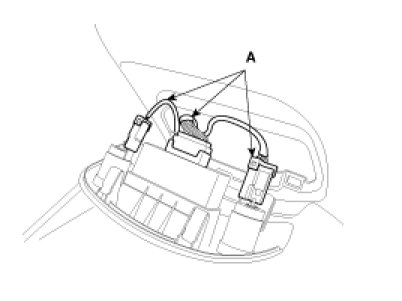

2. Disconnect the speaker lamp switch connector (A) and start/stop button connector (B).
3. Disconnect the connector (A).

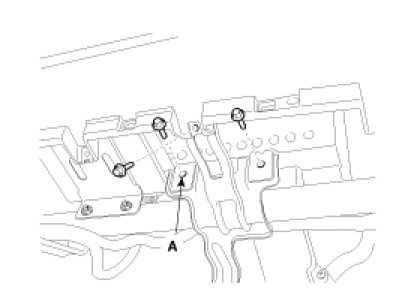

4. After loosening the mounting bolts, then remove the reinforcing panel (A).
5. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
Audio Assembly Replacement
[Manual Type]
CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Remove the following items :
A. Center speaker grill
B. Center fascia panel

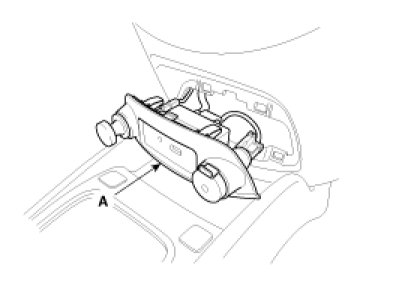

2. After loosening the mounting screws, then remove the heater control unit (A).

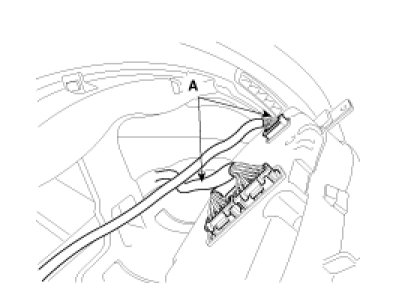

3. Disconnect the connectors (A).
4. After loosening the mounting screws, then remove the audio assembly (A).
5. Disconnect the connectors (A).
[Upper]
[Lower]
6. Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
[Navigation Type]
CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Remove the following items:
A. Center speaker grill
B. Center fascia panel
2. After loosening the mounting screws, then remove the center air vent (A).
[LH]
[RH]
3. After loosening the mounting screws, then remove the heater control unit panel (A).
4. Disconnect the connectors (A).
[Upper]
[Lower]
5. After loosening the mounting screws, then remove the navigation assembly (A).
6. Disconnect the connectors (A).
[Upper]
[Lower]
7. Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
Center Speaker Replacement

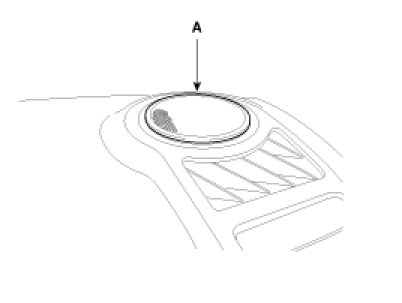

1. Using a screwdriver or remover, remove the center speaker grill (A).

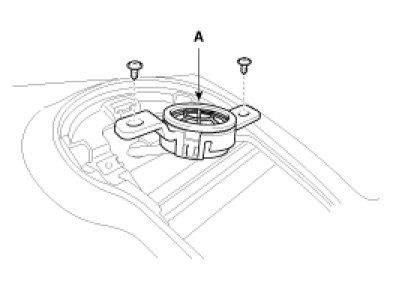

2. After loosening the mounting screws, remove the speaker (A).
3. Disconnect the speaker connector (A).
4. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
Twitter Speaker Replacement
1. Remove the twitter speaker grill (A).
2. After loosening the mounting screws, then remove the side air vent (A).
3. After loosening the mounting screws, remove the twitter speaker (A).
4. Disconnect the twitter speaker connector (A).
5. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
Glove Box Replacement

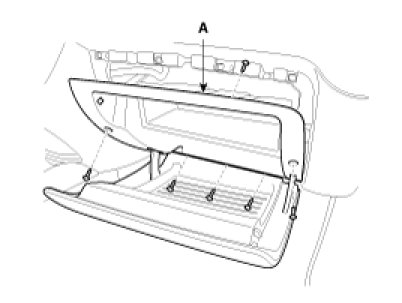

1. Open the glove box.
2. After loosening the mounting screws, remove the glove (A).
3. Installation is the reverse of removal.
Lower Tray Replacement

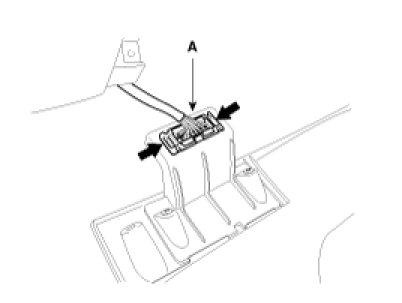

1. Remove the lower tray (A).

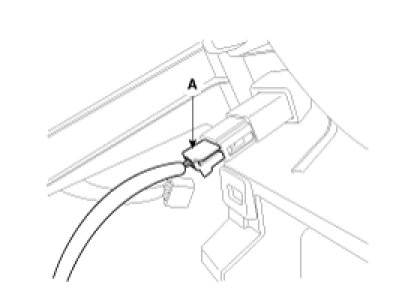

2. Disconnect the connector (A).
3. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
Shroud Replacement

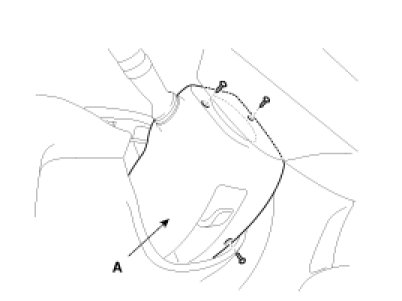

1. After loosening the mounting screws, remove the shroud (A).
2. Installation is the reverse of removal.
Crash Pad Replacement
NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Remove the following items :
A. Front seat
B. Front pillar trim
C. Floor console assembly
D. Front door scuff trim
E. Cowl side trim
F. Crash pad side cover
G. Crash pad lower panel
H. Cluster fascia panel & Cluster assembly
I. Center fascia panel
J. Heater control unit
K. Audio assembly
L. Glove box

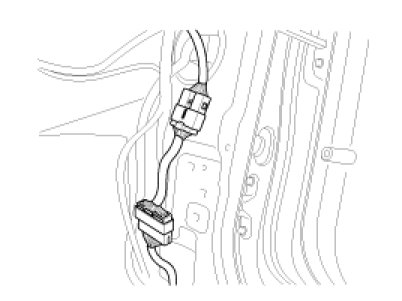

2. Disconnect the steering column connectors.
3. Down the steering column after loosening the mounting bolts.
4. Remove the switch assembly (A).

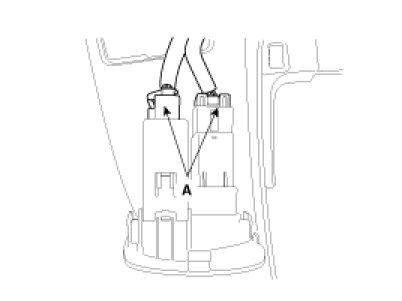

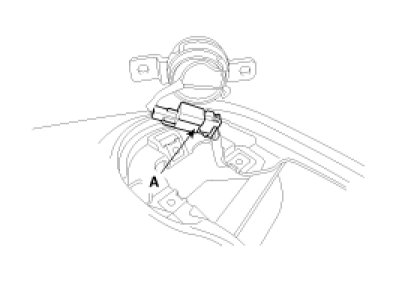

5. Disconnect the connector (A).
6. Disconnect the passenger`s air bag connector (A).
7. Remove the passenger's air bag mounting bolt (A).

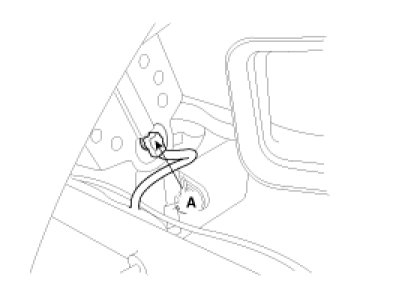

8. Disconnect the connector (A).

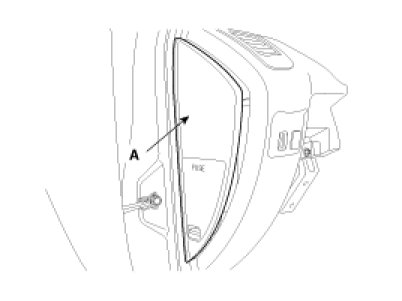

9. Remove the crash pad side pad (A).

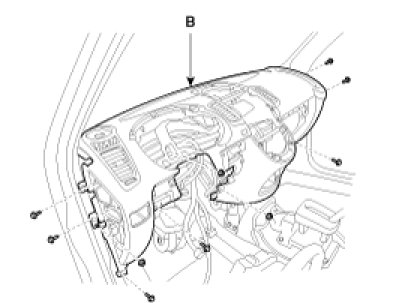

10. Loosen the bolts and nuts, then remove the crash pad (B).
11. Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
Cowl Cross Bar Replacement
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Remove the following items :
A. Front seat
B. Floor console assembly
C. Cowl top cover
D. Main crash pad

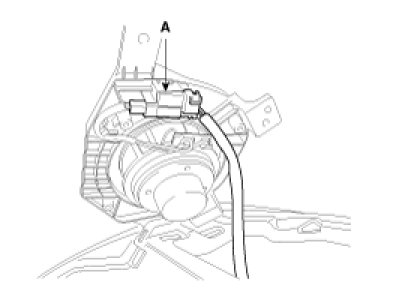

2. Disconnect the blower unit connectors.

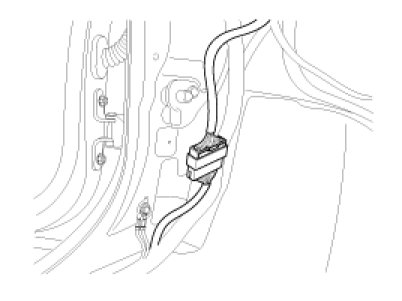

3. Disconnect the driver's connectors.
4. Disconnect the passenger's connectors.

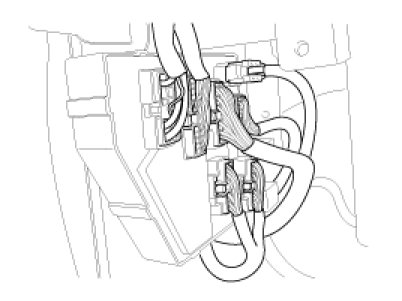

5. Disconnect the connectors.

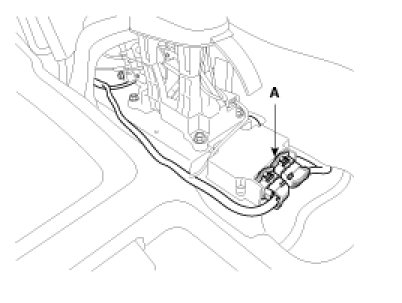

6. Disconnect the air bag connector (A).

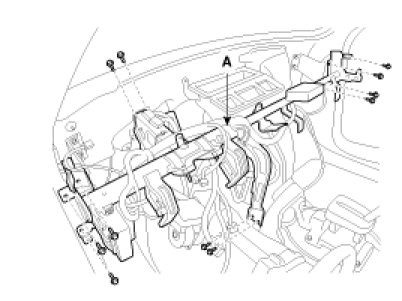

7. After loosening the mounting bolts, remove the cowl cross bar (A).
8. Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
