Exterior Moulding / Trim: Service and Repair

Replacement

Roof Rack Replacement
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

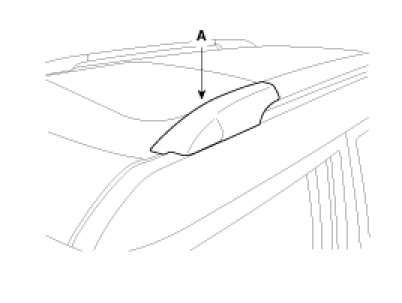

1. Remove the roof rack cover (A).

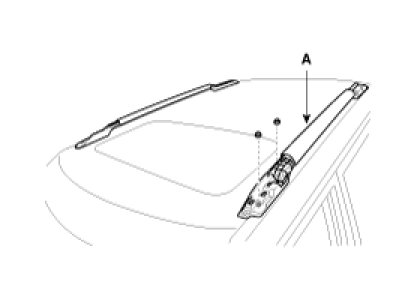

2. After loosening the mounting nuts, then remove the roof rack (A).




3. Installation is the reverse of removal.

Spoiler Replacement

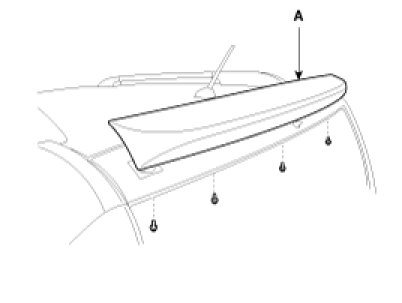

1. After loosening the mounting nuts, then remove the spoiler (A).




2. Installation is the reverse of removal.

Tailgate Handle Replacement
1. Remove the tailgate trim.

2. After loosening the mounting nuts, then remove the tailgate handle (A).
3. Disconnect the connector (B).




4. Installation is the reverse of removal.
