Parking Assist Warning Indicator: Service and Repair

Inspection

Test the buzzer by connecting battery voltage to the 1 terminal and ground the 2 terminal.
The buzzer should make a sound. If the buzzer fails to make a sound, replace it.

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the main crash pad (A).

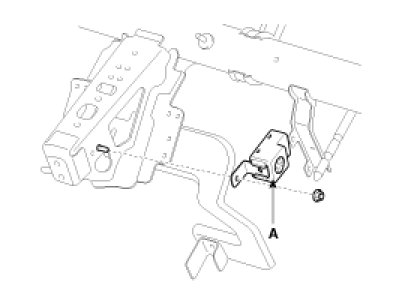

3. Remove the buzzer (A) after loosening the nut and disconnecting the 2P connector.






Installation

1. Connect the connector, and then install the buzzer.
2. Install the main crash pad.
