Component Tests and General Diagnostics

Inspection

1. Disconnect the negative(-) battery terminal.
2. Remove the roof trim(A).

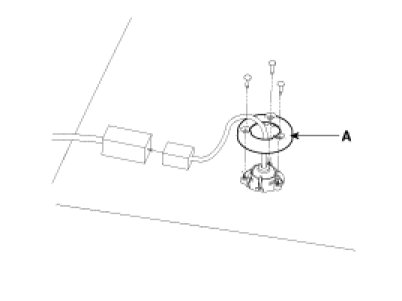

3. Remove the hands free mic(A) after loosening the connector and screw(3EA) from roof top.

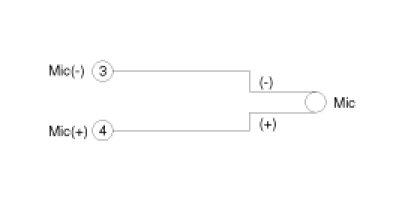

4. Check the continuity of Mic between terminals.
