U0155 Lost Communication With Instrument Panel Cluster (IPC) Control Module (C-CAN) - General Information

Component Location





General Description

A communication line exists between the Engine Control Module(PCM) and the Transaxle Control Module(TCM). The communication is through a Control Area Network(CAN). Without CAN communication, an independent pin and wiring is needed to receive a sensor information from a PCM. The more information to be communicated, the more wirings is required. In case of CAN communication type, all the information need to be communicated among control modules such as PCM and ABS control module use CAN lines.

DTC Description

If there is no message from Instrument cluster to ECM through external CAN line, ECM sets DTC U0155

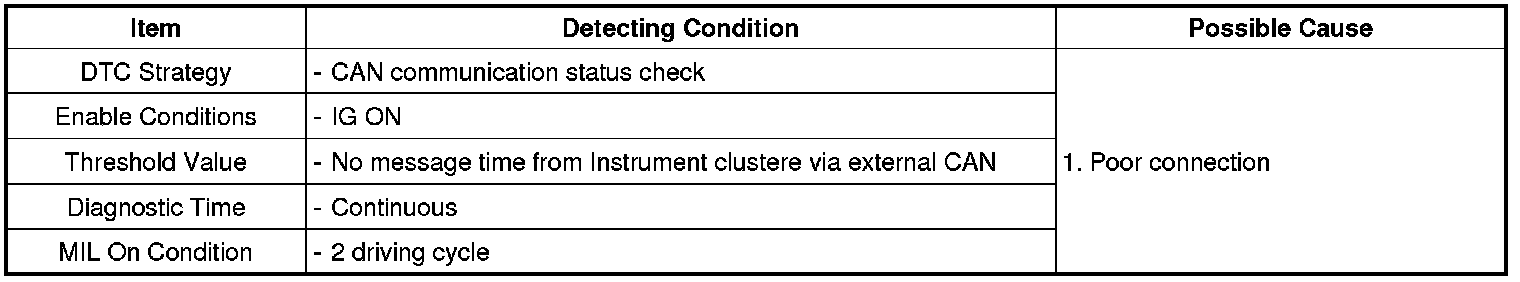

DTC Detecting Condition

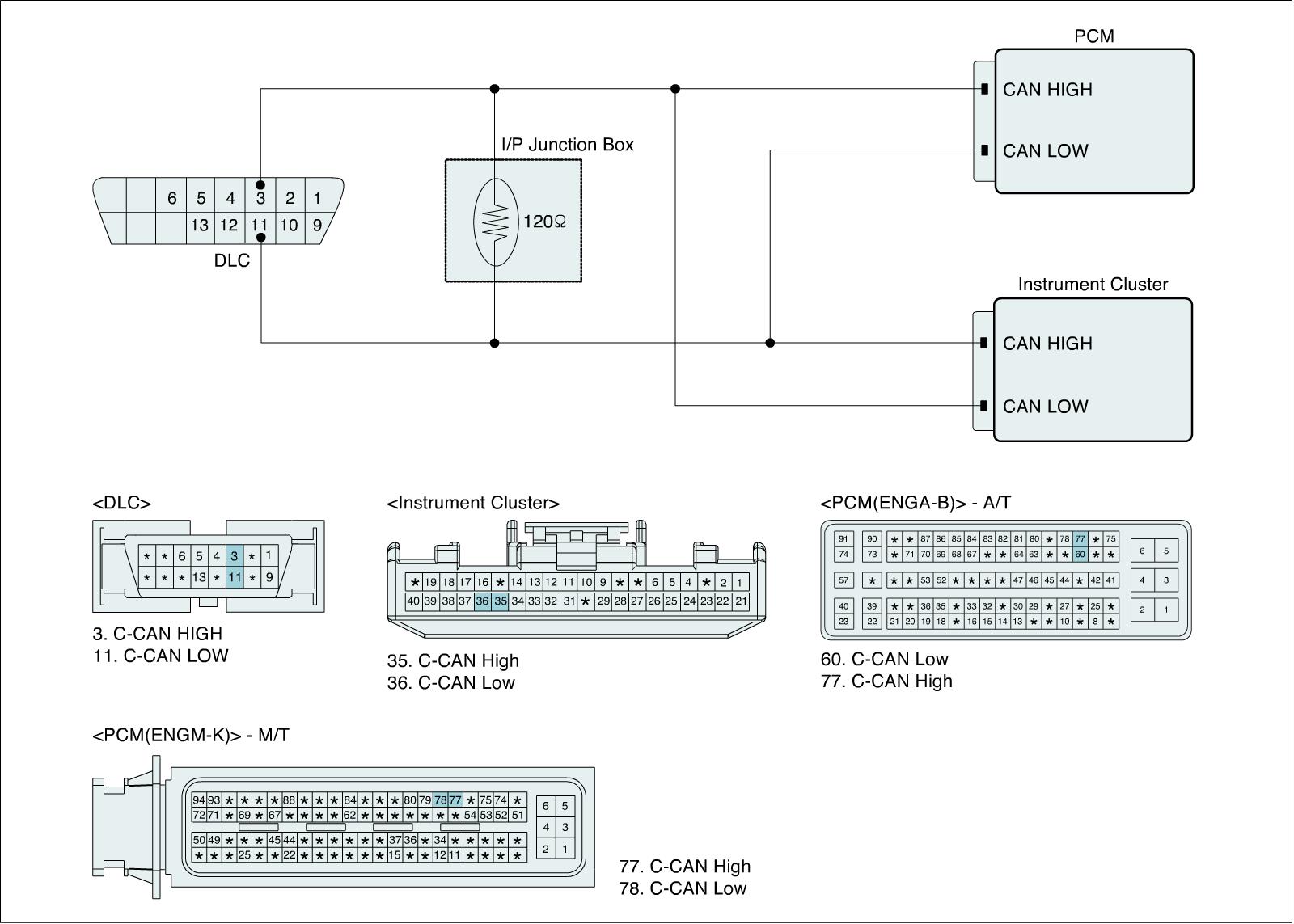

Diagnostic Circuit Diagram





Signal Waveform & Data




Fig.1) Normal waveform with ignition ON
