Component Inspection

Engine Control
P2017 Intake Manifold Runner Position Sensor/Switch Circuit High(Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG KEY "ON" and select 'Actuation Test' menu in GDS.
2. Execute 'Variable Charge Motion Actuator'.
3. Confirm the change of VCMA feedback sensor signal and the sound of operation.

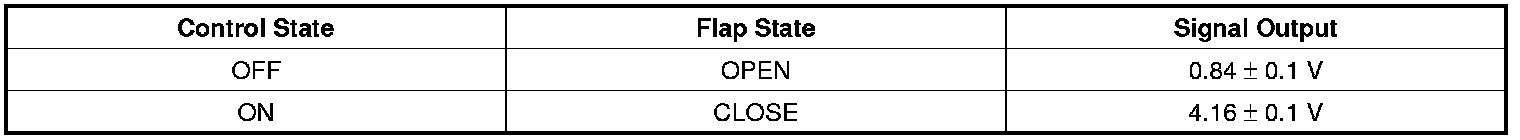

Specification :

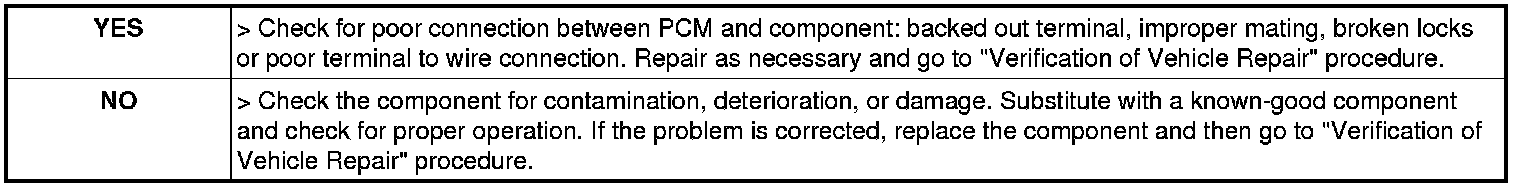

4. Is everything OK?
