Component Inspection
Engine Control
P2006 Intake Manifold Runner Control Stuck Closed (Bank 1) - Inspection/Repair:_:Component Inspection
Component Inspection
1. IG KEY "ON" and select 'Actuation Test' menu in GDS.
2. Execute 'Variable Charge Motion Actuator'.
3. Confirm the change of VCMA feedback sensor signal and the sound of operation.

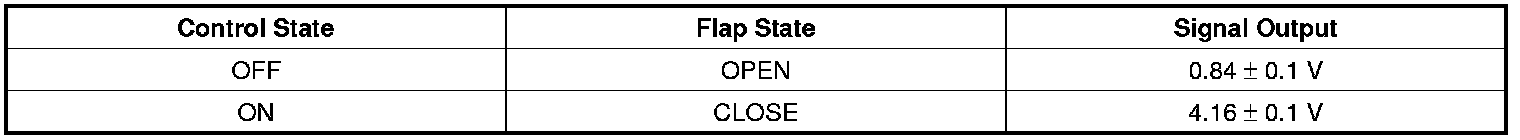

Specification :

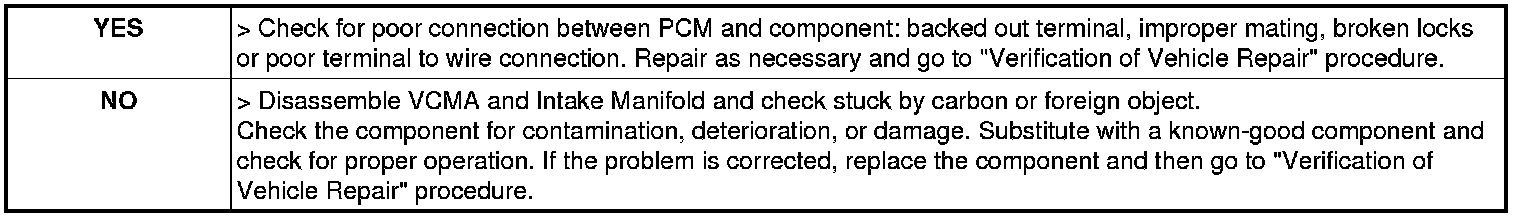

4. Is everything OK?
