Scantool Diagnostics

Smart Key Code Saving
P1696 Immobilizer-Authentication Fail - Scantool Diagnostics

Monitor GDS Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart Key ECM/PCM status parameter if DTC is retrieved.




Fig.1) It shows that 2(two) FOB key is registered, Smart Key ECM/PCM is learnt status.

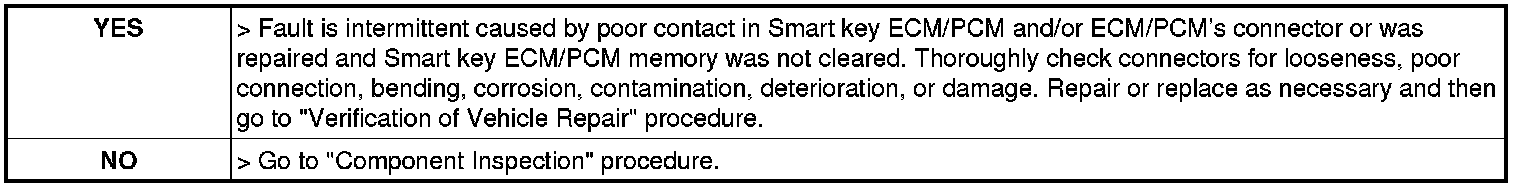

4. Is the smart Key ECM/PCM learnt?
