P1676 Immobilizer-Smartra Message Error - Scantool Diagnostics

Monitor GDS Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart key status if DTC is retrieved.




Fig.1) It shows that 2(two) FOB key is registered, Smart Key ECM/PCM is learnt status.

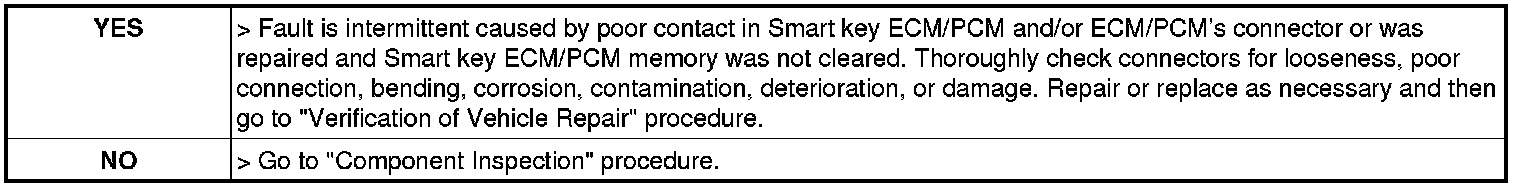

4. Is the Smart key ECM/PCM learnt statu ?
