P0820 Gear Lever X-Y Position Sensor Circuit - General Information

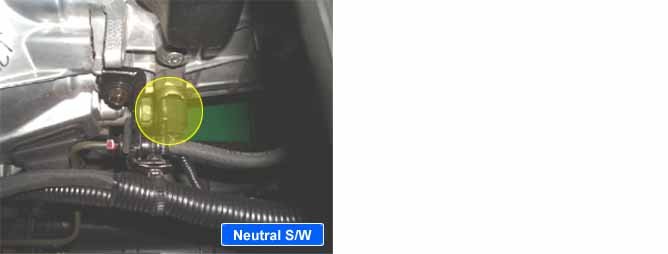

Component Location





General Description

If clutch S/W signal is ON, this signal is sent to PCM which monitors cltuch operation.That is used to monitor driving and shifting. PCM starts engine by controlling starter relay if clutch signal is ON at idle stop.

DTC Description

PCM sets DTC P0820 if neutral gear switch is ON for more than 4 sec. while clutch switch is on and engine rpm changes. In this case, Idle stop function is not performing by PCM

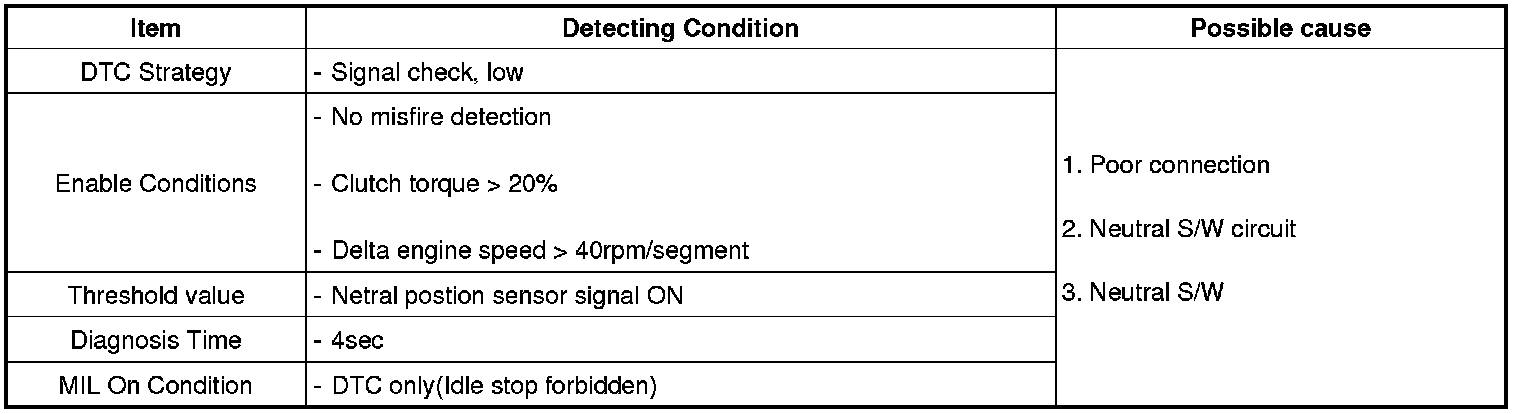

DTC Detecting Condition

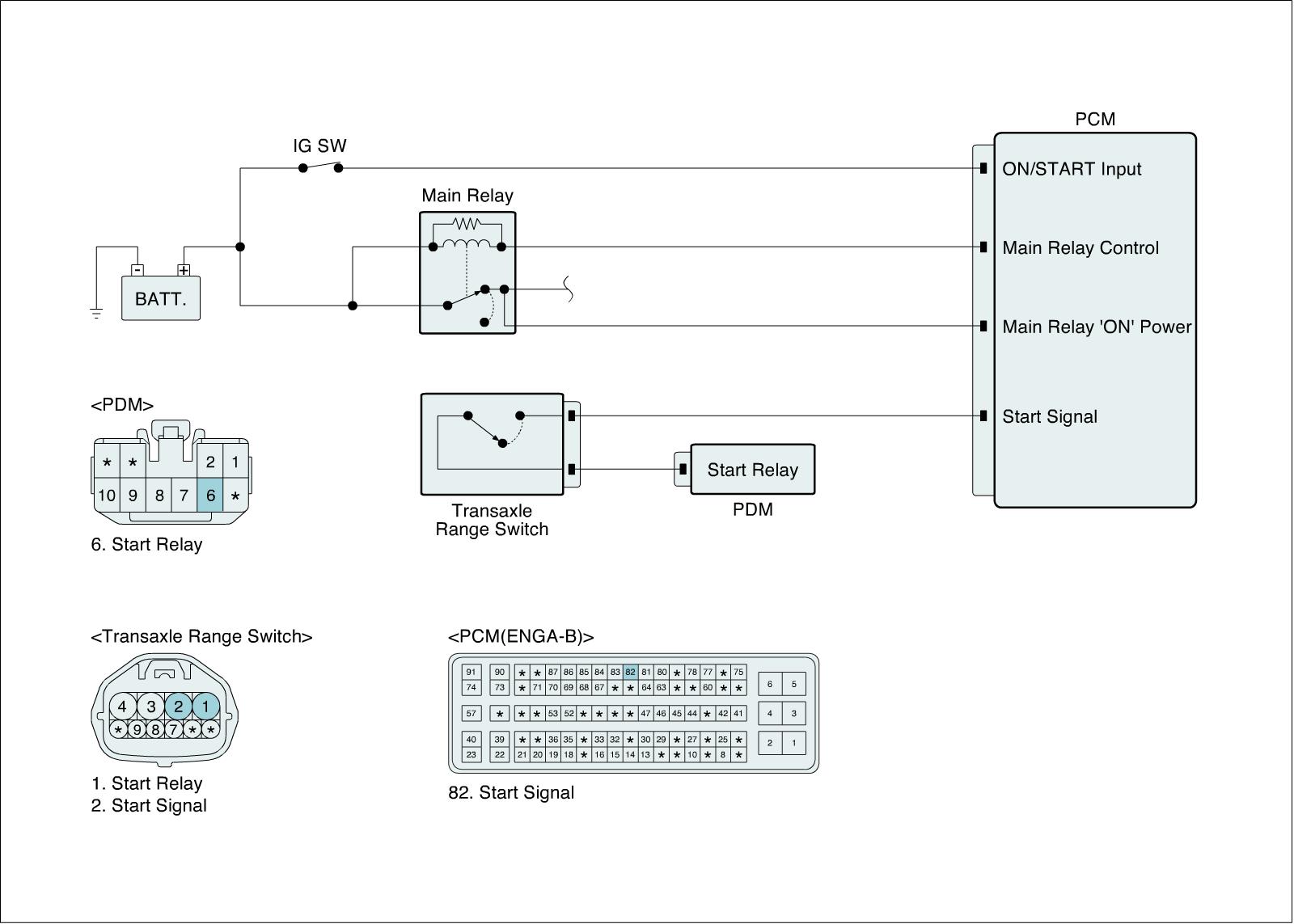

Diagnostic Circuit Diagram
