Component Inspection

Engine Control
P0820 Gear Lever X-Y Position Sensor Circuit - Inspection/Repair:_:Component Inspection

Component Inspection

Check Neutral S/W
1. IG KEY "OFF".
2. Disconnect Neutral S/W connector.

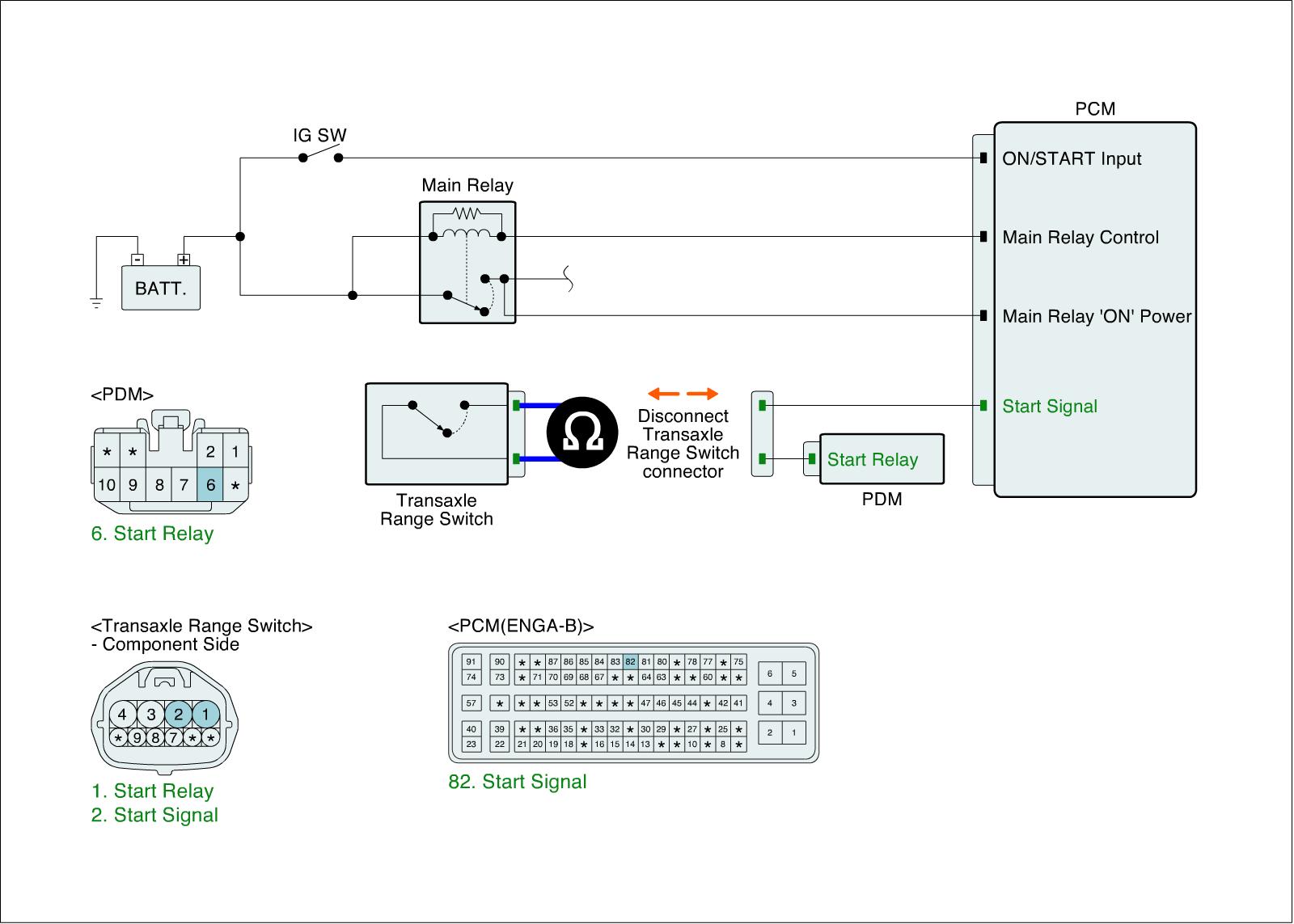

3. Check continuity between Neutral S/W component signal terminal and Ground terminal as shifting gear lever 2 - 3 times.

Specifications :The measured resistance varies from below 1.0Ohms(Continuity) to infinite Ohms(Discontinuity) in accordance with gear shifting.

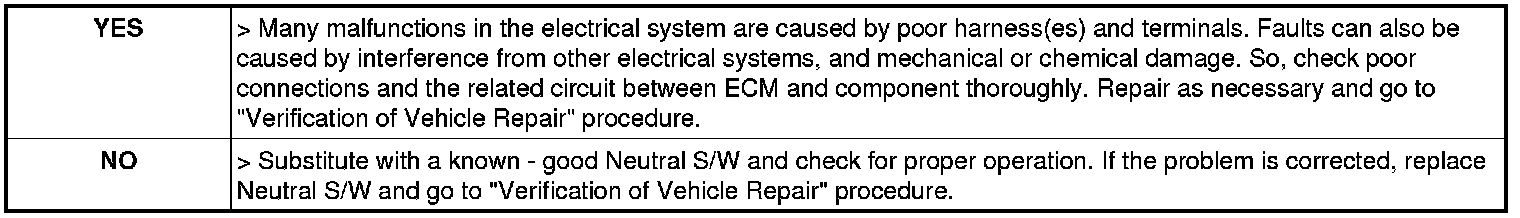

4. Is the measured resistance within the specification?
