P0753 Shift Control Solenoid Valve \'A\' Electical (UD/B) - General Information

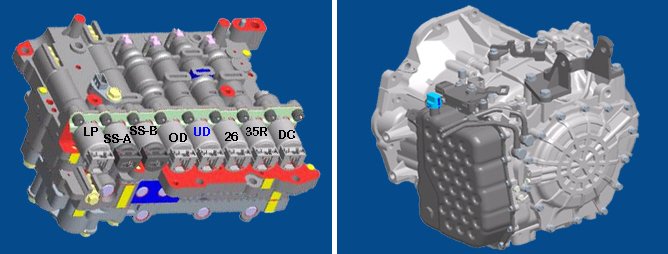

Component Location





General Description

PCM control UD-VFS(Shift Control Solenoid Valve) solenoid valve by changed current for reducing UD brake shock.

DTC Description

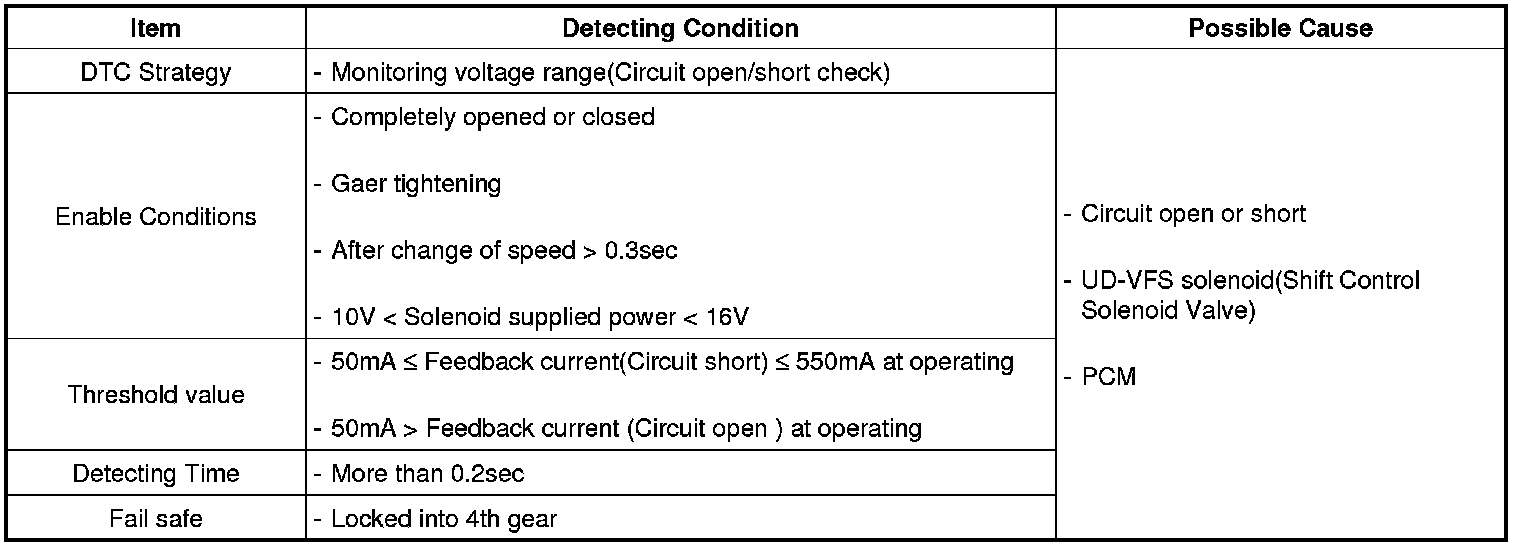

This code is set when circuit open or short detected by PCM.

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

- Working temperature : -40°C~150°C
- Internal resistance : 5.1 ± 0.3 Ohms( 25°C normal temperature )

Diagnostic Circuit Diagram










Signal Waveform & Data

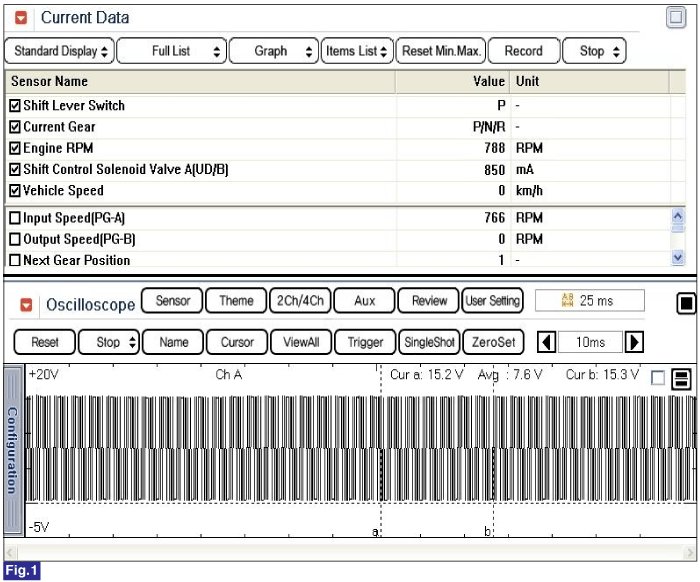

Fig 1) Wave form of UD-VFS
