General Information

Automatic Transaxle
P0706 Transmission Range Sensor Circuit Range/Performance - General Information

Component Location





General Description

Shift lever positions P-range(Parking), R-range(Reverse), N-range(Neutral) and D-range(Driving) are changed by driver need and lever position is sent to PCM to control a gear ration.

DTC Description

This code is set when undefined range signal is input to PCM without specific of transmission pattern table.

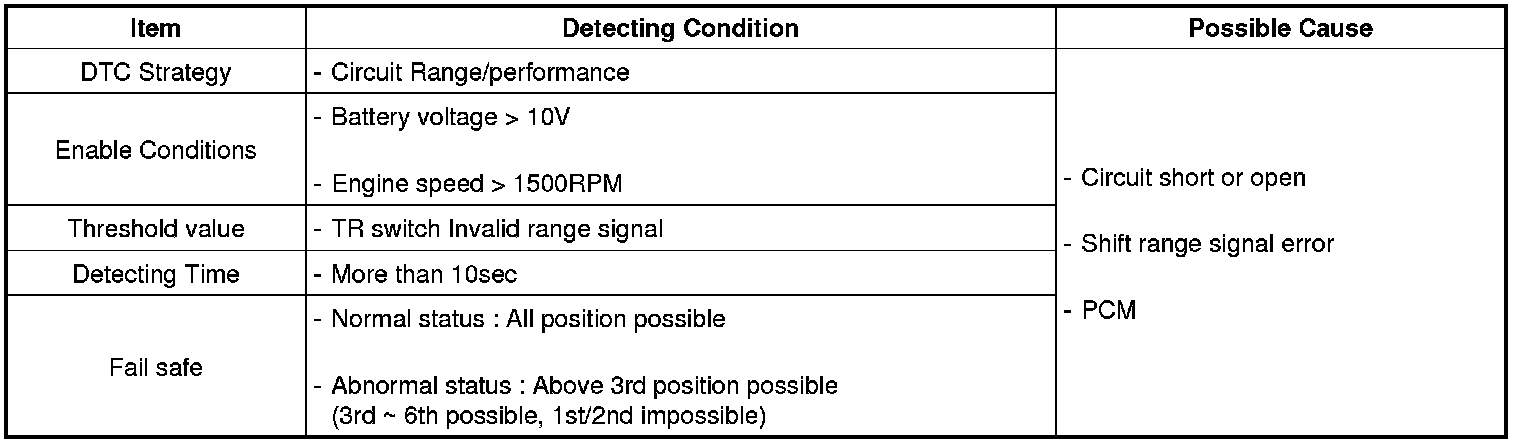

DTC Detecting Condition

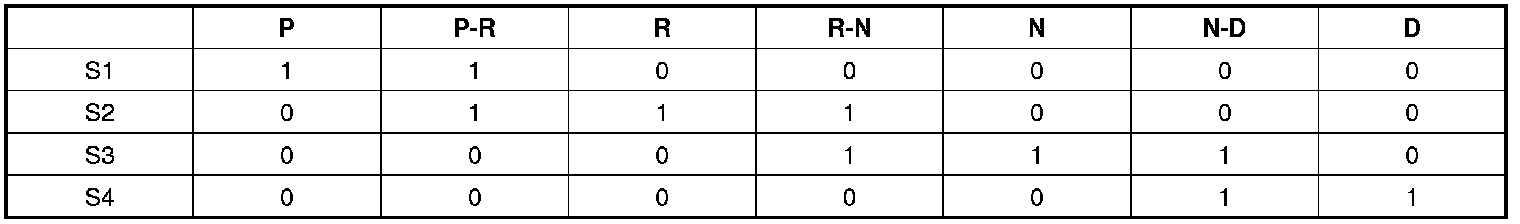

Specification

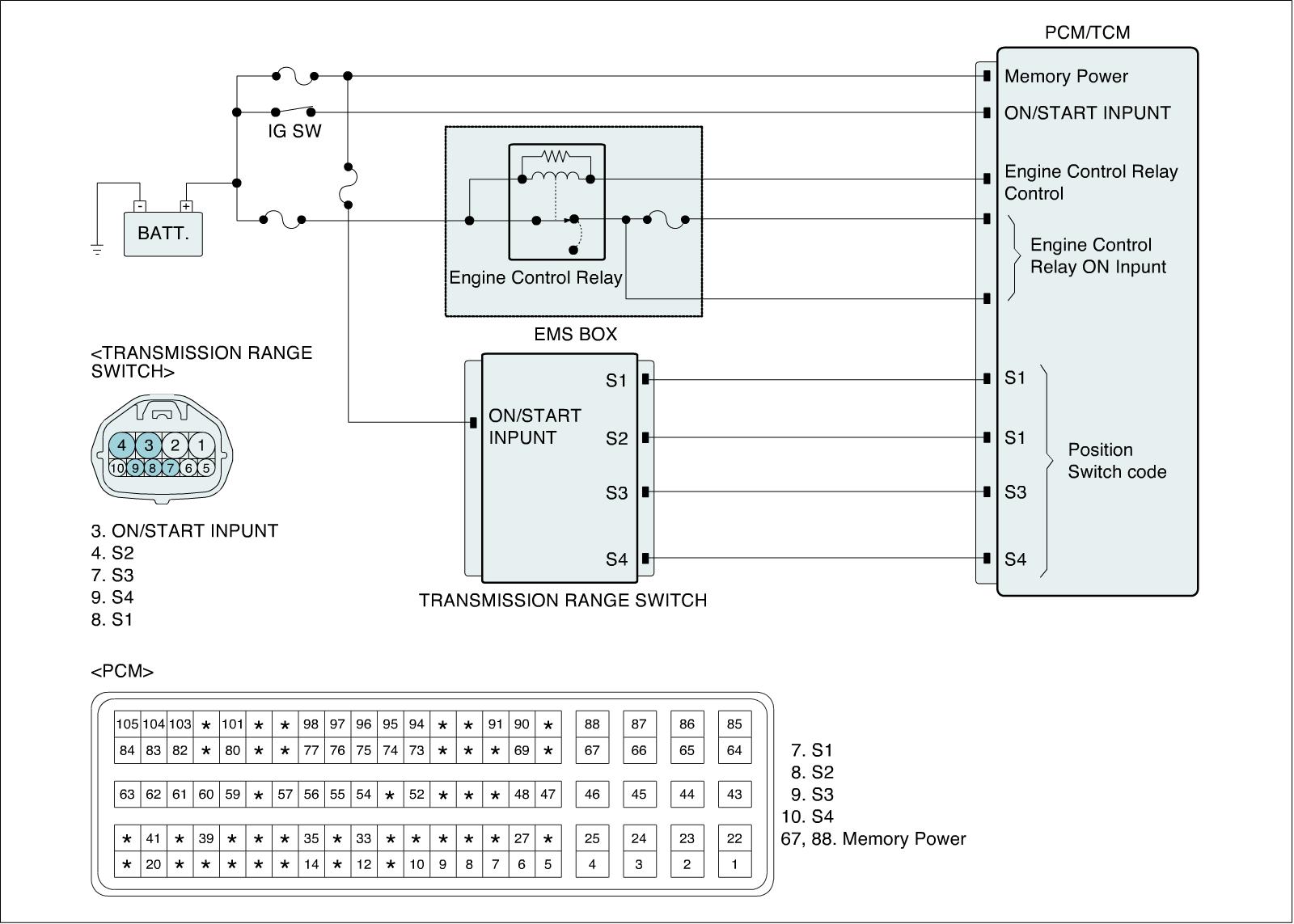

Diagnostic Circuit Diagram

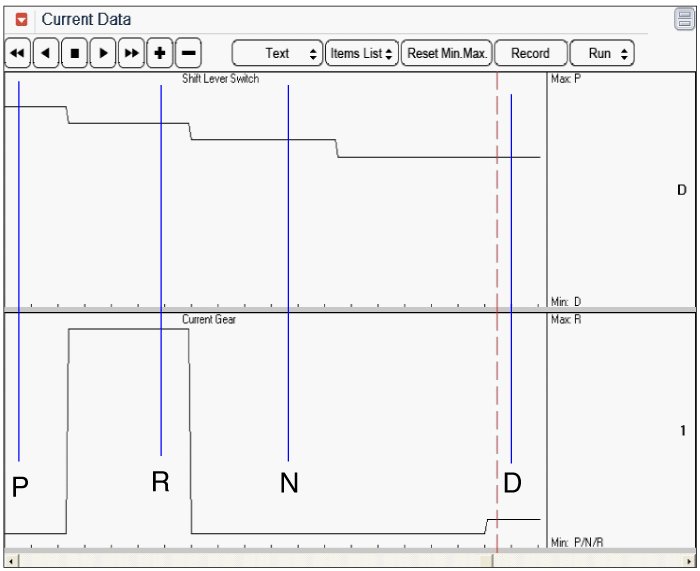

Signal Waveform & Data
