Scantool Diagnostics

Engine Control
P0704 Clutch Switch Input Circuit Malfunction - Scantool Diagnostics

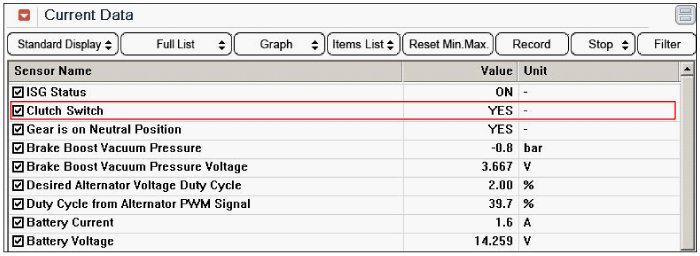

Monitor GDS Data

1. Connect GDS to DLC(Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "Clutch Switch" parameter on GDS

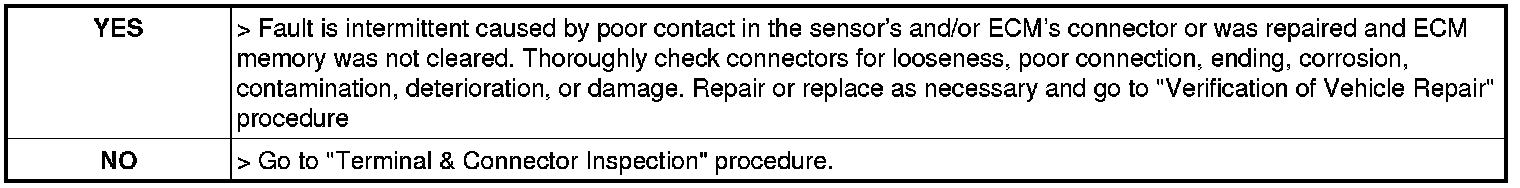

4. Is the "Clutch Switch" parameter displayed correctly?
