P0617 Starter Cut Relay Circuit High - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Engine start.

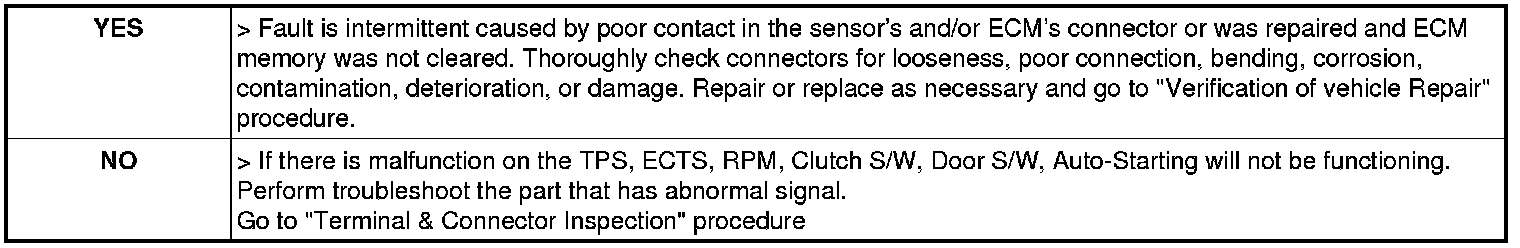

3. Check input, output value and status of ISG system. (TPS, ECTS, RPM, Clutch S/W, Door S/W etc. )
