General Information

Engine Control
P0617 Starter Cut Relay Circuit High - General Information

Component Location





General Description

With start signal from IG key, ECM grounds a coil of starter relay in order to start engine. In case of ISG, ECM starts engine if idle stop release condition or auto-start condition are met.

DTC Description

If there is Open or Short to battery in Starter Relay circuit, ECM sets DTC P0617.

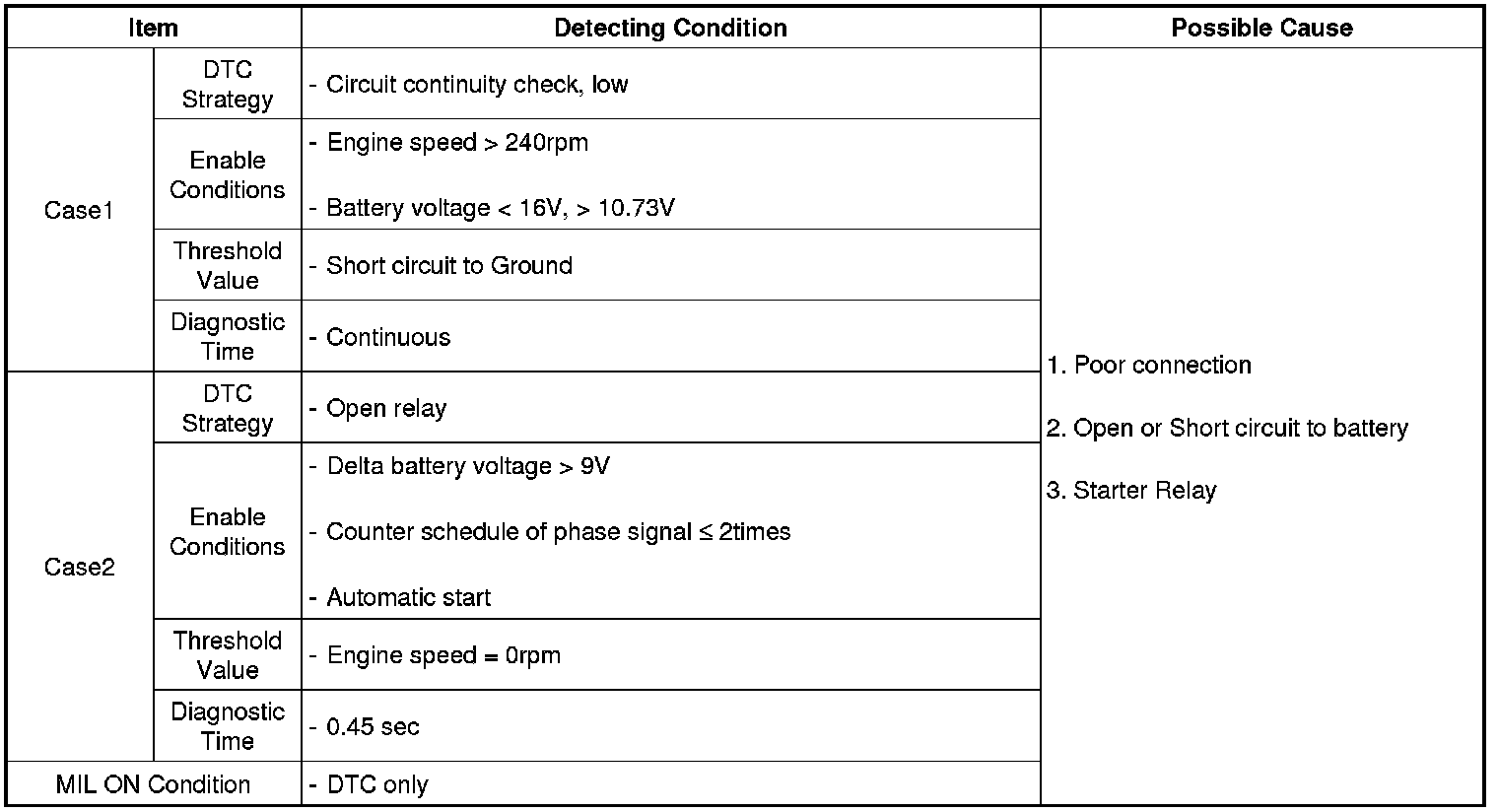

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
