P0616 Starter Relay Circuit Low - General Information

Component Location





General Description

With start signal from IG key, ECM grounds a coil of starter relay in order to start engine. In case of ISG, ECM starts engine if idle stop release condition or auto-start condition are met.

DTC Description

ECM set DTC P0616 if starter relay is short to ground or engine is not starting when auto-starting condition is met.

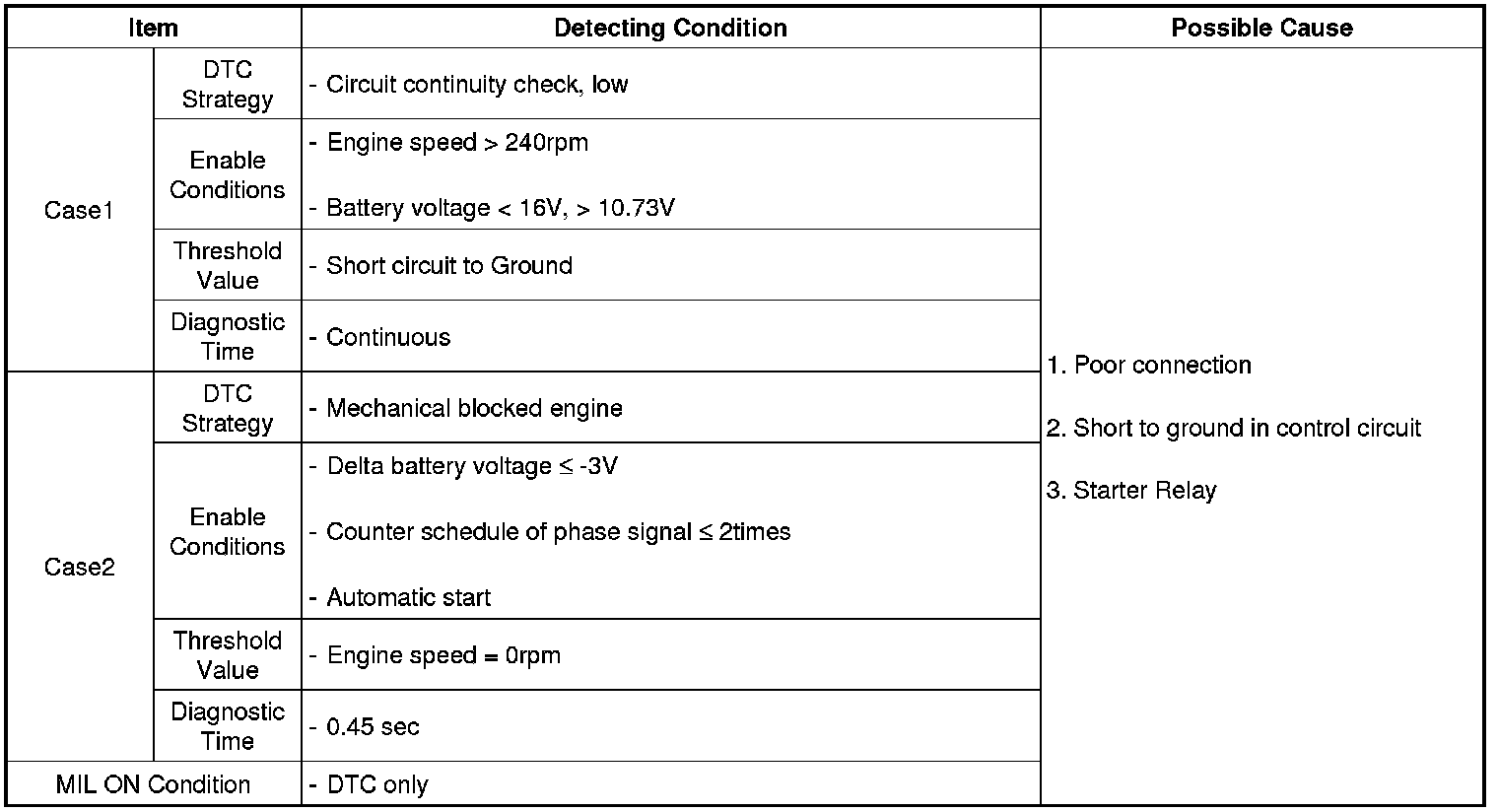

DTC Detecting Condition





Specification

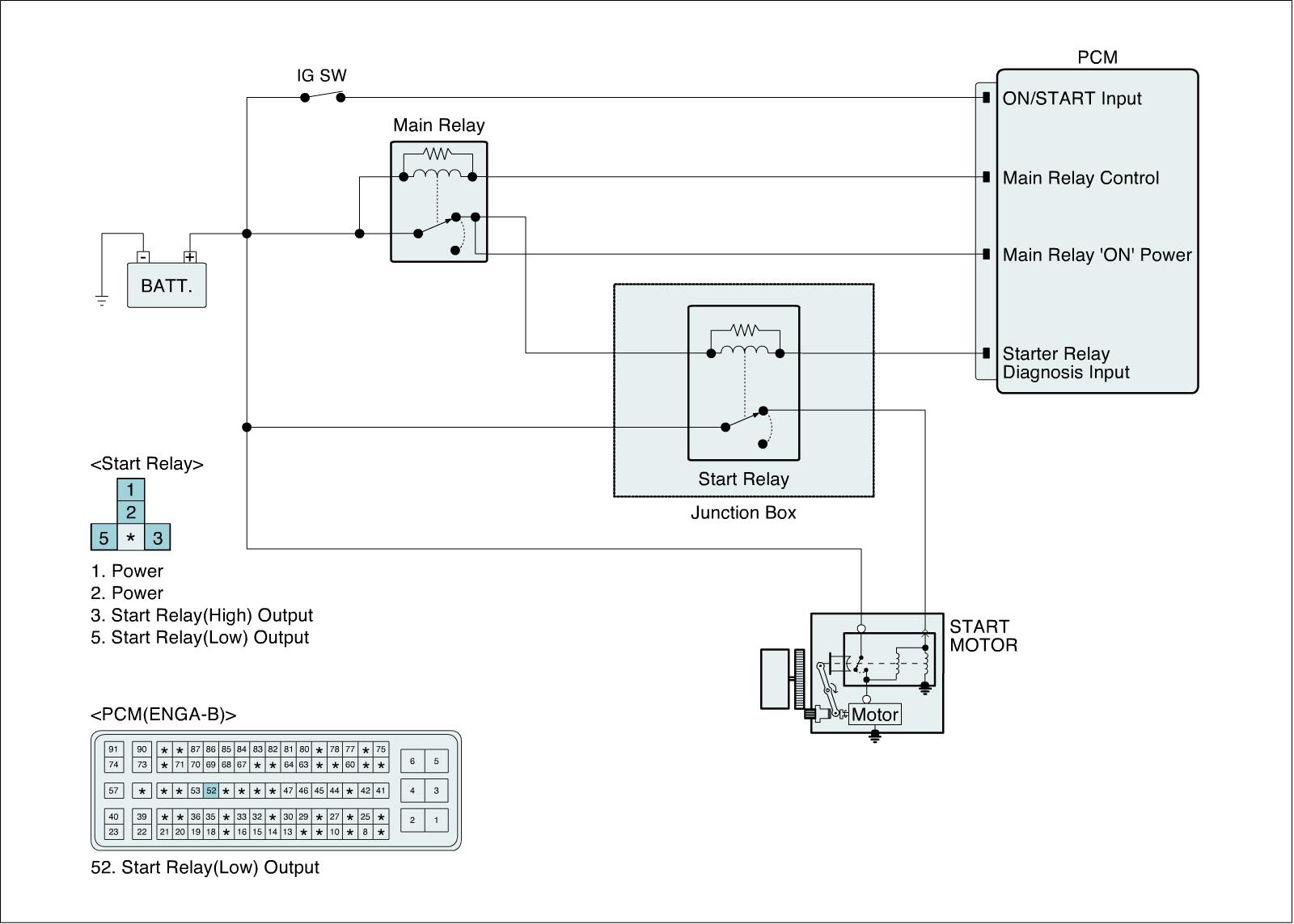

Diagnostic Circuit Diagram
