W/Harness Inspection

Engine Control
P0557 Brake Booster Pressure Sensor Circuit Low - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Check Open or Short in power circuit
1. IG KEY "OFF".
2. Disconnect BVS connector.
3. IG KEY "ON"

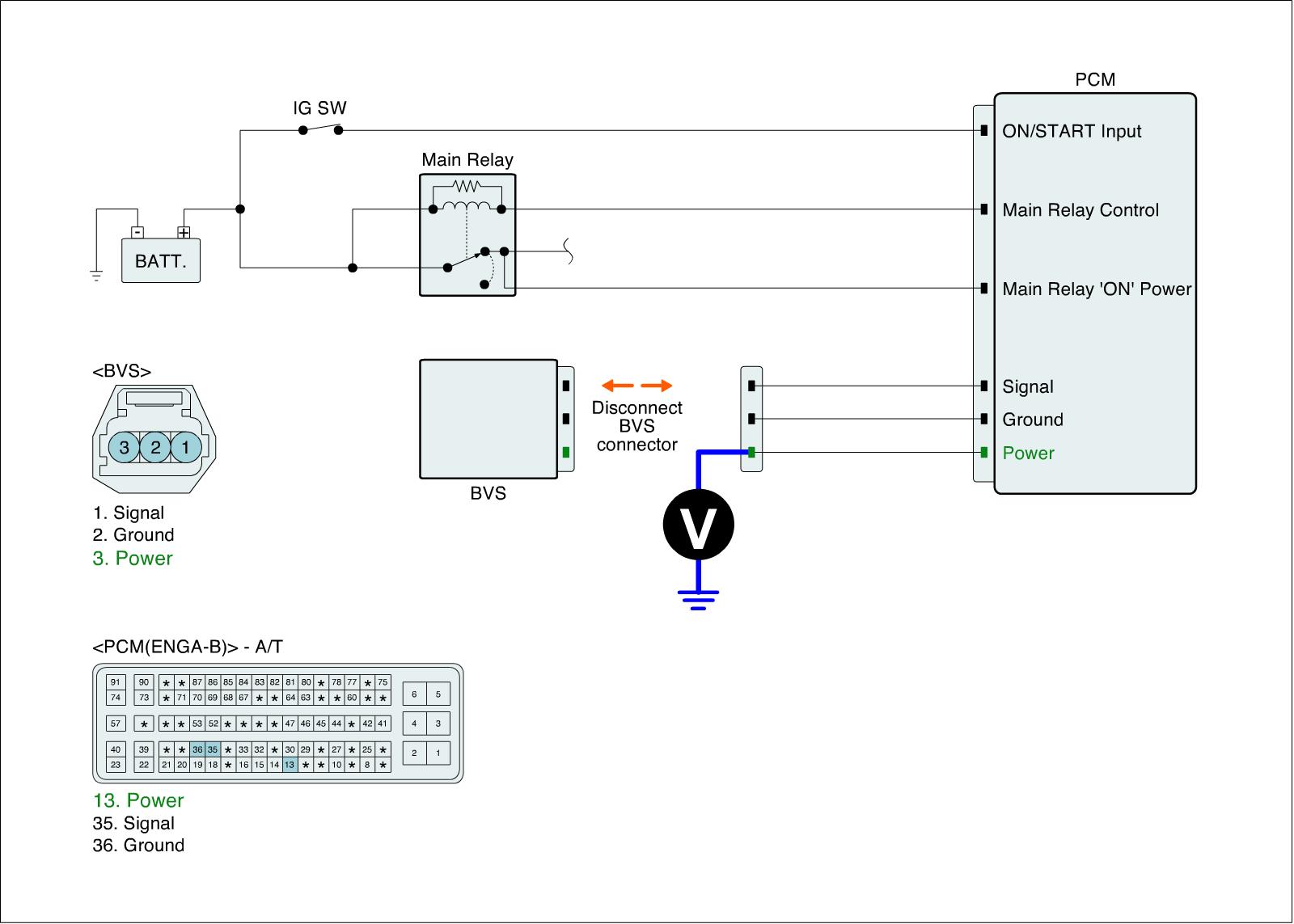

4. Measure the voltage between power terminal of BVS harness connector and chassis ground.

Specification :Approx 5V

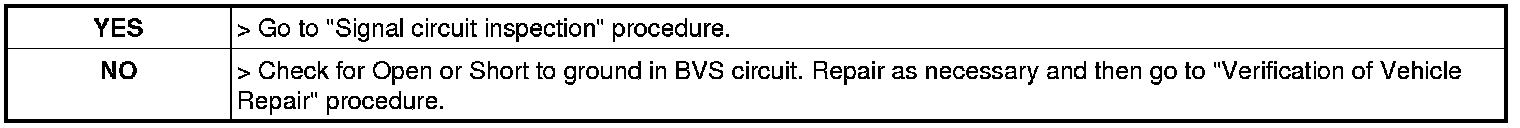

5. Is the measured voltage within specification ?






Signal Circuit Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect BVS connector.
3. IG KEY "ON"

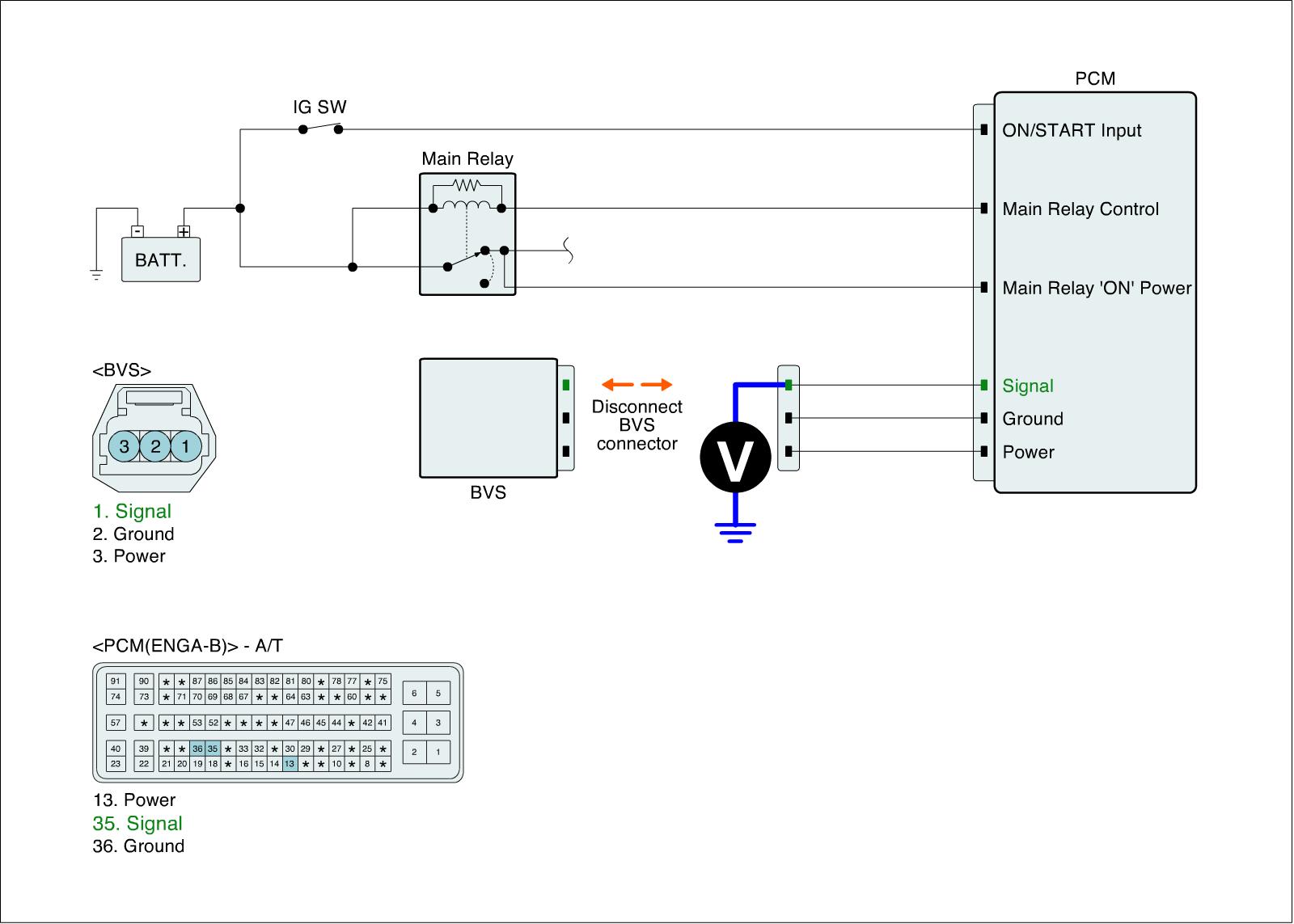

4. Measure the voltage between signal terminal of BVS harness connector and chassis ground.

Specification :Approx 5V




5. Is the measured voltage within specification ?
