Component Inspection





Engine Control
P0262 Cylinder 1 Injector Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect injector connector.
3. Measure resistance between control terminal and power terminal of the injector connector. (Component side)
Specification :

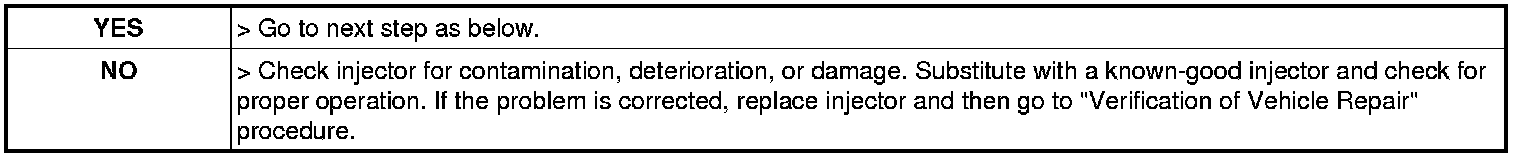

4. Is resistance within the specification?
