Component Inspection





Engine Control
P0079 Exhaust Valve Control Solenoid Circuit Low (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect oil control valve connector.

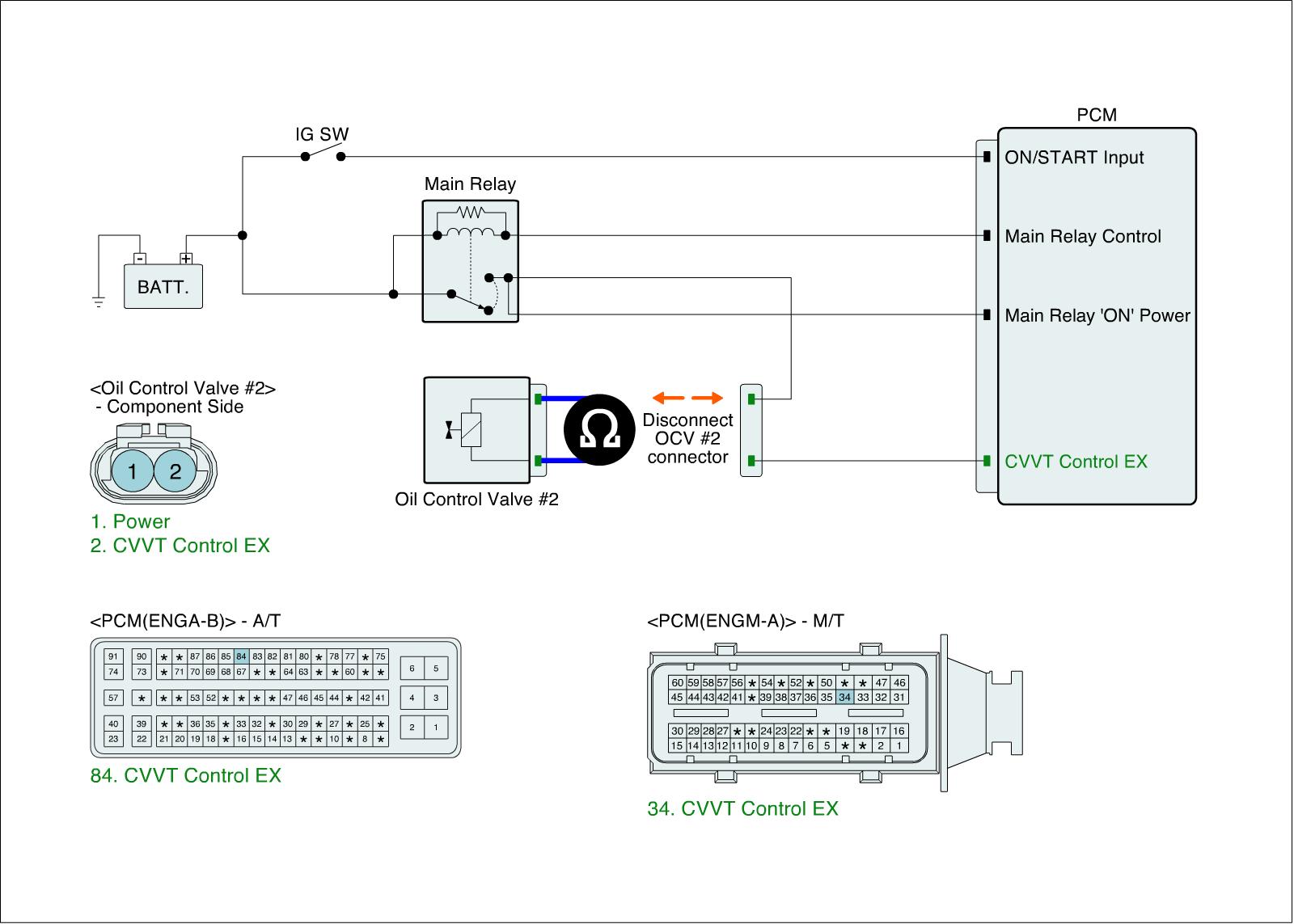

3. Measure resistance between power terminal and control terminal of the solenoid connector(Component side).
Specification :

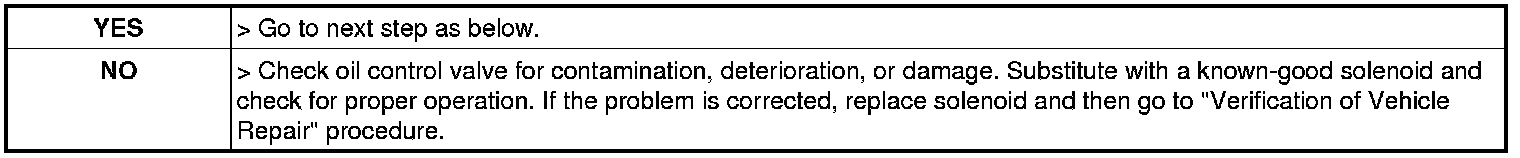

4. Is resistance within specification?
