Component Inspection

Engine Control
P0077 Intake Valve Control Solenoid Circuit-High (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".

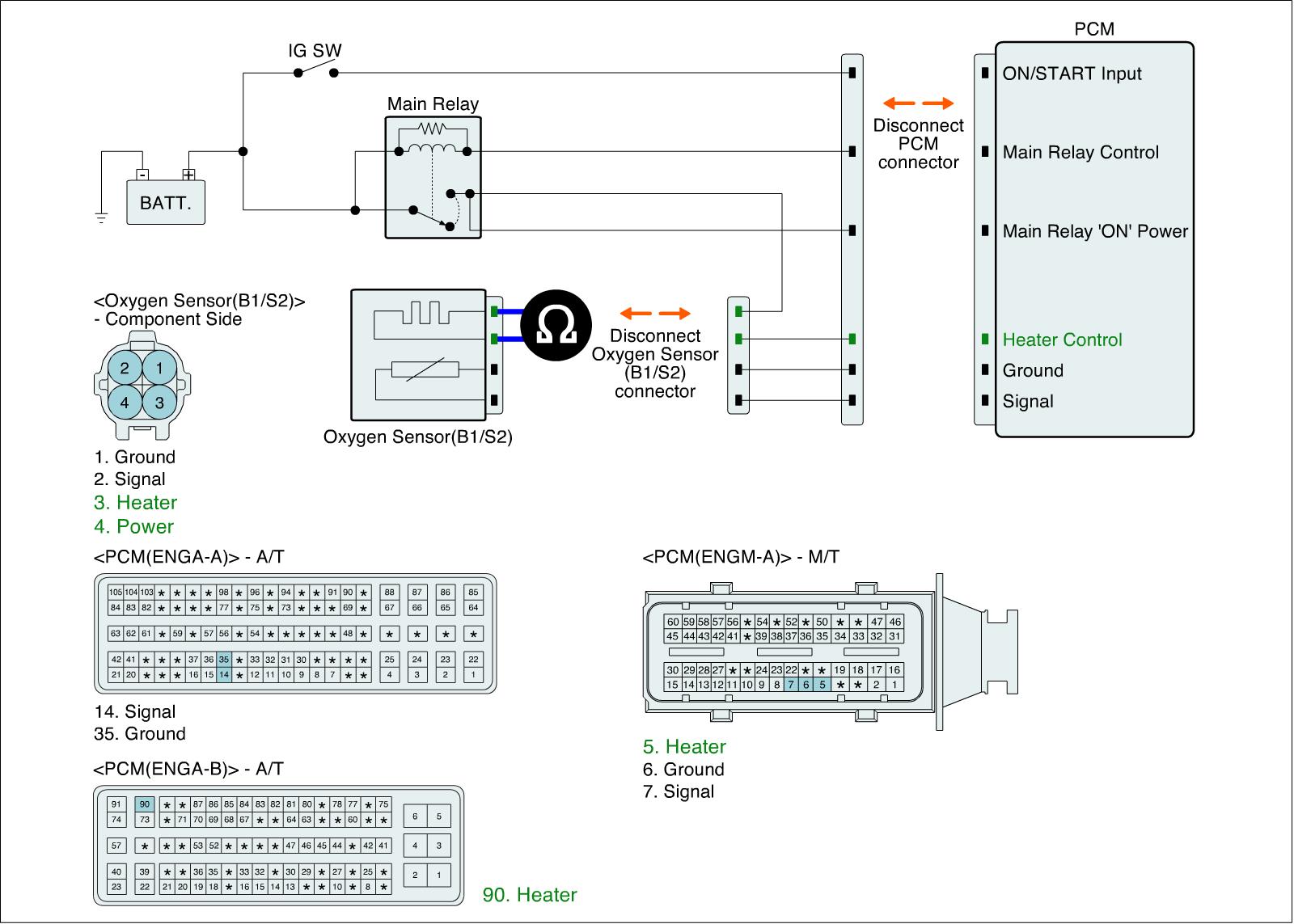

2. Measure resistance between power terminal and control terminal of the sensor connector.(Component side)
Specification
