General Information

Motor Driven Power Steering
C1702 Variant Coding Error - General Information

Component Location





General Description

EPS CM has a various parameter setting for different steering feeling according to applied region. EPS CM reads a predefined parameter setting according to applied region. Therefore operation to select applied region has to be done.

DTC Description

EPS CM sets this code if selection of applied region isn't done.

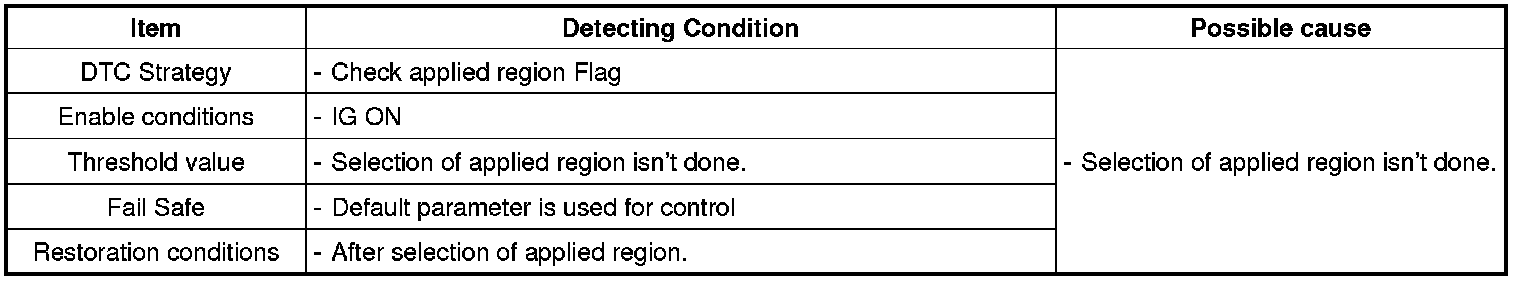

DTC Detecting Condition
