C1527 Gear R Switch Error - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found ?






Signal Circuit Inspection

Open or Short Check
1. IG ON, ENG OFF.
2. Shift a gear into R-range.

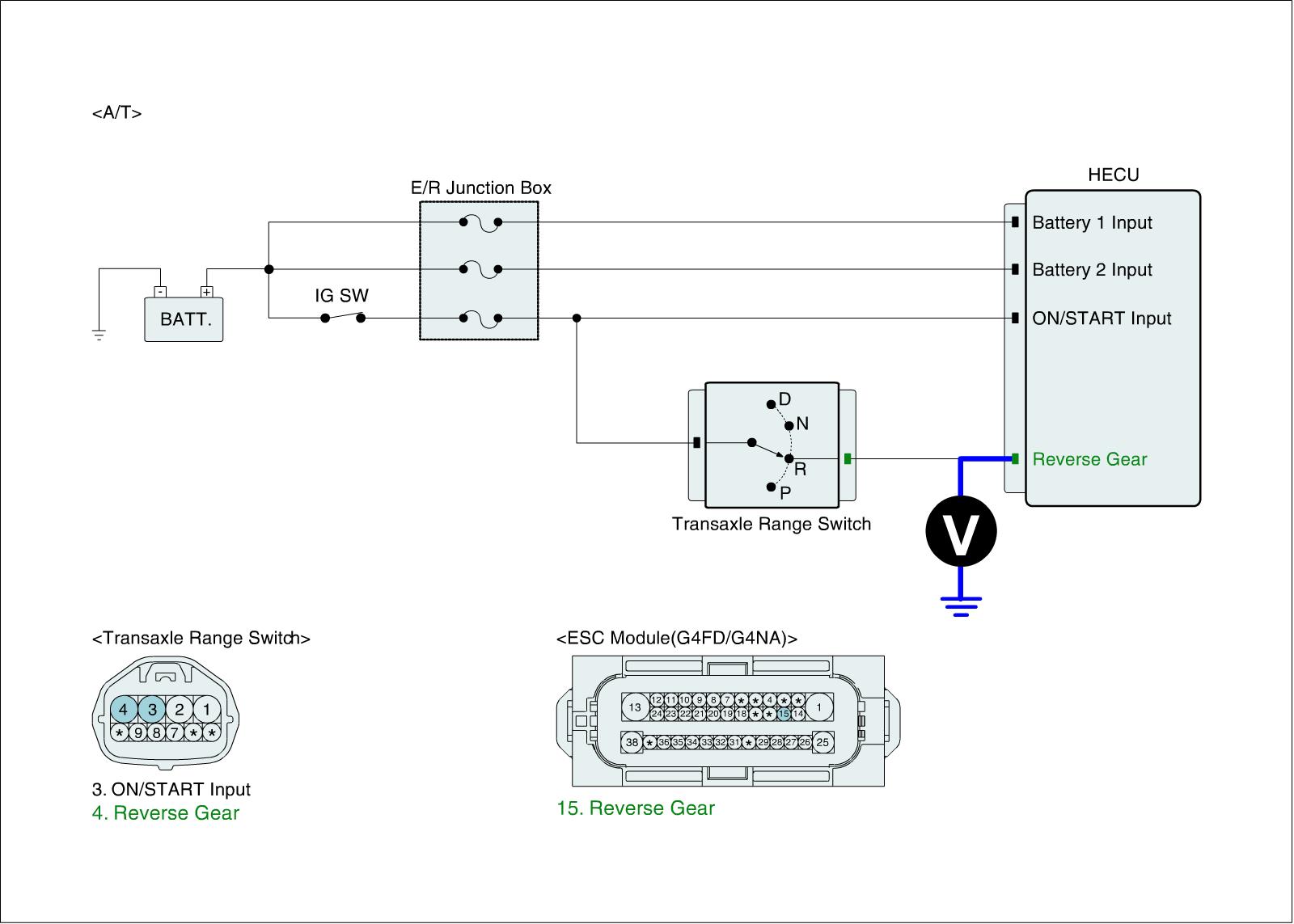

3. Measure voltage between R-range(Transaxle range switch) signal terminal of the HECU harness connector and chassis ground

Specification :Approx. B+

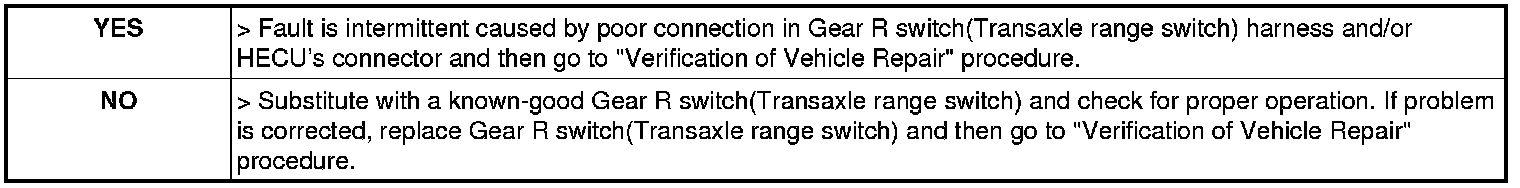

4. Is the measured value within specifications ?
