Component Inspection

Electronic Stability Control
C1282 Yaw Rate & Lateral G Sensor-Electrical - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG "OFF".
2. IG "ON".
3. After connecting GDS, check DTC on the GDS.
4. Using GDS, Erase the DTCs.
5. Using a GDS, Check DTC present.

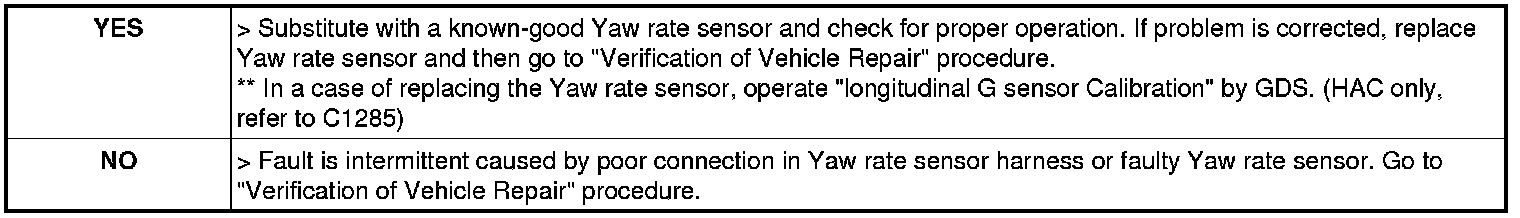

6. Is the same DTC shown ?
