General Information

Airbag(Event #1)
B2502 Passenger Airbag Telltale Lamp Failure - General Information

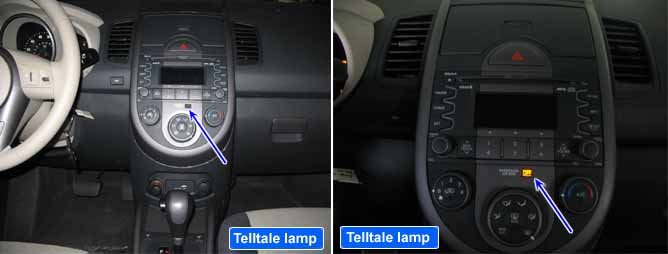

Component Location





General Description

When the passenger sest are unoccupied, the Telltale Lamp lights up for the notice, and if passenger are occupied under seat,Telltale Lamp are goes off automatically.

DTC Description

DTC B2502 is recorded when occurrence of a malfunction in the Telltale indicator Lamp system.

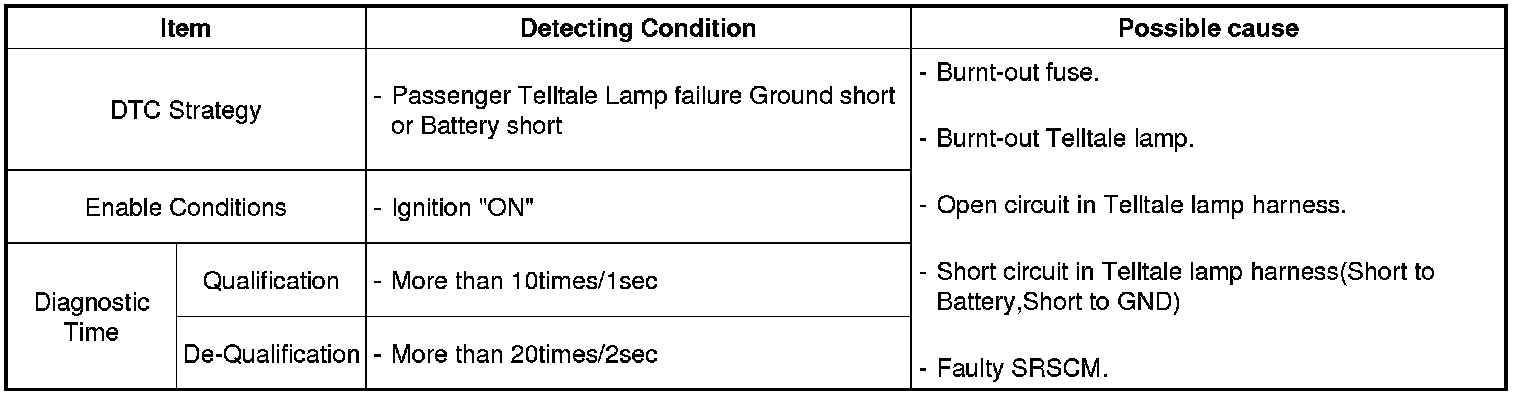

DTC Detecting Condition

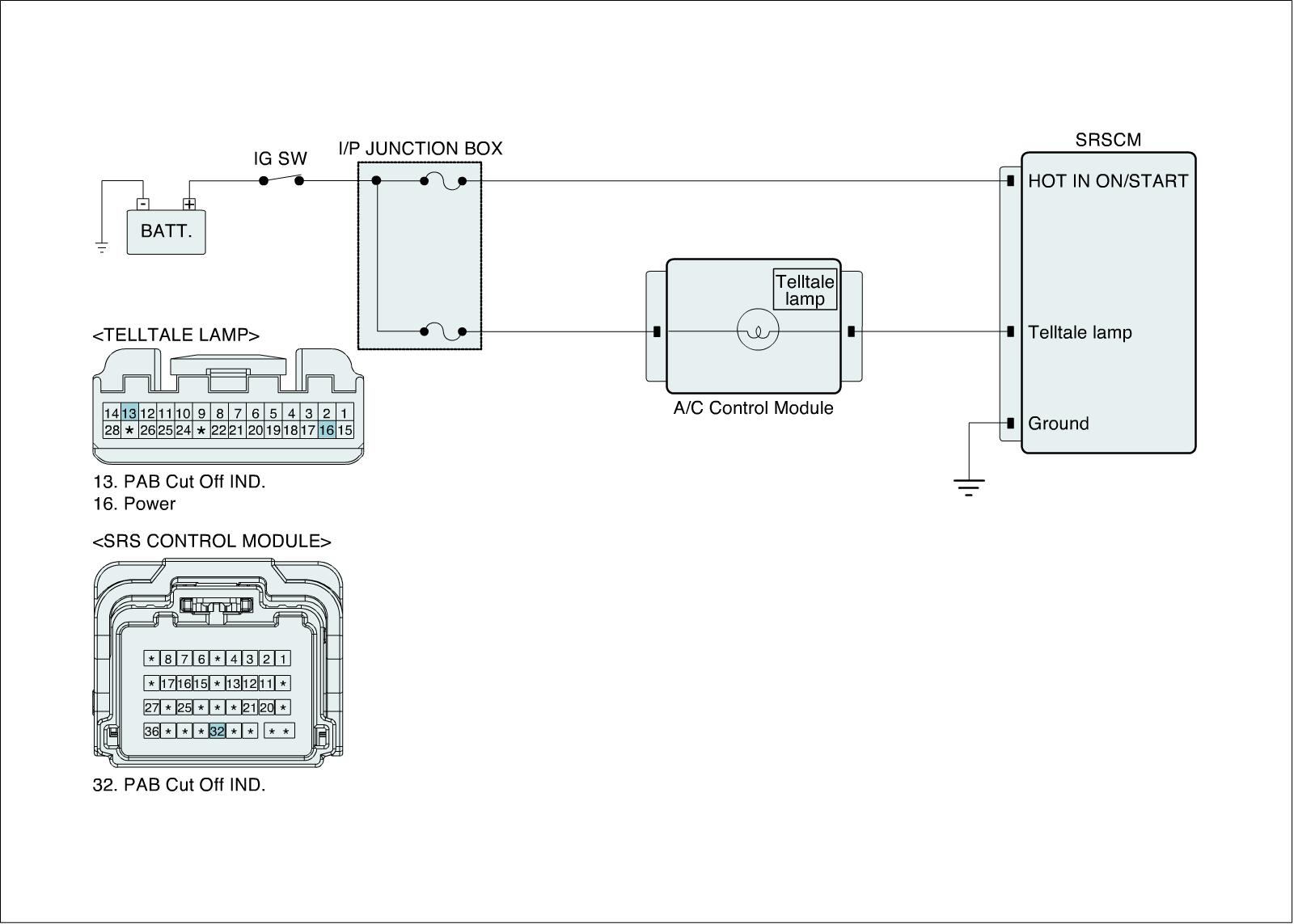

Diagnostic Circuit Diagram
