General Information

Power Distribution Module
B1991 Immobilizer TX Short Circuit To Ground - General Information

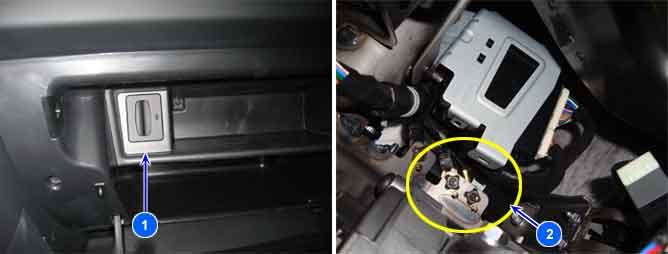

Component Location




1. FOB HOLDER
2. PDM

General Description

This is DTC which is related with communication error between PDM and other units.

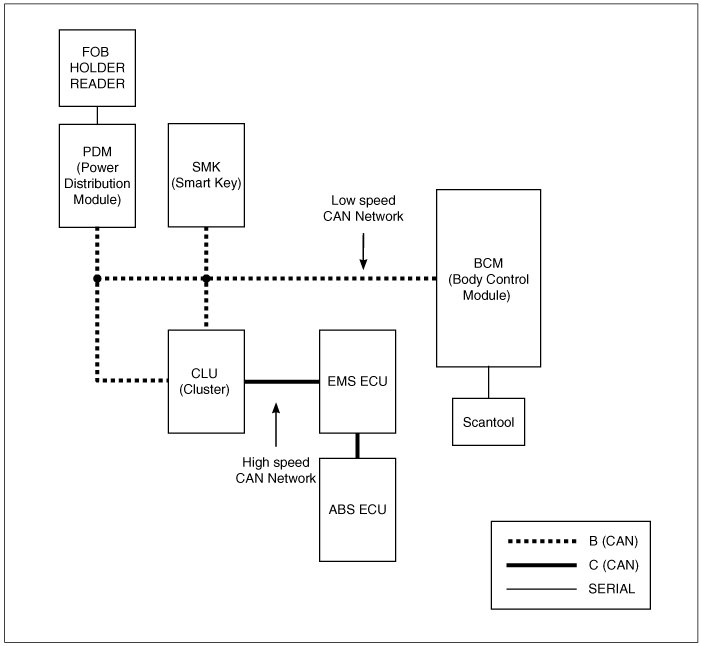

** Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.
After insert the fob into the fob holder, press SSB button. Then, the communication state between the fob and the immobilizer is inputted to PDM.






DTC Description

This code is outputted when the immobilizer data circuit is shorted to ground.
(In this case, it is not possible to get authorization although the fob is in the holder.)

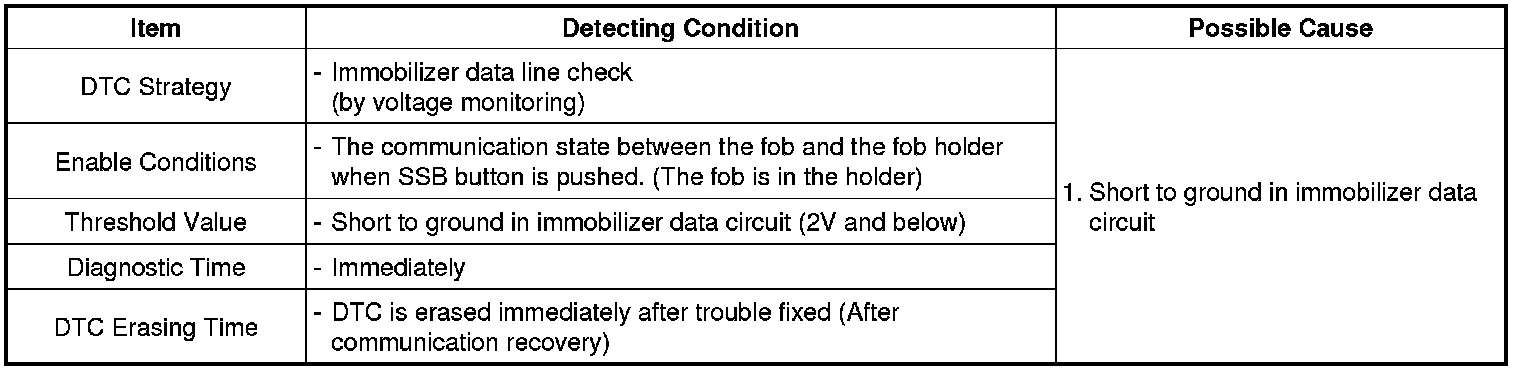

DTC Detecting Condition

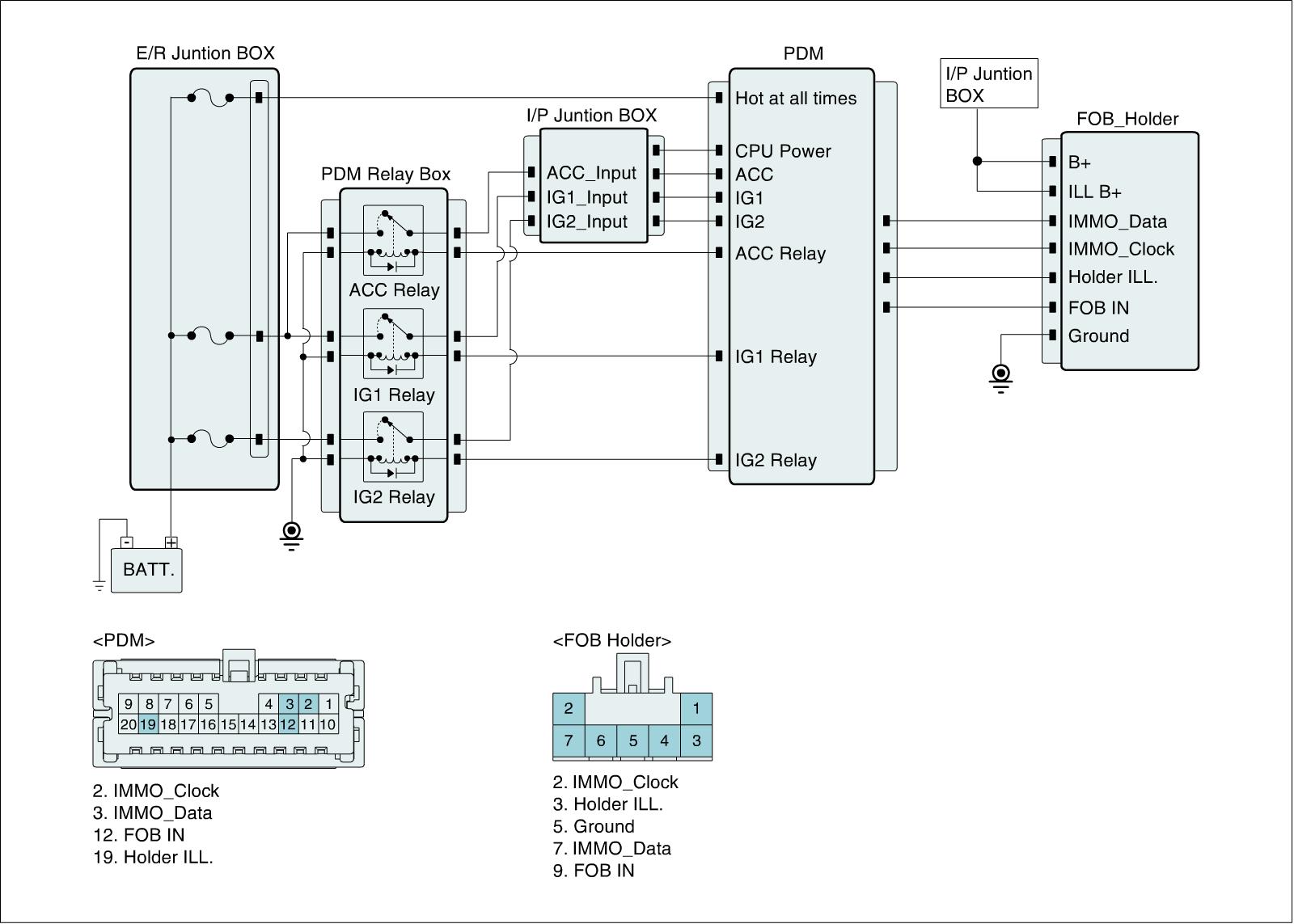

Diagnostic Circuit Diagram





Signal Waveform & Data

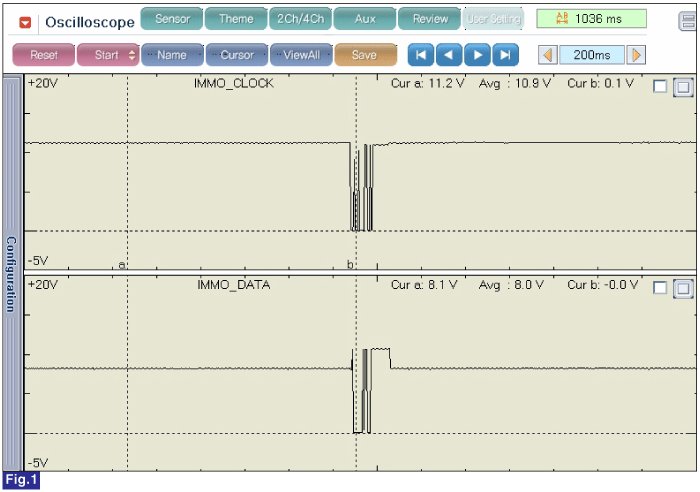

Fig.1) IMMO_CLOCK & IMMO_DATA signal waveform
