General Information

Power Distribution Module
B1987 Sub Micom Failed - General Information

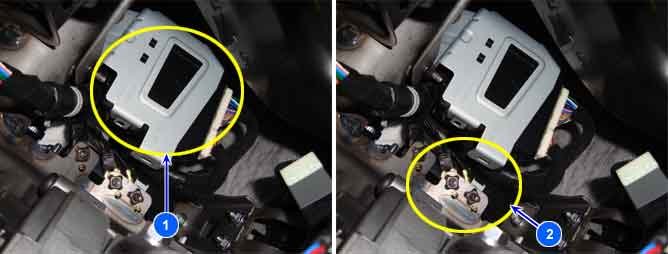

Component Location




1. Smartkey Module
2. PDM

General Description

This is DTC which is related with communication error between PDM and other units.

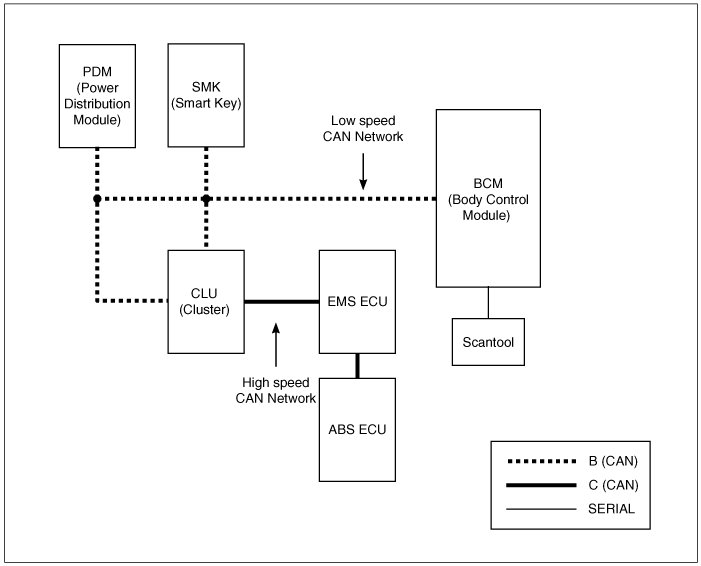

** Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.






DTC Description

This code reports the malfunction of NEC MCU inside PDM. This is the case which there is the NEC MCU communication error.

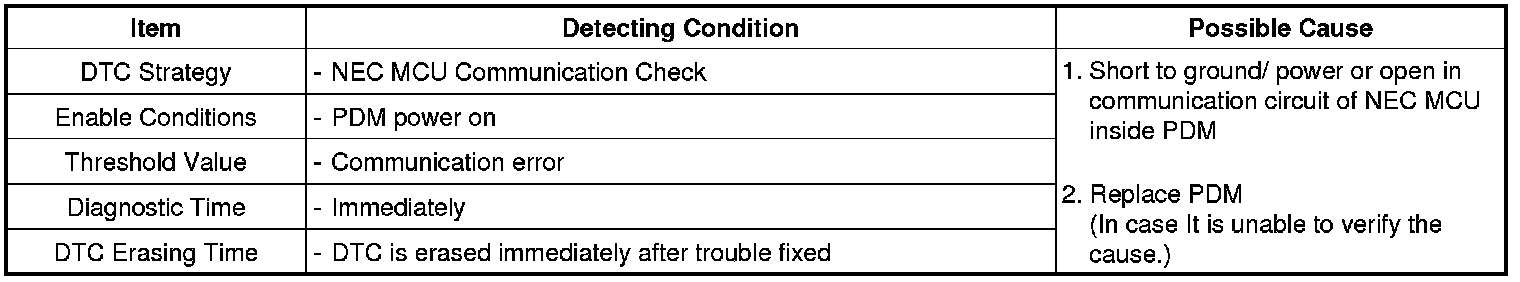

DTC Detecting Condition

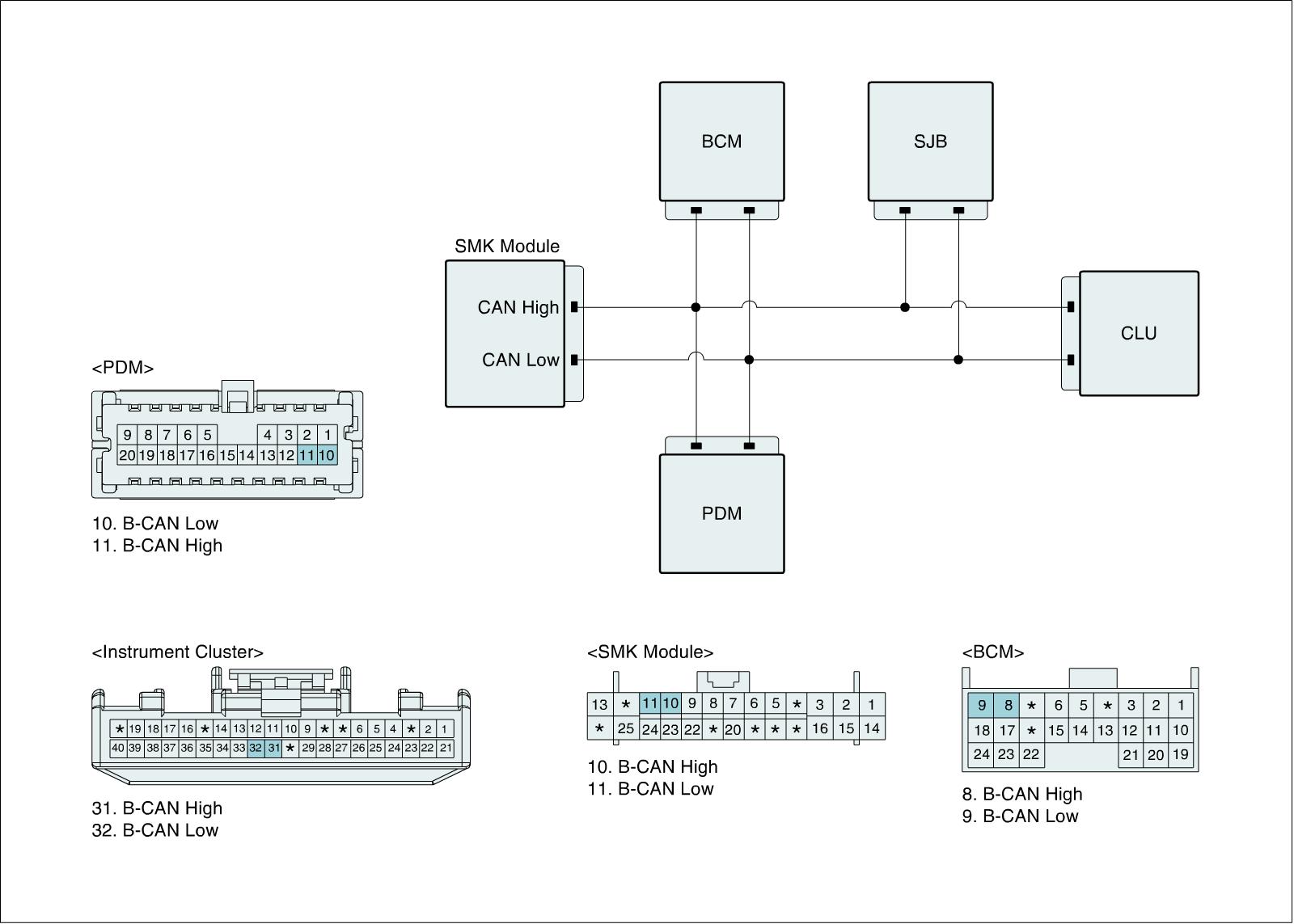

Diagnostic Circuit Diagram





Signal Waveform & Data

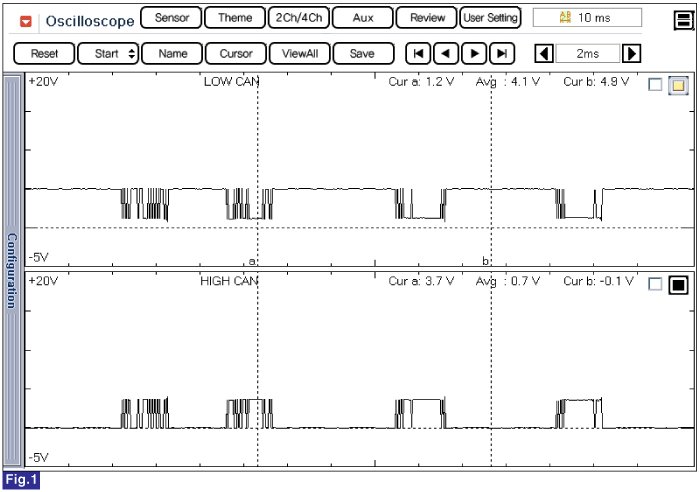

Fig.1) Signal waveform of CAN Low and HIGH
Fig.2) CAN BUS VOLTAGE LEVEL (LOW SPEED CAN)
