B1689 CAN Time-out PDM - Scantool Diagnostics

Monitor GDS data

Check DTC
1. Check DTC with GDS.
2. Check DTC related CAN communication is set on PDM.
3. If there is DTC related PDM, Check the DTC according to troubleshooting guide
4. Repair and erase the DTC with GDS.

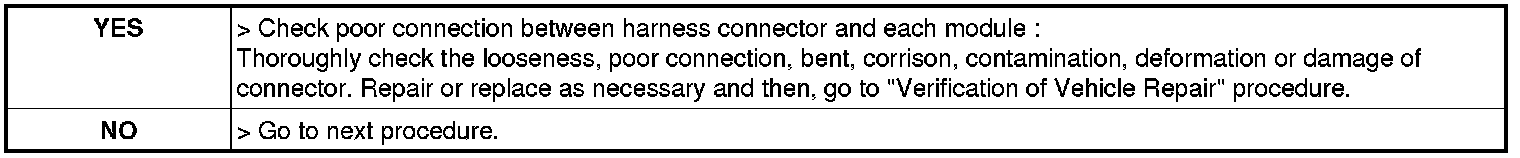

5. Is the DTC erased?
