Component Inspection

Power Distribution Module
B1603 CAN Bus Off - Inspection/Repair:_:Component Inspection

Component Inspection

Check internal errors of CAN communication in PDM.
1. Check internal errors of CAN communication in PDM.
2. Connect GDS.
3. IG "ON" and engine "OFF".
4. Select "DTC Analysis" mode.

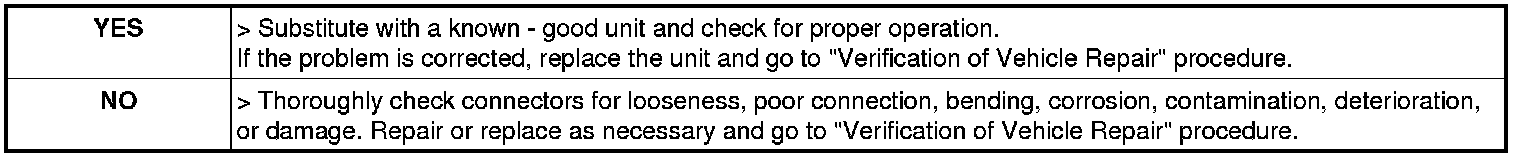

5. Is the code erased?
