B1208 Intake Potentiometer Open (Low) - General Information

Componet Location





General Description

The actuator contains a motor that changes intake door position and a potentiometer that monitors position of the door. When the driver changes the air intake switch, the ECU operates intake door motor to turn the intake door to the intended position. (in the FRESH mode, the intake door is closed. In REC mode, the intake door is opened) During operation the potentiometer delivers an intake door position to the A/C ECU.

DTC Description

DTC B1208 sets if the Intake Actuator Sensor signal is at or below 0.1V for 0.3 seconds.

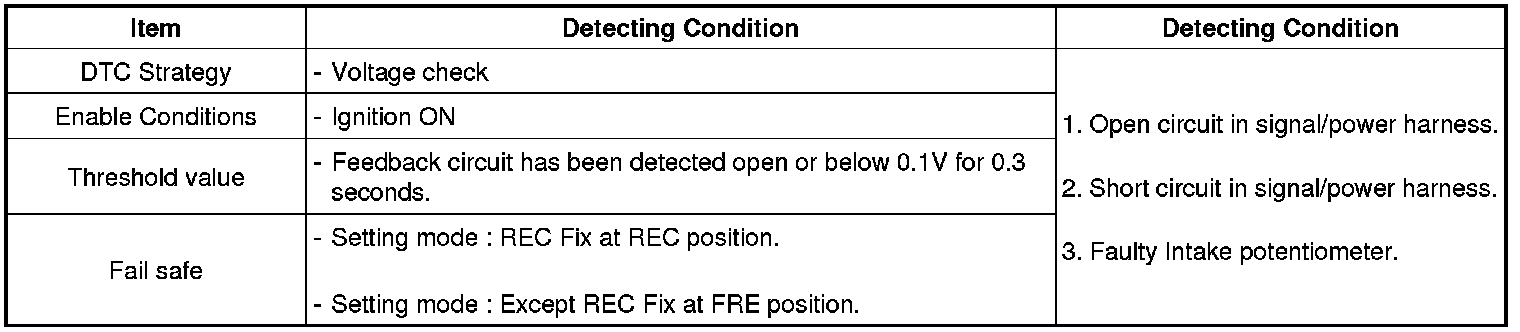

DTC Detecting Condition





Specification

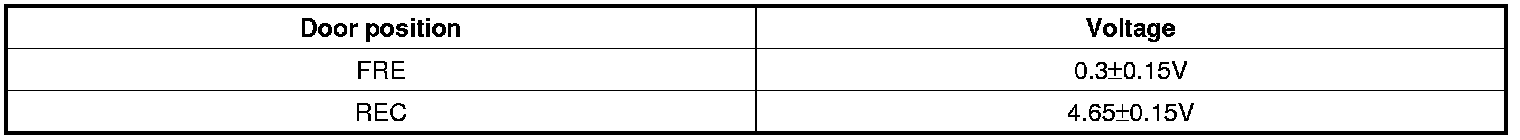

** Voltage value of Intake potentiometer as a function of position of Intake door






Diagnostic Circuit Diagram
