Component Inspection

Air Conditioner
B1203 Heater Water Temperature Sensor Short(Low) - Inspection/Repair:_:Component Inspection

Component Inspection

Check Water temp.sensor
1. Ignition "OFF".
2. Disconnect Water temp.sensor and Connect A/C control unit main harness connector.

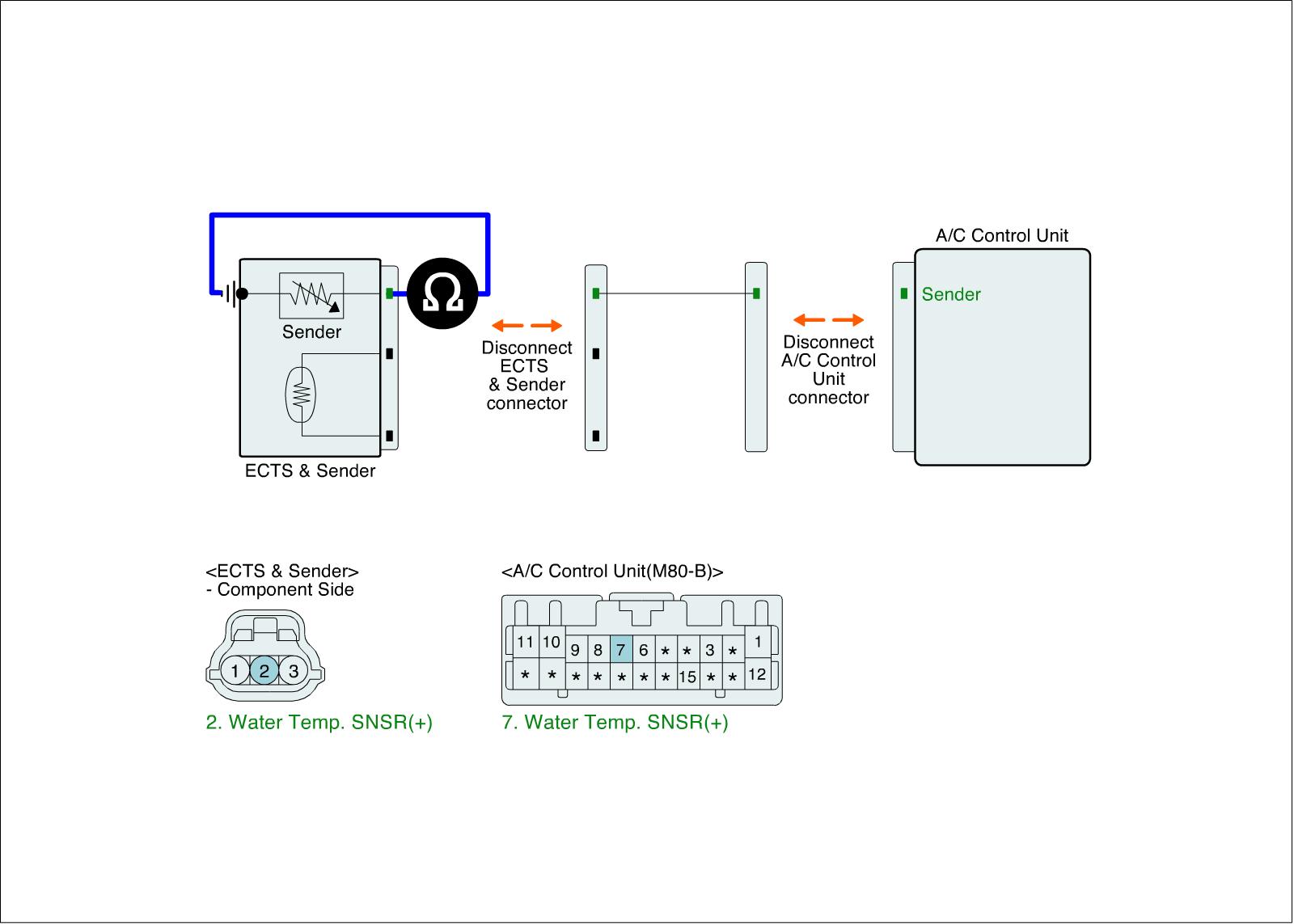

3. Measure resistance between Signal(+) terminal of Water temp.sensor harness connector and Sensor ground harness connector.

Specification :Refer the specifications in fig.1)




Fig.1)

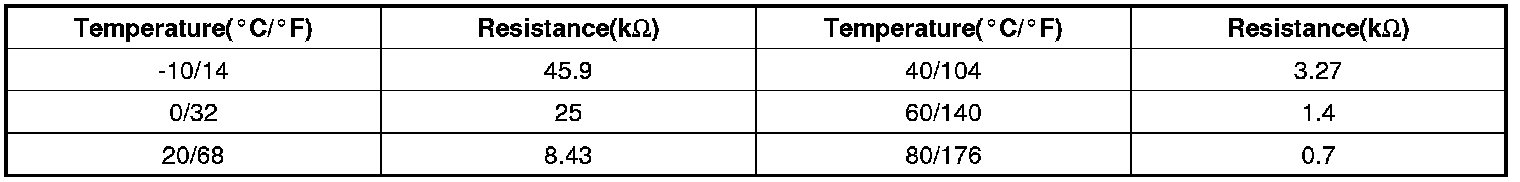

Fig.1) ** Specifications : Resistance value of Water sensor as a function of temperature.
** The actual value may differ from it according to various engine condition.

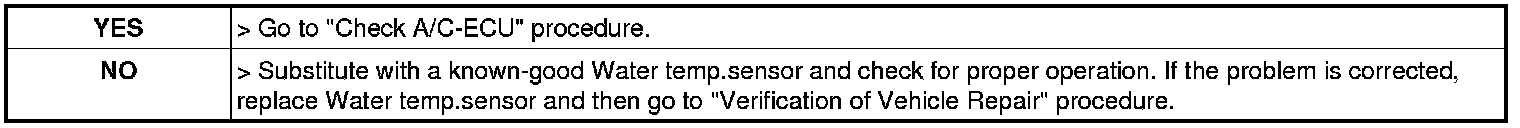

4. Is "resistance" display near the specified value?





Check A/C-ECU
1. Ignition "OFF".
2. Disconnect Water temp.sensor and Connect A/C control unit main harness connector.
3. Ignition "ON"(ENGINE "OFF").

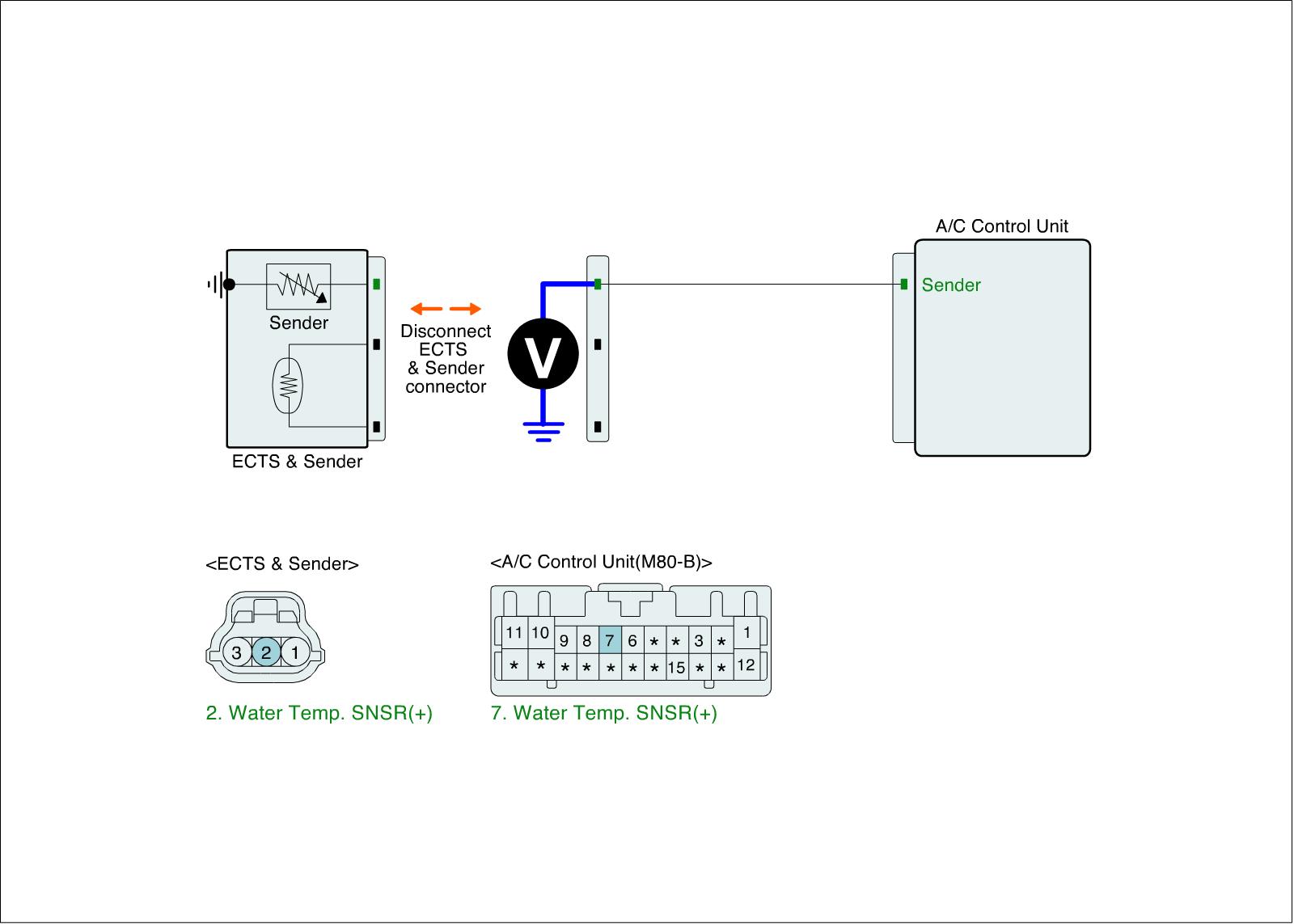

4. Measure voltage between Signal(+) terminal of Water temp.sensor harness connector and chassis ground.

Specification :Approx. 5V

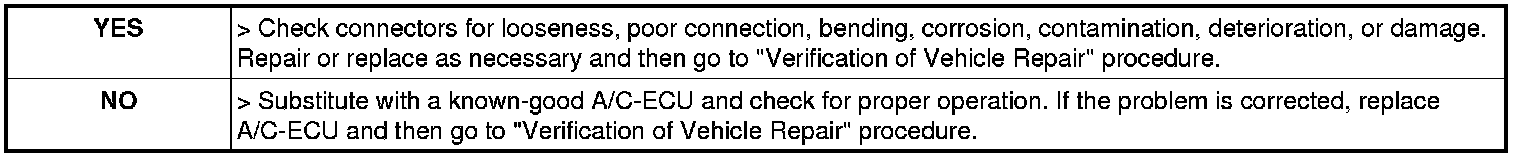

5. Is "voltage" display near the specified value?
