A/T

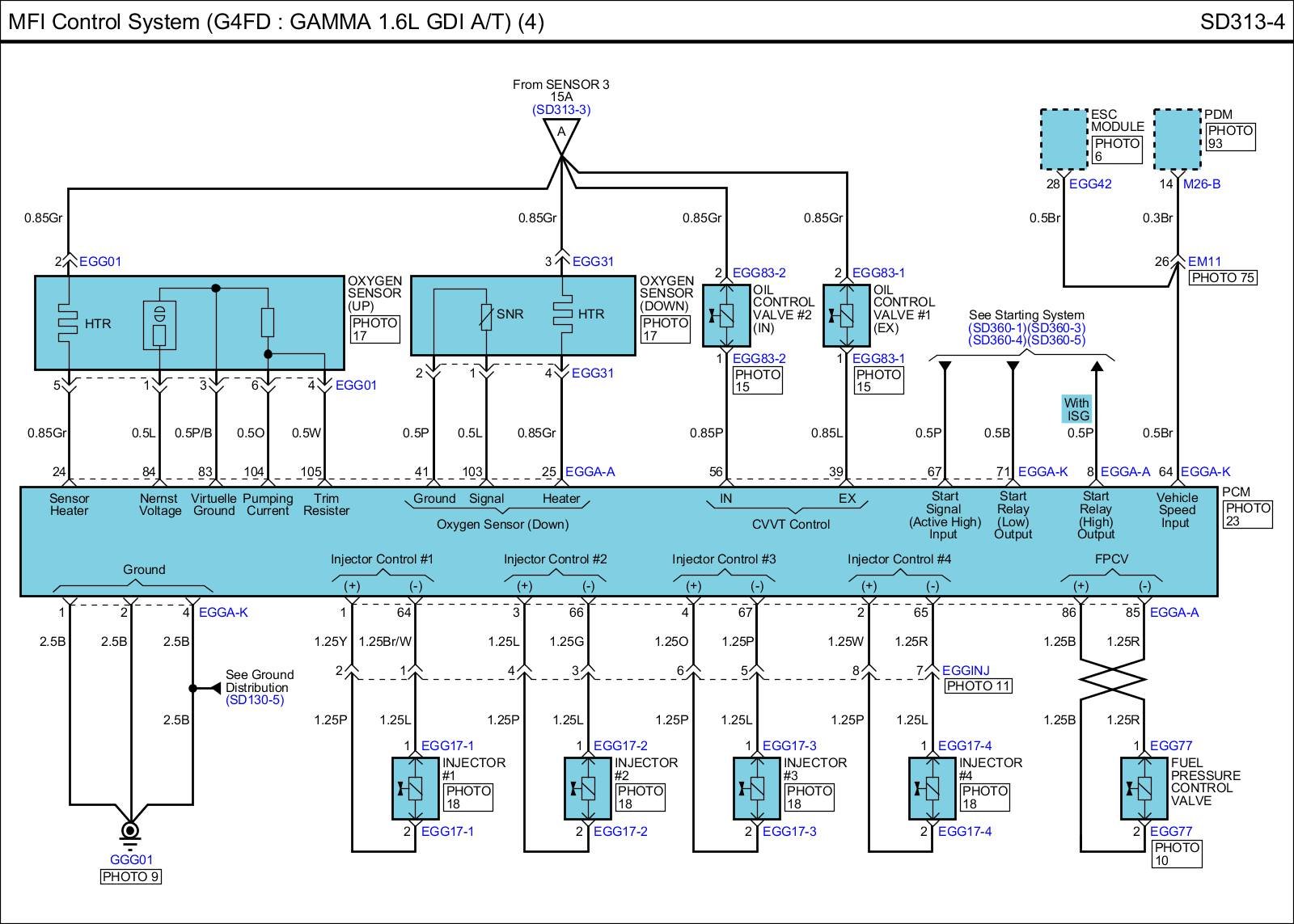

SD313-4 MFI Control System (4):

MFI Control System (9) Connector Pin Outs:

MFI Control System (10) Connector Pin Outs:

MFI Control System (11) Connector Pin Outs:

Next Diagram A/T

Previous Diagram A/T

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
