Part 1

Removal

CAUTION:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:
- Mark all wiring and hoses to avoid misconnection.
- To release the fuel system pressure before removing the engine assembly, start the engine with the fuel pump relay removed. And then turn off the ignition switch after engine stops.

1. Remove the engine cover (A).




2. Disconnect the battery terminals (A). Disconnect the negative terminal first.

Tightening torque
(+) terminal :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)
(-) terminal (without battery sensor):
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)
(-) terminal (with battery sensor):
4.0 - 6.0N.m (0.4 - 0.6kgf.m, 3.0 - 4.4lb-ft)

3. Remove the air cleaner assembly.
(1) Remove the air duct (B).
(2) Disconnect the breather hose (C).
(3) Disconnect the air intake hose and then remove the air cleaner assembly (D).

Tightening torque
Hose clamp bolt:
2.9 - 4.9N.m (0.3 - 0.5kgf.m, 2.2 - 3.6lb-ft)
Air cleaner assembly bolts:
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)





NOTE:
- Install the air intake hose while the plate of the hose clamp must be in line with the stopper of the hose.
- Install the air intake hose while the groove of hose must be matched to the protrusion of the throttle body.




4. Disconnect the ECM connector (A).




5. Remove the ECM (A) and then remove the battery (B).

Tightening torque
ECM bracket bolts & nut :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)




6. Remove the battery tray (A).

Tightening torque :
8.8 - 13.7N.m (0.9 - 1.4kgf.m, 6.5 - 10.1lb-ft)




7. Remove the under cover (A).

Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)








8. Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed.
9. Disconnect the radiator upper hose (A) and lower hose (B).








10. Recover the refrigerant and then remove the high pressure pipe and low pressure pipe (A).




11. Disconnect the (+) cable (A), connector (B) from the fuse/relay box.




12. Disconnect the wiring connectors and harness clamps, and remove the wiring and protectors from the cylinder head and intake manifold.
(1) The A/C compressor switch connector (A) and the alternator connector (B)




(2) The intake OCV (Oil control valve) connector (A) and the exhaust OCV (Oil control valve) connector (B)




(3) The ignition coil connectors (A), the injector extension connector (B), the VIS (Variable intake system) connector (C) and the PCSV (Purge control solenoid valve) connector (D)




(4) The FPCV (Fuel pressure control valve) connector (A), the intake CMPS (Camshaft position sensor) connector (B) and the exhaust CMPS (Camshaft position sensor) connector (C)




(5) The oxygen sensor connectors (A) and the condenser connector (B)




(6) The ECTS (Engine coolant temperature sensor) connector (A)




(7) The ETC (Electronic throttle control) connector (A) and the MAPS (Manifold absolute pressure sensor) & IATS (Intake air temperature sensor) connector (B)




(8) The knock sensor connector (A), the CKPS (Crankshaft position sensor) connector (B), the front connector (C), the starter connector (D) and the oil pressure connector (E)




13. Remove the transaxle wire harness connectors and control cable from the transaxle. .
14. Disconnect the fuel hose (A) and the PCSV (Purge control solenoid valve) hose (B).




15. Disconnect the brake booster vacuum hose (A) and the heater hose (B).





NOTE:

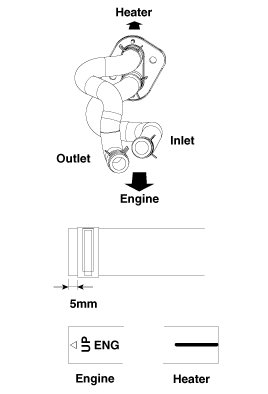

Install the heater hoses as shown illustrations.
