Cylinder Head Assembly: Specifications

Cylinder Head

Install the cylinder head bolts with washers.

Tighten the 10 cylinder head bolts, in several passes, in the sequence shown.

Tightening torque 29.4 Nm (3.0 kgf.m, 21.7 lb-ft) + 90° + 90°






CAUTION: Always use new cylinder head bolts.

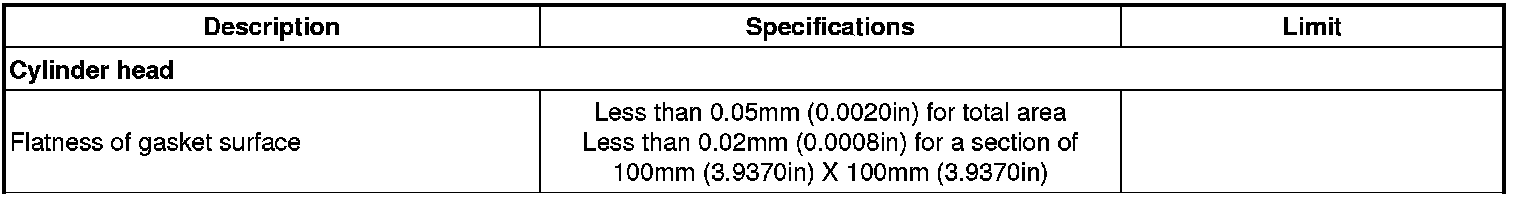

SURFACE VARIATION - WARPAGE






Camshaft Bearing

Install the camshaft bearing caps with the order below.

Tightening torque

1st step
M6 bolt 5.9 N.m (0.6 kgf.m, 4.3 lb-ft)
M8 bolt 9.8 N.m (1.0 kgf.m, 7.2 lb-ft)

2nd step
M6 bolts 11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)
M8 bolts 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)






For Intake Manifold specifications, refer to Specifications. Specifications

For Exhaust Manifold specifications, refer to Specifications. Specifications
