Kia
>>
2012
>>
Soul L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Fluid Pump, A/T
>>
Oil Pump Unit (OPU) - With ISG (Idle Stop & Go) System
Oil Pump Unit (OPU) - With ISG (Idle Stop & Go) System

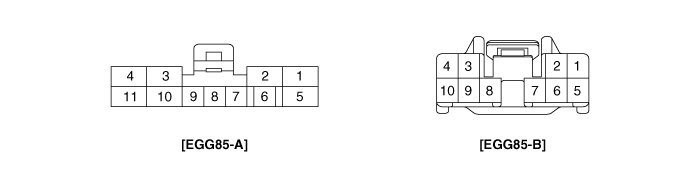

Oil Pump Unit (OPU) Connector

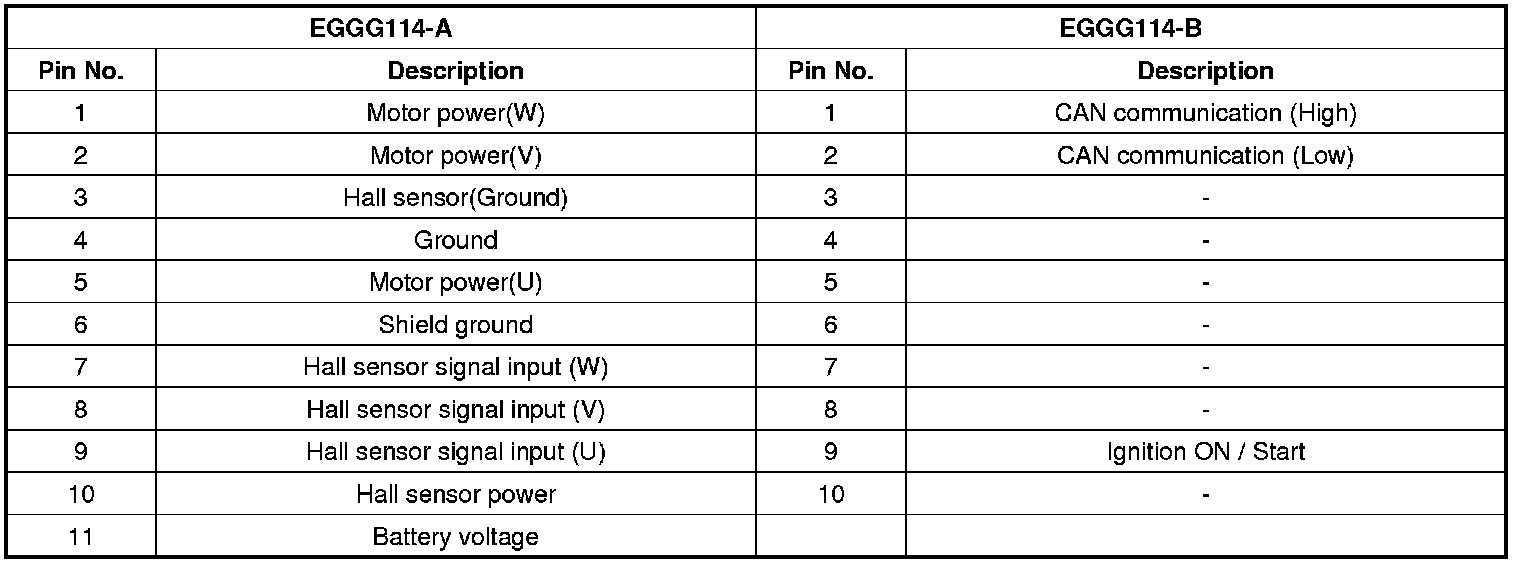

OPU Connector Terminal Function

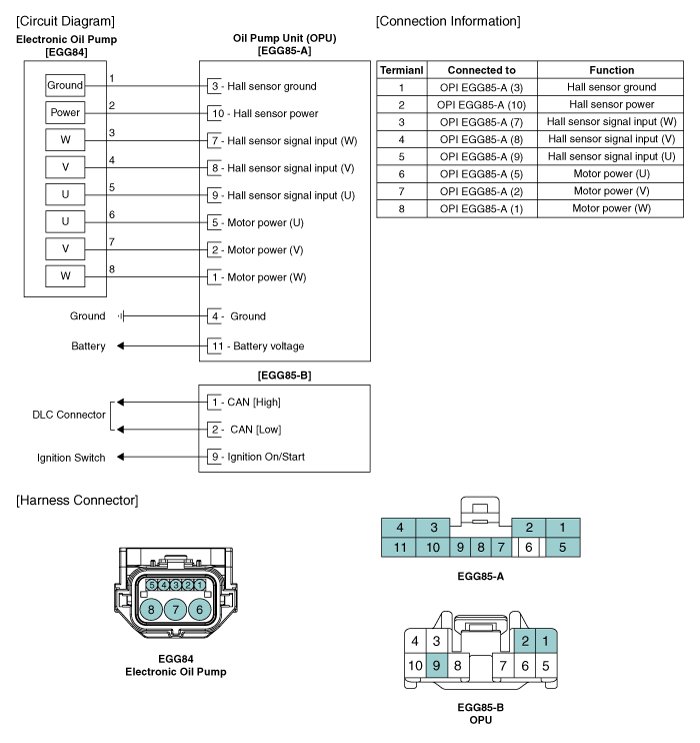

Circuit diagram
