Repair Procedures

Replacement

Front Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. After loosening the mounting screw, remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Door Scuff Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Using a screw driver or remover, remove the front door scuff trim (A).
[Front]




2. Remove the rear seat cushion.

3. Using a screw driver or remover, remove the rear door scuff trim (A).
[Rear]




4. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items :
A. Front door scuff trim & Rear door scuff trim
2. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
3. To remove the seat belt anchor pretensioner (C), keep on pushing the lock pins (A) as arrow direction.
And then remove the seat belt after pushing the lock pin (B).




4. Using a screwdriver or remover, remove the center pillar lower trim (A).




5. After loosening the mounting bolts, then remove the center pillar upper trim (B).




6. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items :
A. Rear seat assembly

B. Rear door scuff trim
C. Transverse trim
2. After loosening the mounting screws, then remove the luggage side trim (A).




3. After loosening the mounting screws, then remove the rear pillar trim (A).




4. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Luggage Side Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

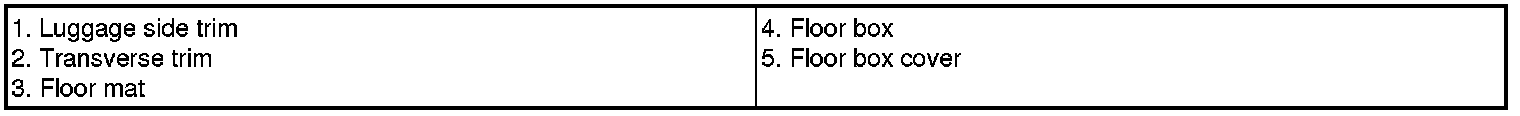

1. Remove the rear seat.

2. Remove the rear door scuff trim.
3. Remove the transverse trim.
4. After loosening the mounting screws, remove the luggage side trim.
5. Installation is the reverse of removal.
