Repair Procedures

Removal

Center Fascia Panel Replacement
1. Disconnect the negative (-) battery terminal.

CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

2. Using a screwdriver or remover, remove the center speaker grill (A).




3. Put the SST (09840-1E100) into the space between the center fascia panel (A) and crash pad.

NOTE:
- Be care not to damage the center facia and crash pad.
- Put the SST into the area as indicated by the arrows.
- To prevent the scratch, apply protective tapes to the center fascia panel and its related parts.

4. Separate the center fascia panel (A) from the crash pad by pulling the SST (09840-1E100).





Audio Assembly Replacement
1. After loosening the mounting screws, then remove the heater control unit (A).




2. Disconnect the connectors (A).




3. After loosening the mounting screws, then remove the audio assembly (A).




4. Disconnect the connectors (A).
[Upper]




[Lower]






Disassembly

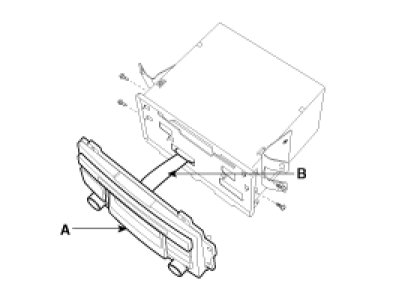

1. Disassemble the front panel(A) then disconnect the connector(B) between the unit and front panel.

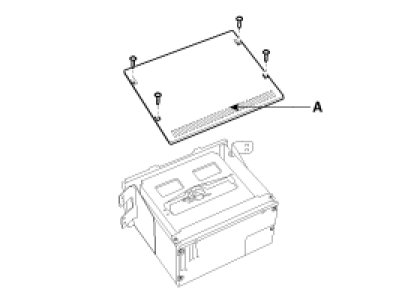

2. Remove the top cover(A) after loosening 4 screws.

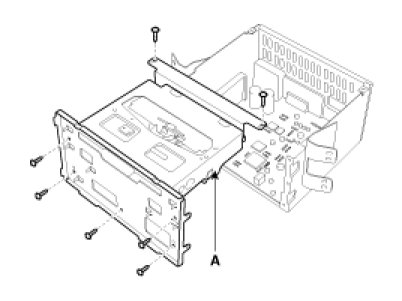

3. Disassemble the deck (A) from the unit after removing the connector and screws.






Reassembly

1. Reassemble the deck to the audio unit.
2. Reassemble the top cover.
3. Reassemble the front panel and connect the connector.

External Amplifier
1. Remove the right side trunk trim and disconnecting the connector.

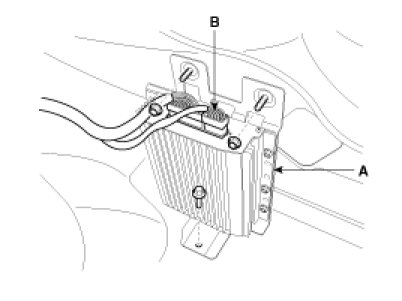

2. Remove the external amplifier(A) after loosening the nuts (2EA), bolt (1EA) and connector (B).






Installation

1. Connect the audio unit connectors and cable.
2. Install the audio unit.
3. Install the crash pad center facia panel.
4. Install the upper tray.
5. Check the audio system.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.

External Amplifier
1. Install the external amplifier and connect the external amplifier connector.
2. Install the right side trunk trim.
