Audio

Removal

Multi Media Jack

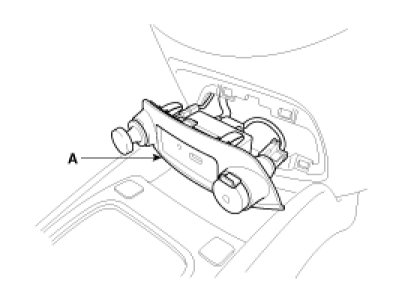

1. Remove the multi media jack assembly from main crash pad (A) by using the trim remover tool.

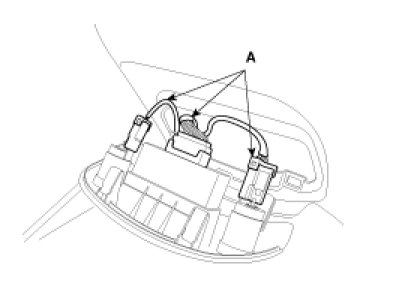

2. Disconnect the jack assembly connector(A)

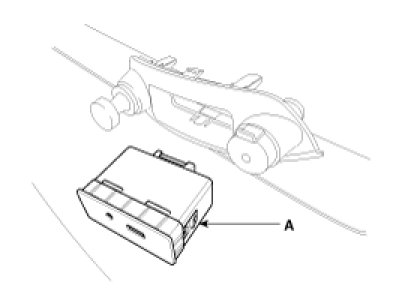

3. Remove the Multi Media Jack (A).






Installation

Multi Media Jack
1. Connect the Multi Media Jack connector.
2. Install the Multi Media Jack.

Inspection

1. Disconnect the negative(-) battery terminal.
2. Disconnect the Multi Media Jack connector after from the floor console.

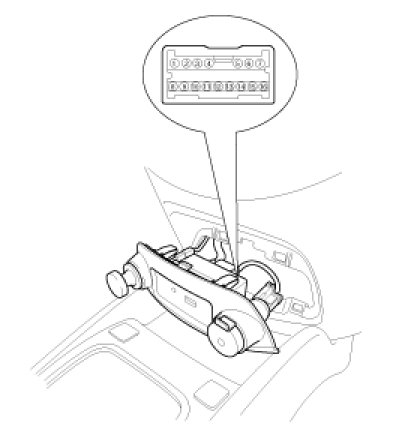

To inspect USB/IPOD port, check the voltage between NO.1 and 4 terminal of USB/iPod input port at AUX input.

Standard value :5V

To inspect AU Jack, check the voltage between NO.14 terminal of Jack output connector and NO.4 terminal of USB/iPod input port at AUX input.

Standard value :5V
