Scantool Diagnostics





Engine Control
U1111 Battery Sensor fault detected by ECU - Scantool Diagnostics

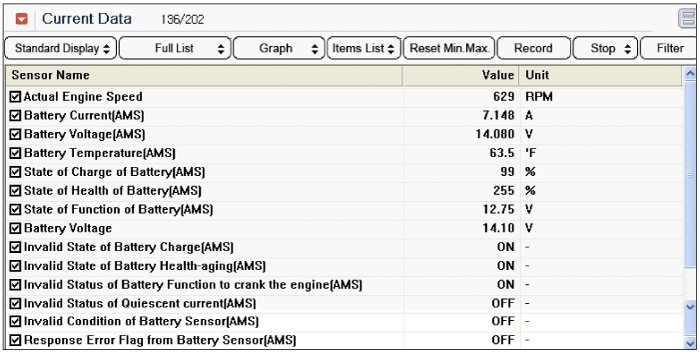

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Engine start.
3. Monitor "battery sensor" parameter on GDS.

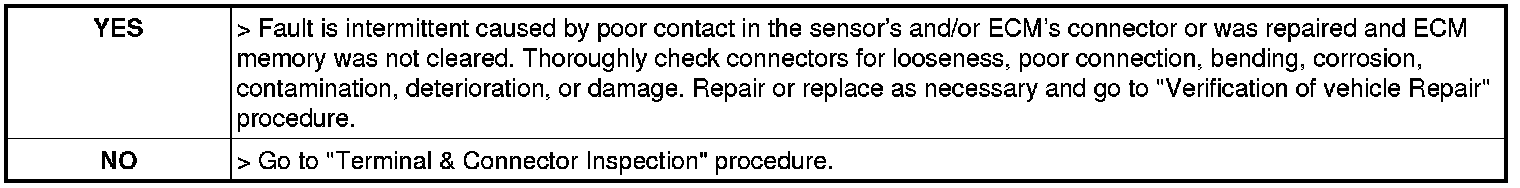

4. Are the parameters displayed correctly ?
