P2503 AMS No Battery Charge - General Information

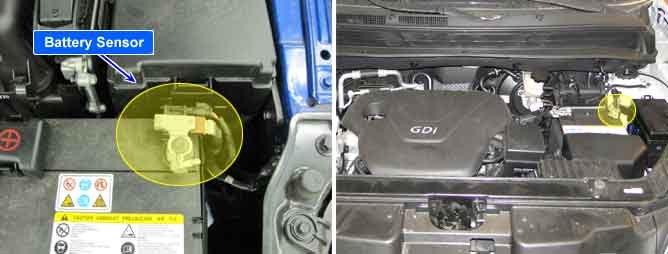

Component Location





General Description

Many control units have applied to vehicle as it becomes more eletrolnical. These units control their own system based on information from diverse sensors. Therefore necessity of common use of diverse sensor information and importance of stable power supply are gathering strength. Battery sensor is mounted on battery (-) terminal. It transmits battery voltage, current, temperature information to ECM. ECM controls generating voltage by duty cycle based on these signals.

DTC Description

ECM sets this code when the battery charging current from battery sensor is too low.

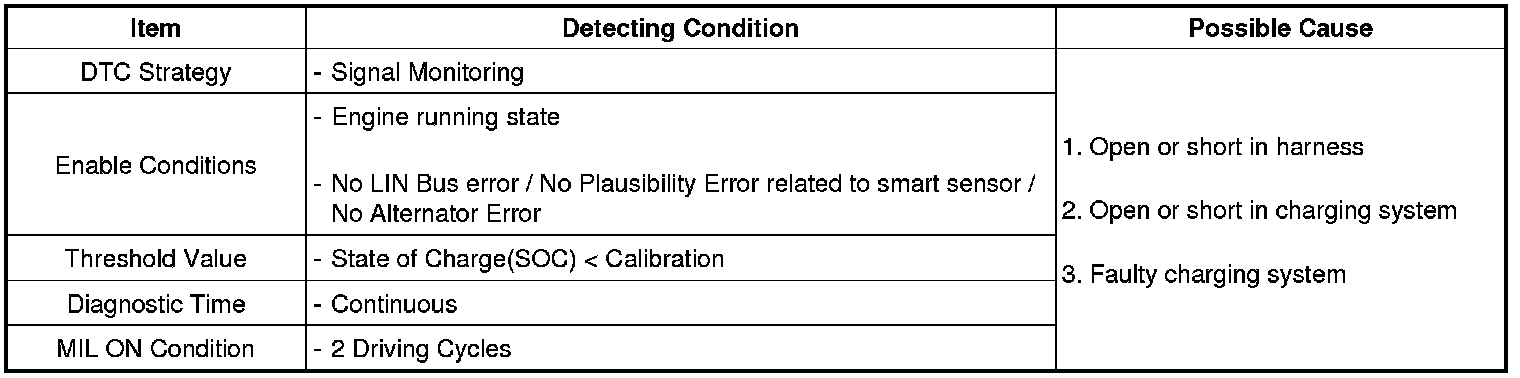

DTC Detecting Condition

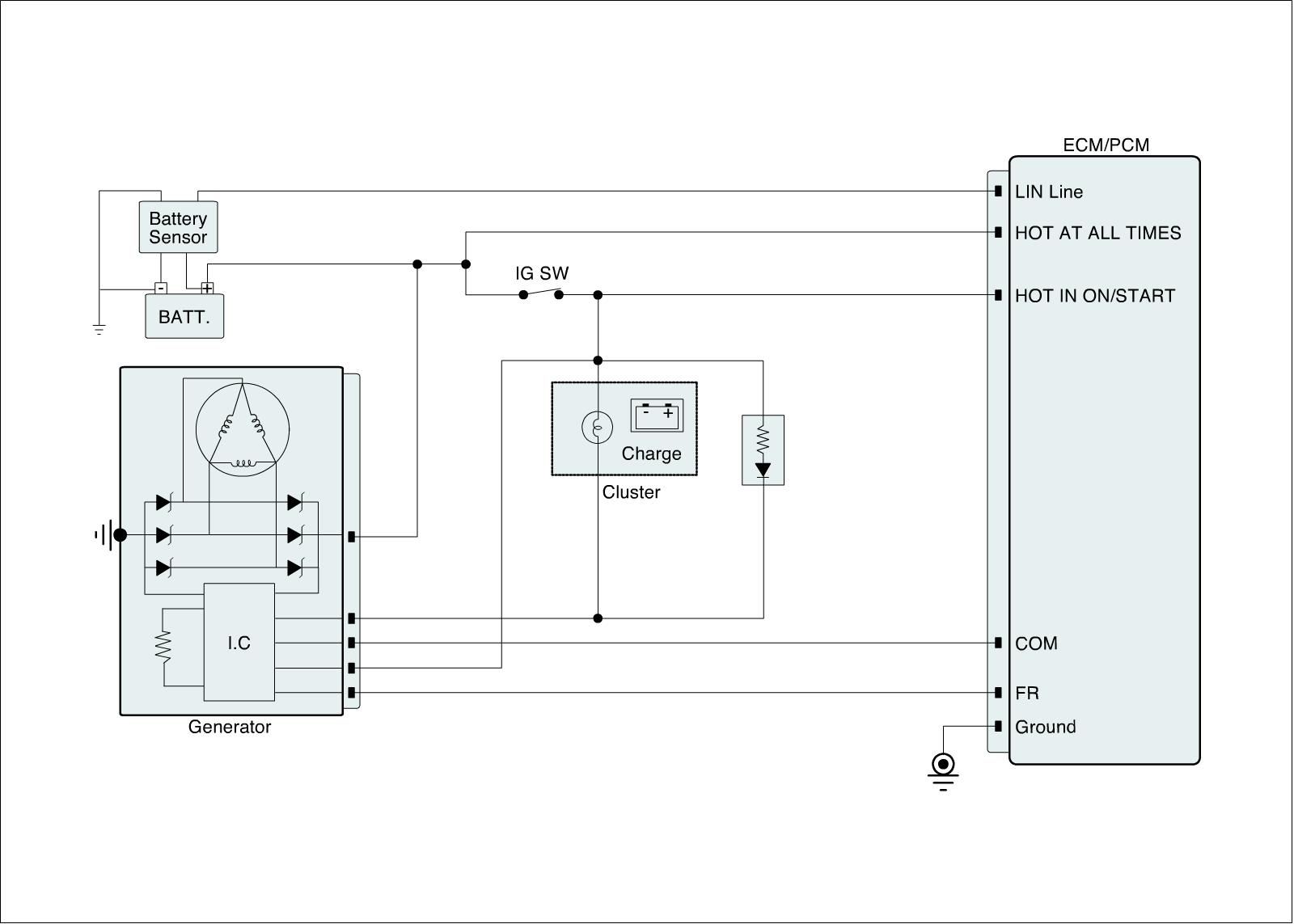

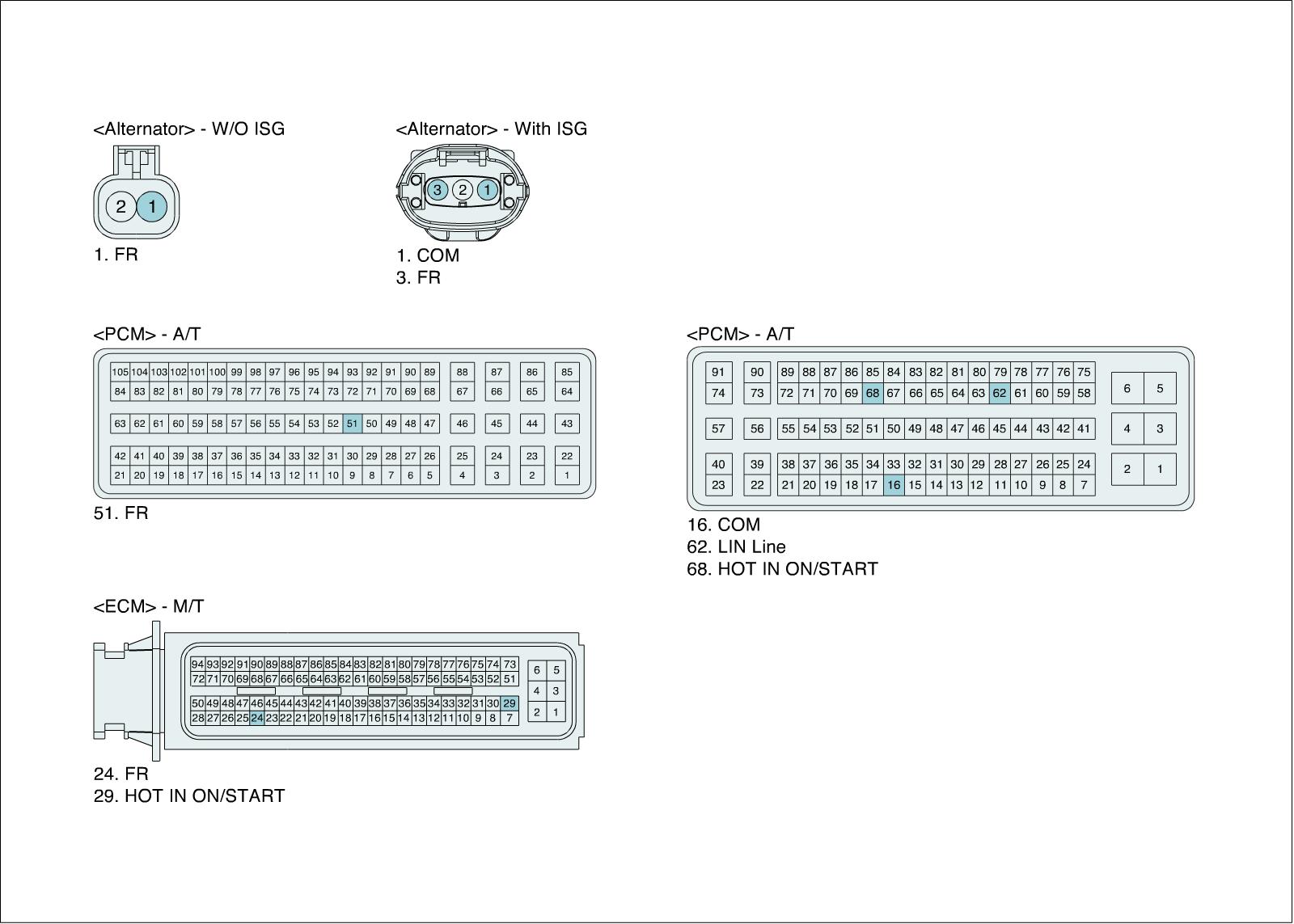

Diagnostic Circuit Diagram
