P2227 Barometric Pressure Circuit Range/Performance - Scantool Diagnostics

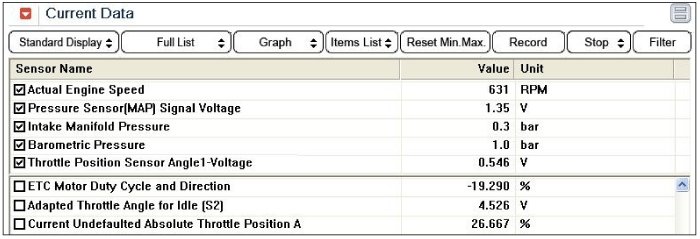

Monitor GDS Data

1. Connect GDS to DLC(Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "Barometic pressure" parameter on GDS

Specification :Approx. 1 atm is displayed

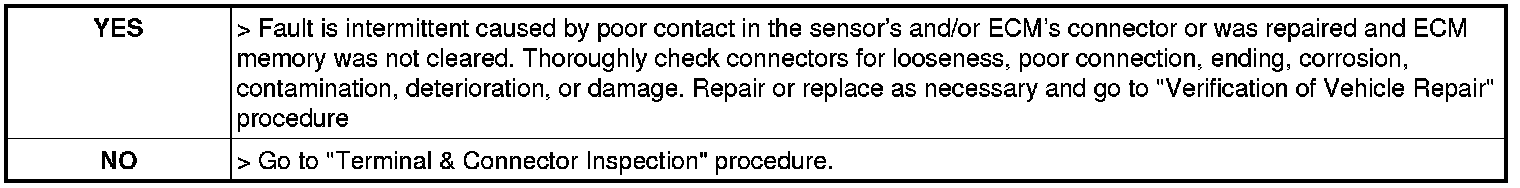

4. Is the "Barometic pressure" parameter displayed correctly?
