Scantool Diagnostics

Engine Control
P2128 Throttle/Pedal Position Sensor/Switch \'E\' Circuit High Input - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC)
2. Warm up the engine to normal operating temperature.
3. Monitor the "APS" parameters on the GDS.




Fig.1) Normal data of APS at idle.

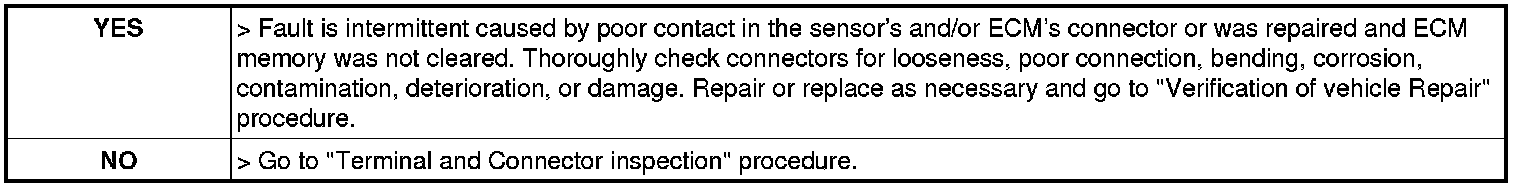

4. Is parameter displayed within specifications?
