General Information

Engine Control
P0642 Sensor Reference Voltage \'A\' Circuit Low - General Information

Component Location





General Description

ECM is activated by power supply. Signals from several sensors, such as CKPS and APS, is inputted to ECM. Comparing inputted siganals with control LOGIC saved at micro controller and EEPROM, ECM controlls engine as actuating injectors, solenoids and relays.
To guarantee accurate control, ECM performs SELF TEST, DIAGNOSIS of several sensors and actuators. And if serious trouble which affects vehicle performance occurrs, ECM sets DTCs.
At certain cases, ECM shuts down whole systems in order to prevent dangerous situation due to incorrect control.

DTC Description

P0642 is set when the voltage below 4240mV - minimum voltage of sensor power supply from ECM - is detected for more than 3sec. This code is due to the short to ground in sensor power circuit or the voltage problem inside of ECM.

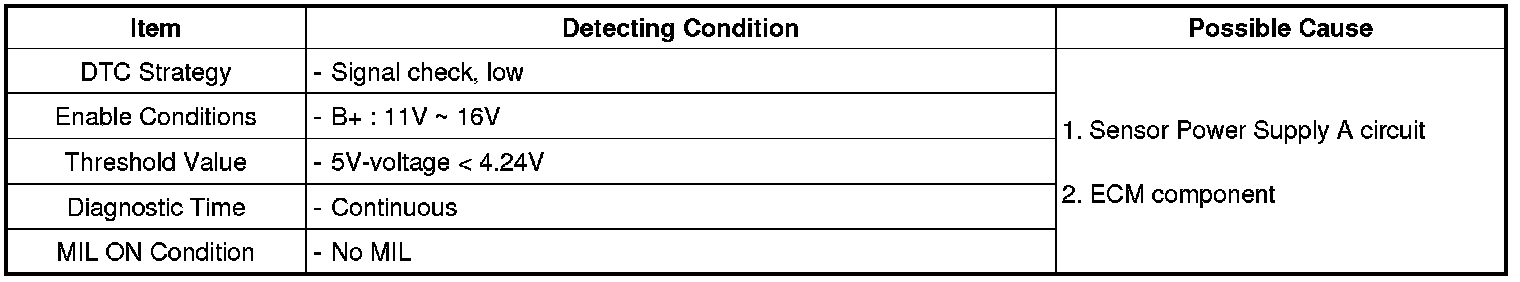

DTC Detecting Condition





Diagnostic Circuit Diagram
