General Information

Engine Control
P062E Fuel Injector Driver Circuit Performance (Bank 2) - General Information

Component Location





General Description

Injectors jet out high pressure fuel caculated by ECM to each cyliders. Direct and separated injections improve fuel efficiency and engine power.

DTC Description

ECM shows P062E when the drive circuit of GDI injectors (2, 3) is abnormal.

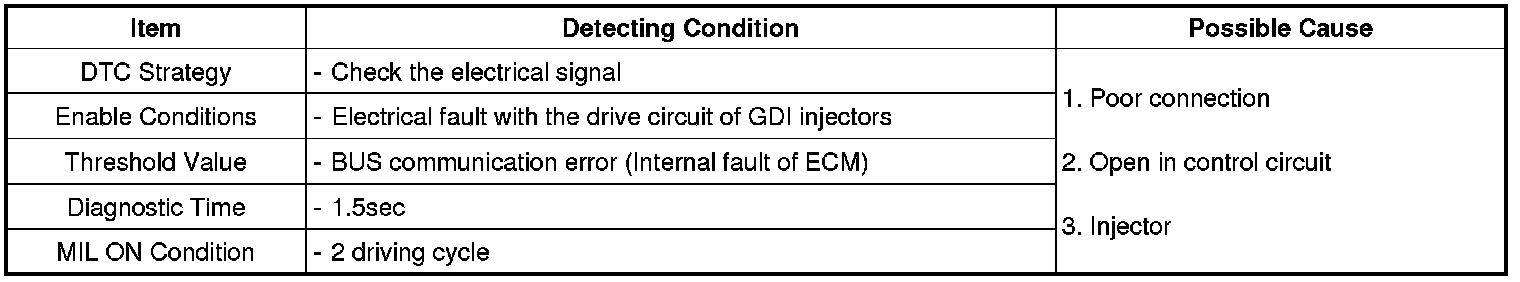

DTC Detecting Condition





Diagnostic Circuit Diagram





Signal Waveform & Data




Fig.1) Normal waveform of ING at idle.
