Component Inspection

Engine Control
P0558 Brake Booster Pressure Sensor Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

Visual Inspection
1. Check installation status of BVS and Vacuum hose or damage of vacuum hose.
Check operating condition of BVS
1. Connect GDS to DLC(Data Link Cable).
2. ENG "ON"
3. Check BVS output with Brake pedal ON and OFF.

Specification :Refer to Monitor GDS Data

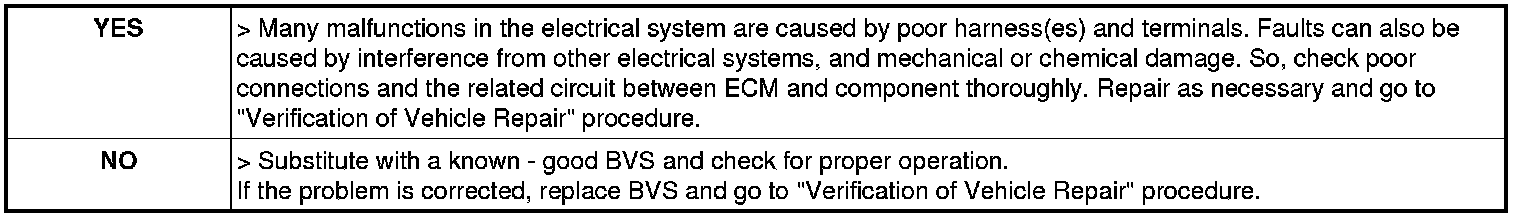

4. Is the "BVS" parameter displayed correctly?
