W/Harness Inspection

Engine Control
P0447 Evaporative Emission System-Vent Control Circuit Open - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal connections.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Check Open or Short in power circuit

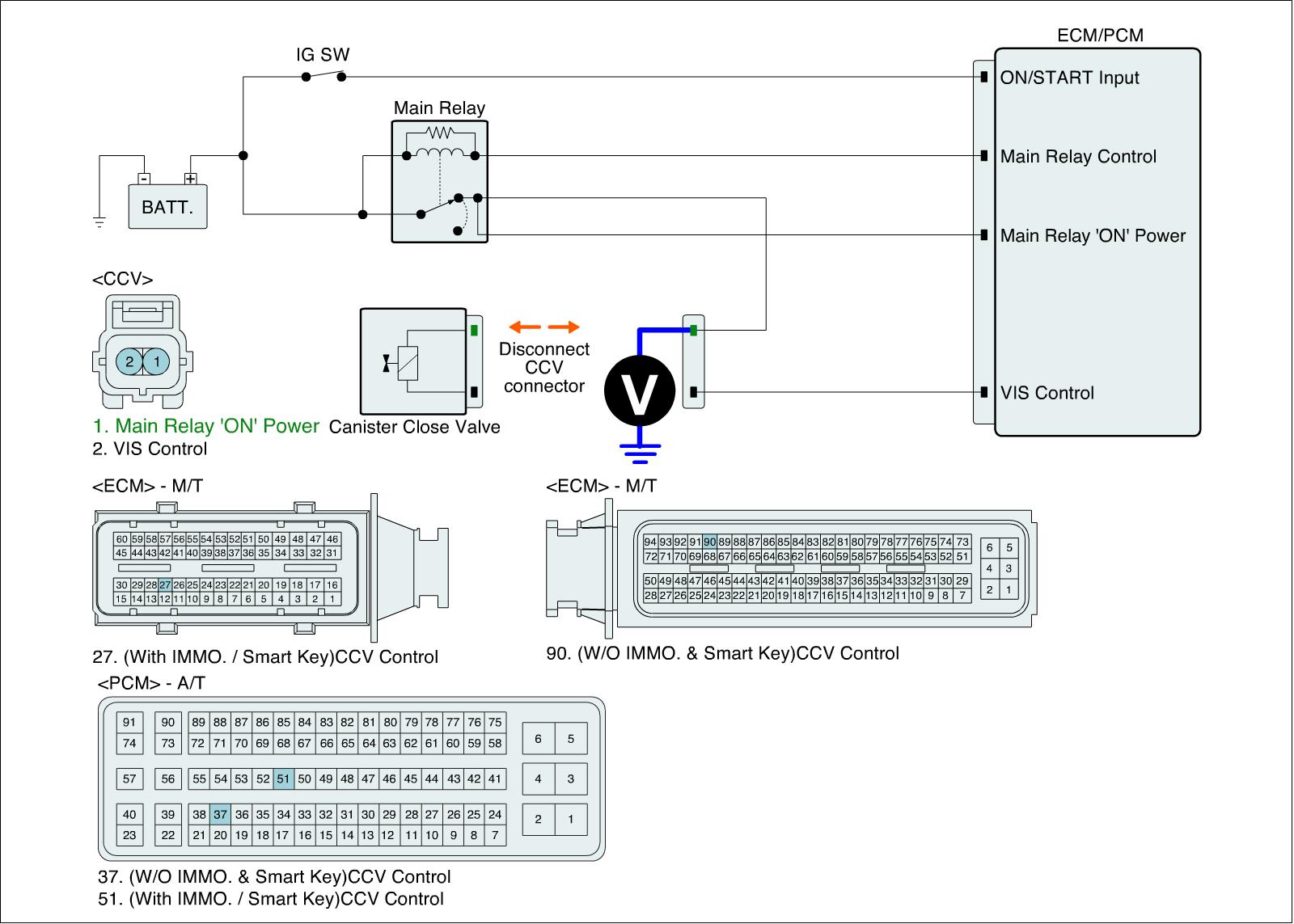

1. IG "OFF" and disconnect CCV connector.
2. IG "ON".
3. Measure voltage between power terminal of CCV harness connector and chassis ground.

Specification :B+

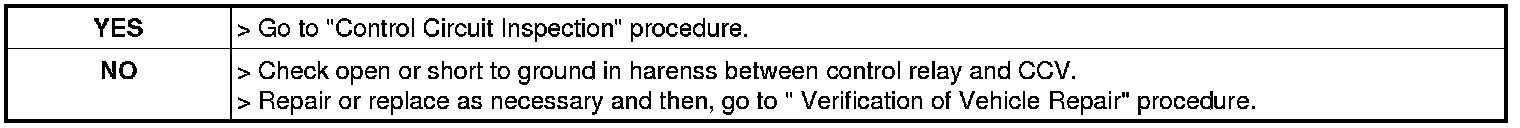

4. Is the measured voltage within specification ?






Control Circuit Inspection

Check Open or Short in control circuit
1. IG "OFF" and disconnect CCV connector.
2. IG "ON".
3. Measure voltage between control terminal of CCV harness connector and chassis ground.

Specification :Approx. 3.5V




4. Is the measured voltage within specification ?
